User Manual
Model: DGAFNT32, DGAFNT32S
Description:

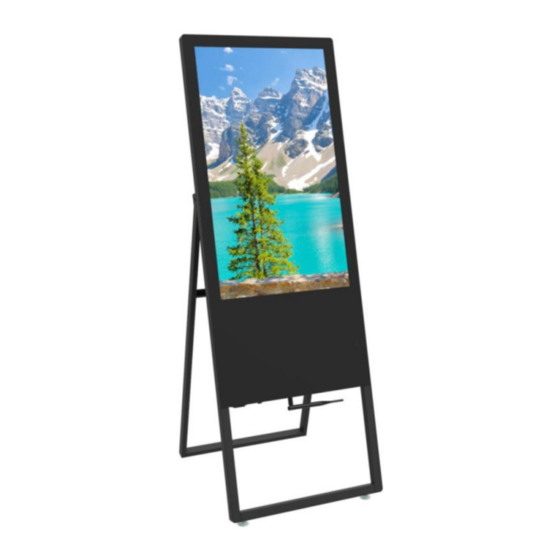

32" Indoor A-Frame Digital Sign
Scan QR code to visit the product page:
Operating Instructions for Digital Signage
Note: Before using the product, please read the instructions carefully!
Do not attempt to disassemble this product. If the product does not work properly, please call our
Customer Service Department at 1-844-221-3393.
1
Displays2go
Rev. 02/22/19
Advertisement
Table of Contents
Related Manuals for Displays2go DGAFNT32S
Summary of Contents for Displays2go DGAFNT32S
- Page 1 User Manual Model: DGAFNT32, DGAFNT32S Description: 32” Indoor A-Frame Digital Sign Scan QR code to visit the product page: Operating Instructions for Digital Signage Note: Before using the product, please read the instructions carefully! Do not attempt to disassemble this product. If the product does not work properly, please call our Customer Service Department at 1-844-221-3393.
-
Page 2: Table Of Contents
How to Upload Media Files ……………………………………………………………………………………………………11 How to Delete Media Files………………………………………………………………………………………………………16 Factory Reset……………………………………………………………………………………………………………………………18 Screen Rotate………..…………………………………………………………………………………………………………………18 Choose System Language…..…….………………………………………………………………………………………………19 Technical Specifications……………………………………………………………………………………………………………20 Troubleshooting………………………………………………………………………………………………………………………22 Cleaning and Maintenance………………………………………………………………………………………………………24 Names and Contents of Toxic and Hazardous Substances or Elements in the Product………………25 Displays2go Rev. 02/22/19... -
Page 3: Features
Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage from Displays2go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. - Page 4 Do not use the Digital Signage in stormy weather, especially when there is lightning; instead, please disconnect the power and antenna plugs to avoid lightning strike. Do not disassemble the Digital Signage without permission, or else it may cause electric shock or fire. Please ask qualified technician for repair. Displays2go Rev. 02/22/19...
-
Page 5: Assembly And Connection
The unit is class-A product, which may cause radio interference in living environment. In this case, please take feasible measures, and use power plug as the disconnection device. Displays2go Rev. 02/22/19... -
Page 6: Interfaces
2. Remove the unit shown in Fig 3 and place it on the ground (avoid scratches)(Fig 4)； 3. Open the bottom bracket to make the machine stand up, as shown in Fig 5. (Fig. 1) (Fig. 2) (Fig. 3) (Fig. 4) (Fig. 5) Displays2go Rev. 02/22/19... -
Page 7: Remote Control
Remark: The real appearance of the remote Turn down the volume control may be different from the picture, please HDMI Select HDMI device as the source refer to the actual product. Select VGA device as the source Back Displays2go Rev. 02/22/19... -
Page 8: Description Of Basic Operation
In power on state, enter “System Assistant” and press the “ ” button on the remote control, and the Digital Signage enters standby state. About Launch Desktop Description of Desktop Icons Icon Function Main applications Back Home page Background applications Sound - Sound + Displays2go Rev. 02/22/19... -
Page 9: Description Of Wallpaper Switch
2. Click the “Explorer” icon in the “APPS” menu interface (Fig. 2) and enter “Explorer” menu (Fig. 3); 3. Click options in the “Explorer” menu to read the files from different devices. Fig. 1 Fig. 2 Fig. 3 Displays2go Rev. 02/22/19... -
Page 10: Local Settings
Description of Settings Interface (shown on the right) Icon Function WIFI switch Data usage Bluetooth Sound & notification Battery saver HDMI Display Storage Apps Screenshot Setting Location Accounts Backup & reset Security Language & input Date & time Printing Accessibility About device Displays2go Rev. 02/22/19... -
Page 11: Status Of Menu Bar
3. Step3: At the display setting menu unselect the display navigation check box Fig. 1 Fig. 2 Fig. 3 Slide Show APP Introduction How to upload media files : Step 1: Open the Android launcher screen and click the explorer app Displays2go Rev. 02/22/19... - Page 12 Step 3: At the USB storage menu select Multi and then highlight the media files which you want to copy to the media folder. Click the Editor button, the pop menu will show then click the Copy Displays2go Rev. 02/22/19...
- Page 13 Step 4: Click HOME button and go to the NAND FLASH menu. Select MediaFolder and then open the Images Folder. Displays2go Rev. 02/22/19...
- Page 14 Then click the Paste command button. The files will be copied to the images folder. Step 6: Exit the Explorer app and go to the launcher screen. Run the Slide Show app to display the media files Displays2go Rev. 02/22/19...
- Page 15 Step 7: Select the time you would like each picture to be on the screen for by dragging the bar to the desired time. Select how you would like the images to display. Select the desired transition effect between pictures. Step 8: Select Play and your slide show will begin playing Displays2go Rev. 02/22/19...
-
Page 16: How To Delete Media Files
How to Delete the media files : Step 1: Open the Android launcher screen and click the explorer app Step 2: Click home button and go to the NAND FLASH menu you will see the MediaFolder open it Displays2go Rev. 02/22/19... - Page 17 Step 3: At the Image or Video folder select the media files which you want to delete. Then click the edit button at the top of the screen, the pop menu will show. Then click the Delete command button and the files will be deleted. Displays2go Rev. 02/22/19...
-
Page 18: Factory Reset
” in the Home page to enter the “APPS” menu interface (Fig. 1) 2. Step 2: Click “System aide” into Fig. 2 3. Step 3: Choose the degree you would like to Rotate screen, then click “Confirm”, after a moment, the screen will be rotated (Fig. 3) Displays2go Rev. 02/22/19... -
Page 19: Choose System Language
Choose System Language: 1. Step 1: Get into Settings, then click “Language & input” (Fig. 1) 2. Step 2: Click “Language”, then you can choose the system language accordingly (Fig. 2) Displays2go Rev. 02/22/19... -
Page 20: Technical Specifications
Standby Power (Watt) Operating Temperature (°C) 0~40°C Storage Temperature (°C) -10~60°C Environment Storage Humidity 10~60% RH Non-condensing Operating Humidity 20~85% RH Non-condensing Maximum Operating Time (hrs/day) 18 hours Operating System Android 5.1.1 Processor RK3288, quad-core Functions Built-in Memory Displays2go Rev. 02/22/19... - Page 21 Support download and installation Ethernet 1 (RJ45) HDMI I/O Interfaces Audio Out USB 2.0 Net Weight 16.5kg Gross Weight 26kg Unit Dimensions (W*D*H) 449*56*1334mm Structure Package Dimensions (W*D*H) 635*208*1510mm Shell Material Aluminum profile/sheet metal Shell Color Silver/black Language English/Simplified Chinese Displays2go Rev. 02/22/19...
-
Page 22: Troubleshooting
Stand within 1 foot of the front of the unit and point the remote directly at the sensor (green dot) ❖ If all of the above have been checked and the issue is not resolved, contact a customer service representative. Displays2go Rev. 02/22/19... - Page 23 Having problems Did you purchase the □ If you purchased DisplayIt!Xpress software with installing DisplayIt!Xpress software from from Displays2go or from Best Wave directly, software or getting Displays2go? please contact Best Wave at ➢ content to play Did the customer purchase or support@bestwave.
-
Page 24: Cleaning And Maintenance
4. Clean screen and product by using a glass cleaner. 5. If the product will be not used for a long time, pull out the power cord to prevent the internal short circuit or other potential dangers. Displays2go Rev. 02/22/19... -
Page 25: Names And Contents Of Toxic And Hazardous Substances Or Elements In The Product
To protect the earth, if you do not need this product or its service life expires, please abide by your local Waste Electrical and Electronic Products Recycling and Disposal Regulations or send it to qualified local manufacture for recycling. This Manual is for reference only and is subject to change without prior notice. Displays2go Rev. 02/22/19...
