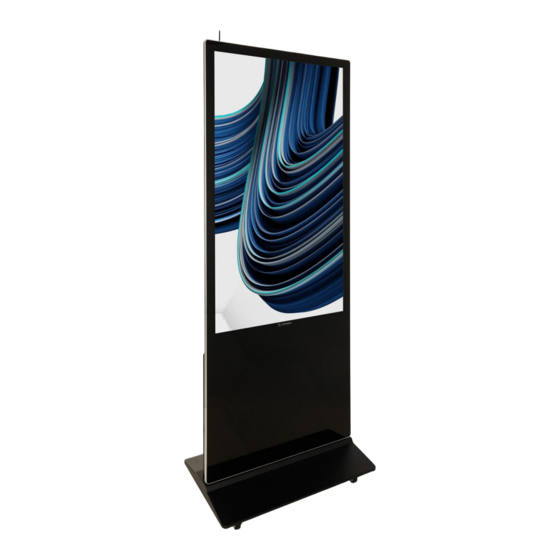

55" Floor
Standing
LCD Digital
Signage with
Android 11 OS
U S E R M A N U A L
SKU: DF055TLB, IR Touch, Black
SKU: DF055TLB, IR Touch, White
SKU: DF055NLB, Non-Touch, Black
SKU: DF055NLB, Non-Touch, White
SKU: DF055NLBS, Non-Touch Deluxe
FCC ID: 2ASCB- DF055NLB
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes/modifications to this equipment not approved by the party responsible for compliance could void the user's
authority to operate the equipment.
V1.3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Displays2go DF055TLB
Summary of Contents for Displays2go DF055TLB
- Page 1 Standing LCD Digital Signage with Android 11 OS U S E R M A N U A L SKU: DF055TLB, IR Touch, Black SKU: DF055TLB, IR Touch, White SKU: DF055NLB, Non-Touch, Black SKU: DF055NLB, Non-Touch, White SKU: DF055NLBS, Non-Touch Deluxe V1.3...
- Page 2 Thank you for purchasing this product from Displays2go. It’s our mission to help you connect with the world and build your brand with products that are personalized to your needs. Your product has been manufactured with great care using only the finest quality materials and expert workmanship.
-
Page 3: Table Of Contents
TA B L E O F C O N T E N TS BEFORE USE Safety and Warnings Packing List Dimensions Assembly OPERATION Power On/Off Interface Diagram HDMI Connection Remote Control Settings Android Quick Start Guide EnergyStar® Energy Save Mode DiViEX Add Media to USB DiViEX App Settings REFERENCE... -
Page 4: Before Use
B E F O R E U S E Safety Warnings and Precautions Thank you for purchasing the high-performance digital signage from Displays2go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. - Page 5 WARNING • Cut off the power supply before connecting or disconnecting any cables. • Do not place the Digital Signage on any instable positions, or else it may be damaged or cause fire. • Do not place the Digital Signage in the positions such as: •...
- Page 6 The technical specifications printed herein and on the packaging are subject to change without prior notice. The Manual may be slightly different from actual operation, and the latter is applicable. If you have any questions regarding our products, please visit us at www.displays2go.com or contact Displays2go customer service at 844-221-3388.
-
Page 7: Packing List
Packing List Name Quantity Name Quantity Cleaning Kit: Digital Signage Towel and Glove Remote Control Base screw package: Power Cord L-Shaped Wrench (x1) Hex Screws M10*30 (x8) Key Set Shim M10 (x8) Touch Pens (IR Touch Unit Only) Wheel screw package: Wi-Fi Antenna Cross screwdriver (x1) Cross head pad screw M6*12 (x16) -
Page 8: Assembly
Assembly NOTE: Two people required for safe assembly of product. U N PAC K I N G Open the top cover. Remove base from package Have 2 people carefully remove unit from the package. and carefully set aside. Set it down on the shipping box to avoid scratches. ASS E M B L I N G U N I T Flip base over. -
Page 9: Operation
O P E R AT I O N Power On/Off • Start up by inserting the power cord into unit and connecting to outlet. Flip power switch to ON. • Power on or off, press the power button on the remote control. •... -
Page 10: Remote Control
Remote Control Aim the remote control at the unit’s remote sensor, located at the right corner below the screen. For best performance, avoid exposing the receiver window to direct sunlight or placing objects between the remote control and the receiver. NOTE: For convenient navigation on non-touch units, we recommend connecting an external mouse. -
Page 11: Settings 1
Settings Once turned on, the unit automatically displays the home screen, which includes the navigation bar and the App Drawer. NOTE: The navigation bar can be minimized. To restore the navigation bar, swipe upwards from the bottom of the screen or go into Display settings and enable Display Navigation. -
Page 12: Energystar® Energy Save Mode
EnergyStar Energy Save Mode ® This 55” display offers an EnergyStar -rated certification. To increase energy efficiency, you must first enable Energy ® Saving Switch, which reduces the display’s standby power consumption. 1. Click the App Drawer to show all installed apps, then open the System Assistant app. -
Page 13: Diviex Add Media To Usb
DiViEX The DiViEX Slideshow App comes pre-installed on this digital product for convenient content management. There are 2 methods for uploading media: saving media files to internal storage, or creating a specific folder on a USB, then inserting into unit. After, open the app to launch a slideshow or adjust picture settings, add filters and stickers, queue music and more! UPLOAD MEDIA Supported File Formats... -
Page 14: Diviex App Settings
PLAYLIST SETTINGS Edit the overall playlist settings in the Settings tab. Once settings are adjusted, click PLAY or adjust further in the Edit or Music tab. Enable or disable automatic settings. A. AUTOMATIC SETTINGS Auto-Boot: Automatically launch DiViEX when unit is powered on Auto-Play: Automatically play slideshow when DiViEX opens B. - Page 15 EDIT Tweak each photo individually in the Edit tab. A. PHOTOS Images/Video thumbnails in sequential order. Drag to rearrange. B. EDIT TOOLS Crop, Add Text, Add Filter, Add Sticker, Add Frame This white bar shows tool options for each of the Edit tools. Choose aspect ratios C.
-
Page 16: Reference
R E F E R E N C E Technical Specifications LCD Size 55” Light Source LED backlight Resolution 1920 x 1080 (pixels) Brightness 500cd/m Contrast 1200: 1 Response 10ms PANEL Pixel Pitch 0.63 (H) x 0.63 (V) mm Refresh Rate 60Hz Viewing Angle 178°... -
Page 17: Cleaning And Maintenance
Wi-Fi Generation Wi-Fi 6 (Compatiable with Wi-Fi 5) Wi-Fi Frequency 5G, 2.4G Dual Band Wi-Fi Ethernet (RJ45) HDMI IN Headset INTERFACES 2.0 x2, 3.0 x1 Non-Touch: 136 lbs (62kg) Net Weight IR Touch: 143 lbs (65kg) Non-Touch: 165 lbs (75kg) Gross Weight IR Touch: 172 lbs (78kg) Non-Touch: 30”x 1.7”x 77”... -
Page 18: Troubleshooting Guide
Troubleshooting Guide ISSUE PROBABLE CAUSE SOLUTION • Check that the unit is plugged into wall outlet. • Unit not plugged into wall • Confirm that the power cord is connected to outlet the terminal on the back of the unit. •... - Page 19 APPS NOT is functioning. WORKING • Android board is defective • Contact Displays2go support. NOTE: Do not attempt to replace or repair circuitry yourself. Contact customer service to schedule a professional maintenance appointment. If all the potential solutions have been tested for a particular issue and problems have not been resolved, contact a customer service representative for guidance.
-
Page 20: Names And Contents Of Toxic And Hazardous
Names and Contents of Toxic and Hazardous Substances or Elements in the Product The table shows that the machine contains harmful substances inside. The data is provided by material suppliers and verified by the company according to the material type. Some materials contain harmful substances that can’t be replaced in present technology. -
Page 21: Fcc Compliance Notice
FCC Compliance Notice Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
