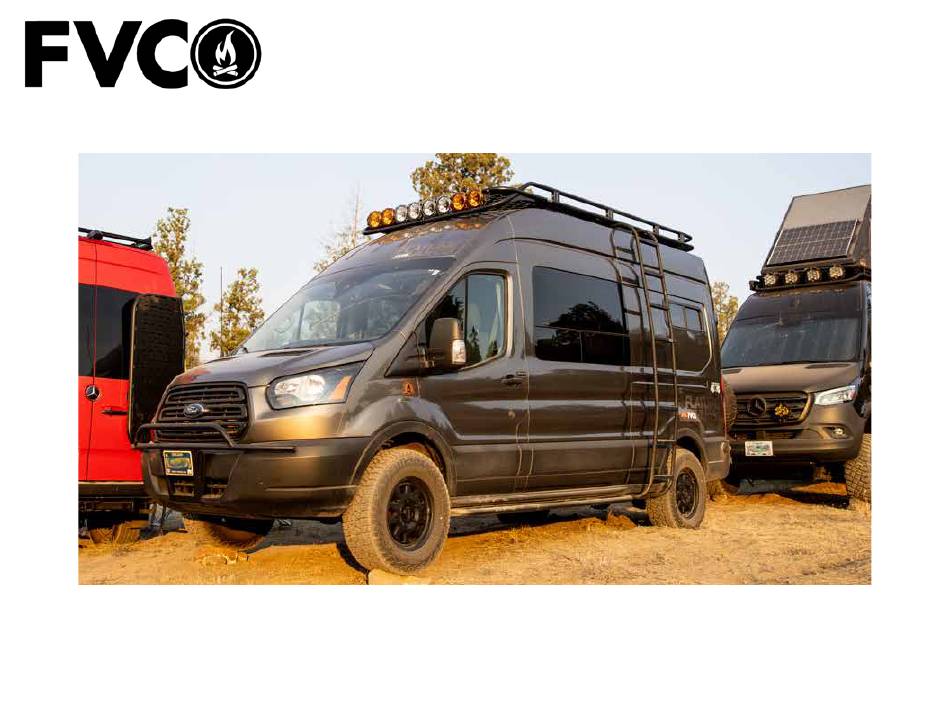

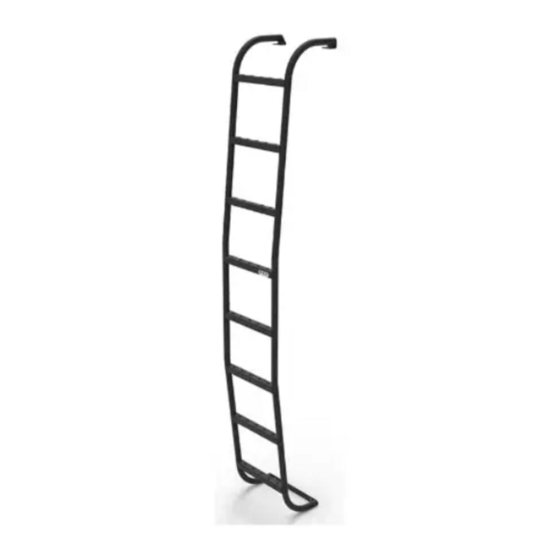

- Page 1 Installation Guide Transit Side Ladder HR TR0201B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW SIDE LADDER? HERE ARE A FEW THINGS TO DO TOOLS BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
-
Page 4: Package Contents
PACKAGE CONTENTS COUPLER MOUNT PLATE LADDER TOP LADDER BOTTOM QTY-2 QTY-1 QTY-1 QTY-1 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576... -
Page 5: Hardware Pack
HARDWARE PACK 3/8-16 X 1” BUTTON HEAD 3/8 FLAT WASHER 3/8-16 NYLOCK SCREW QTY-10 QTY-5 QTY-5 1/4-20 BUTTON HEAD SCREW 1/4 SELF DRILLING QTY-8 SCREW QTY-9 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576... -
Page 6: Let's Get Started
FIGURE 1 LET’S GET STARTED! PLACE THE LADDER HALVES FRONT SIDE DOWN, INSERT THE COUPLERS INTO ONE HALF (SEE FIGURE 1), AND TIGHTEN DOWN USING THE 1/4-20 SCREWS. SLIDE THE OTHER LADDER HALF ONTO THE COUPLERS AND TIGHTEN DOWN. NOTE- WE RECOMMEND YOU USE BLUE LOCTITE ON THE SCREWS. FIGURE 2 FLATLINE VAN CO •... - Page 7 NEXT, LOOSELY BOLT THE LADDER TO THE LADDER MOUNT SLOTS ON THE SIDE OF YOUR LOW PRO ROOF RACK USING TWO (2) EACH OF THE 3/8-16 BUTTON HEAD SCREWS, 3/8 FLAT WASHERS, AND 3/8 NYLOCK NUTS. YOU MAY NEED TO REMOVE TWO SETS OF FASTENERS ON THE JOINING PLATE OF YOUR ROOF RACK IF YOU HAVE AN OLDER VERSION OF OUR LOW PRO AS THEY SIT BEHIND THE LADDER PLATE ON OLDER VERSIONS.
- Page 8 MOUNT PLATE TAKE THE MOUNT PLATE (SEE RIGHT) AND LOOSELY ATTACH IT TO THE BOTTOM OF THE LADDER USING TWO 3/8-16 X 1” BUTTON HEAD SCREWS, 3/8 FLAT WASHERS, AND 3/8-16 NYLOCK NUTS. NEXT, TAKE THE REMAINING 3/8 HARDWARE AND ATTACH IT THROUGH THE WING OF THE MOUNT PLATE AND THE LOWER BODY SUPPORT OF YOUR VAN.
- Page 9 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
