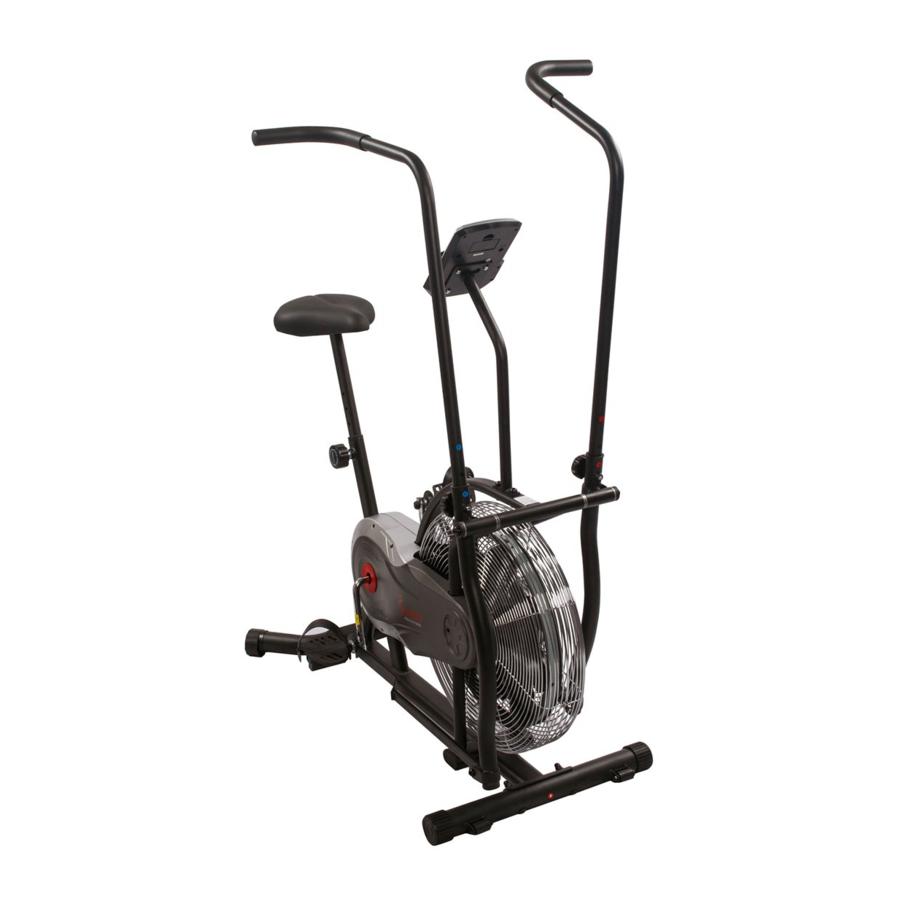

Sunny Health & Fitness ZEPHYR AIR BIKE SF-B2715 Manual

EXPLODED DIAGRAM

EXPLODED DIAGRAM

HARDWARE PACKAGE

PARTS LIST

No. Description Spec. Qty. No. Description Spec. Qty.
1 Main Frame 1 38 Washer Φ6*Φ12*1.2 1
2 Front Stabilizer 1 39 Cross Head Screw M6*8 5
3 Rear Stabilizer 1 40 Cross Head Screw M5*10 5
4 Left Handrail 1 41 Nylon Nut M5 5
5 Right Handrail 1 42 Hexagon Bolt M8*40 4
6 Left Foot Bar 1 43 Cross Head Tapping Screw ST4.2*19 7
7 Right Foot Bar 1 44 Circlip Φ10 4
8 Meter Post 1 45 Hexagonal Bolt M6*48 2
9

Right Handrail

Arm

 1 46 Nylon Nut M6 10
10 Left Handrail Arm 1 47 Eyebolt M6*40 4
11 Axle Sleeve 1 48 Hexagon Nut M10*P1*H8 4
12 Chain Pulley with Crank 1 49 Flat Washer Φ28*Φ10*δ2 2
13 Left Nylon Nut 1/2 1 50 Hexagon Bolt M10*18 2
14 Belt Pulley 1 51 Spring Washer d10 2
15 Gear 1 52 U Shape Bracket 4
16 Rotation Rod Φ15.8*342*M10*22 1 53 Right Nylon Nut 1/2 1
17 Bushing Φ28*Φ16*16 6 54 Movable Wheel 2
18 Plastic Bushing Φ32*1.5 2 55 Left Pedal 1
19 End Cap Φ50 2 56 Bushing Φ21*Φ17*Φ12.7 2
20 End Cap Φ50 2 57 Washer Φ34* Φ17.5*2.0 2
21 Bearing Φ12.8*Φ29*11 2 58 Bushing Φ18*Φ14*Φ10.1 4
22 Axle Φ10*142 1 59 Handrail Arm End Cap Φ25 6
23 Adjustment Knob Φ56*M16*1.5 1 60 Plug Φ32 2
24 Flywheel Φ415*77 1 61 Belt PJ370/J4 1
25 Axle Sleeve 1 62 Adjustment Knob M8*L36 2
26 Seat Post 1 63 Washer Φ28*Φ16*δ5 2
27 Seat Post Plastic Bushing 50*25*1.5 1 64 Computer 1
28 Seat 1 65 Needle Sensor Holder 1
29 Hexagon Bolt M8*50 2 66 Needle Sensor 1
30 Nylon Nut M8 9 67 Cross Countersunk Head Tapping Screw ST4.2*19 4
31 Flat Washer Φ16*Φ8*1.5 7 68 Handrail Arm Foam Grip 2
32 Hexagon Bolt M8*30 2 69 Flange Nut M10*P1.0 4
33 Bolt M8*62 4 70 Sensor L=500mm 1
34 Cap Nut M8 4 71 Corrugated Gasket Φ26* Φ16*δ0.3 2
35 Curve Washer Φ16 *Φ8*1.5 4 72 Cross Head Screw M5*10 4
36 End Cap 2 73 Left Cover 1
37 Cross Head Screw M6*12 1 74 Right Cover 1
75 Crank Cover Φ60 2 85 Hexagonal Bolt M6*20 4
76 Hexagon Flat 7/8" 1 86 Extension Wire 1 1
77 NutFlat Washer Φ35*2.0 1 87 Chain 1
78 Puller Bushing 15/16'' 1 88 Right Pedal 1
79 Bearing Φ44.5 2 89 Spanner S13-17-19 1
80 Bearing Housing Φ55.6*16 2 90 Spanner S13-14-15 1
81 Flat Washer Φ40*Φ24*2.8 1 91 Allen Wrench S6 2
82 Left Cover for 1 92 Extension Wire 2 1
83 FlywheelRight Cover for 1 93 Spring Washer D6 4
84 FlywheelBearing 6000Z 4 94 Spacer Φ34*Φ28.6*4.5 2

Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)
✓ The part number found on the "EXPLODED DIAGRAM" and "PARTS LIST" (found near the front of the manual)
Please contact us at support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

ASSEMBLY INSTRUCTIONS

We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

  1. Attach the Front & Rear Stabilizers (No. 2 & No. 3) onto the Main Frame (No. 1) with 4 Cap Nuts (No. 34), 4 Curve Washers (No. 35), and 4 Bolts (No. 33). Tighten with the Spanner (No. 89).
    ASSEMBLY INSTRUCTIONS - Step 1
  2. Remove 2 Hexagon Bolts (No. 50), 2 Spring Washers (No. 51), 2 Flat Washers (No. 49), 2 Washers (No. 63), and 2 Corrugated Gasket (No. 71) from the Rotation Rod (No. 16) with 2 Allen Wrenches (No. 91)
    Insert the Rotation Rod (No. 16) into the torque tube of the Main Frame (No. 1) with 2 Corrugated Gasket (No. 71) that were removed. Attach Left & Right Handrails (No. 4 & No. 5) onto the Rotation Rod (No. 16) using 2 Hexagon Bolts (No. 50), 2 Spring Washers (No. 51), 2 Flat Washers (No. 49), and 2 Washers (No. 63) that were removed. Tighten with 2 Allen Wrenches (No. 91).
    We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
    ASSEMBLY INSTRUCTIONS - Step 2
  3. Remove 2 Left & Right Nylon Nuts (No. 13 & No. 53), 2 Washers (No. 57), and 2 Spacers (No. 94) from the Left & Right Pedals (No. 55 & No. 88) usingSpanner (No. 89) and Spanner (No. 90).
    Insert the Right Pedal (No. 88) into Right Foot Bar (No. 7), 1 Spacer (No. 94) and 1 Washer (No. 57), then attach those parts into the right side of Chain Pulley with Crank (No. 12). Turn the Right Pedal (No. 88) clockwise as tightly as you can with your hands, then use Spanner (No. 90) to tighten securely. Use Spanner (No. 90) to hold the bolt for the pedal in place then use Spanner (No. 89) to screw Right Nylon Nut (No. 53) counter-clockwise onto the thread end of the Right Pedal (No. 88).
    Insert the Left Pedal (No. 55) into Left Foot Bar (No. 6), 1 Spacer (No. 94), and 1 Washer (No. 57), then attach those parts into the left side of Chain Pulley with Crank (No. 12). Turn the Left Pedal (No. 55) counter-clockwise as tightly as you can with your hands, then use Spanner (No. 90) to tighten securely. Use Spanner (No. 90) to hold the bolt for the pedal in place, then use Spanner (No. 89) to screw Left Nylon Nut (No. 13) clockwise onto the thread end of the Left Pedal (No. 55).
    ASSEMBLY INSTRUCTIONS - Step 3
  4. Loosen and remove Adjustment Knob (No. 62) from the Right Handrail (No. 5). Insert the Right Handrail Arm (No. 9) into the Right Handrail (No. 5). Adjust the Right Handrail Arm (No. 9) to the desired position, then secure it in place by reinserting and tightening the Adjustment Knob (No. 62).
    Loosen and remove Adjustment Knob (No. 62) from the Left Handrail (No. 4). Insert the Left Handrail Arm (No. 10) into the Left Handrail (No. 4). Adjust the Left Handrail Arm (No. 10) to the desired position, then secure it in place by reinserting and tightening the Adjustment Knob (No. 62).
    ASSEMBLY INSTRUCTIONS - Step 4
  5. Remove 3 Flat Washers (No. 31) and 3 Nylon Nuts (No. 30) from the Seat (No. 28) using Spanner (No. 90).
    Pull out the Seat Post (No. 26) fromMain Frame (No. 1). Then, attach the Seat (No. 28) to the Seat Post (No. 26) using 3 Flat Washers (No. 31) and 3 Nylon Nuts (No. 30) that were removed. Tighten with Spanner (No. 90).
    Take out the Adjustment Knob (No. 23) from the plastic bag for the manual. Then insert the Seat Post (No. 26) into the Main Frame (No. 1) using Adjustment Knob (No. 23).
    ASSEMBLY INSTRUCTIONS - Step 5
  6. Take out 2 AAA batteries from the computer box. Attach the batteries into the back of Computer (No. 64). Remove 4 Cross Head Screws (No. 72) from the back of the Computer (No. 64) using Spanner (No. 90). Connect the Extension Wire 1 (No. 86), which comes from the top end of Meter Post (No. 8), with the link wire of Computer (No. 64). Once the wires are connected, insert them into Meter Post (No. 8).
    Attach the Computer (No. 64) onto the top end of Meter Post (No. 8) using 4 Cross Head Screws (No. 72) that were removed.
    Tighten with Spanner (No. 90).
    NOTE: please be carefule not to pinch or puncture the wires when assembling.
    Remove 2 Flat Washers (No. 31) and 2 Hexagon Bolts (No. 32) from the Main Frame (No. 1) with Allen Wrench (No. 91).
    Connect the Extension Wire 1 (No. 86), which comes from the bottom end of Meter Post (No. 8), with Extension Wire 2 (No. 92). Once the wires are connected, insert them into Meter Post (No. 8). Attach the Meter Post (No. 8) onto the Main Frame (No. 1) with 2 Flat Washers (No. 31) and 2 Hexagon Bolts (No. 32) that were removed. Tighten with Allen Wrench (No. 91).
    NOTE: please be carefule not to pinch or puncture the wires when assembling. The assembly is complete!
    ASSEMBLY INSTRUCTIONS - Step 6

MAINTENANCE & ADJUSTMENT GUIDE

ADJUSTING THE SEAT HEIGHT
Turn the Adjustment Knob (No. 23) counter-clockwise to release Seat Post (No. 26) and then slide the Seat Post (No. 26) up or down for a suitable height. Lock the Seat Post (No. 26) in place by tightening the Adjustment Knob (No. 23) clockwise.

ADJUSTING THE HANDRAIL ARMS HEIGHT
Turn the Adjustment Knobs (No. 62) counter-clockwise to release the Right & Left Handrail Arms (No. 9 & No. 10) and then slide the Right & Left Handrail Arm (No. 9 & No. 10) up or down for a suitable height. Lock the Right & Left Handrail Arm (No. 9 & No. 10) in place by tightening the Adjustment Knobs (No. 62) clockwise.
MOVING THE AIR BIKE MOVING THE AIR BIKE
To move the air bike, hold the Right & Left Handrail Arm (No. 9 & No. 10) and tilt the air bike until the movable wheels on the Front Stabilizer (No. 2) touch the ground. With the wheels on the ground, you can transport the air bike to the desired location with ease.
ADJUSTING THE BALANCE
To achieve a smooth and comfortable ride, you must ensure that the stability of the air bike is secured. If you notice that the air bike is unbalanced during use, adjust the End Caps (No. 20) located on the Rear Stabilizer (No. 3) until the air bike becomes level with the floor surface.
CLEANING
The air bike can be cleaned with a soft, clean, and damp cloth. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the air bike after each use. Be careful not get excessive moisture on the computer display panel as this might cause electrical hazards or electronics failure.
Please keep the air bike, especially the computer out of direct sunlight to prevent screen damage.
Please inspect all assembly bolts and pedals on the air bike for proper tightness every week.
STORAGE
Store the air bike in a clean and dry environment away from children.

TROUBLESHOOTING

PROBLEM SOLUTION

There is no display on the computer
  1. Remove the computer and verify the wire that comes from the computer is properly connected to the wire that comes from the meter post.
  2. Check if the batteries are correctly positioned and battery springs are in proper contact with batteries.
  3. The batteries in the computer may be unresponsive. If this occurs, change the batteries.

The air bike wobbles when in use

 Turn the end caps on the rear stabilizer as needed to level the air bike.

The air bike makes a squeaking noise when in use

 The bolts may have become loose on the air bike. Please inspect all the bolts and tighten any loose bolts.

EXERCISE COMPUTER

FUNCTION BUTTONS:

MODE: Press the button to select TIME, DISTANCE, and CAL to preset. Press the button for selection function display value on LCD or enter after setting. Press the button and hold for 3 seconds to reset all values except odometer to zero. (When the user replaces the batteries, all the values will reset to ZERO automatically).
SET: To set up the target value of TIME, DISTANCE, and CAL. Press the button and hold for 2 seconds to speed up the increment.
RESET: Press the button to reset function value when setting.
Press the button and hold for 3 seconds to reset all value except odometer to zero (When the user replaces batteries, all the values will reset to ZERO automatically).

FUNCTIONS & OPERATIONS:

  1. BATTERY INSTALLATION: Please install 2 AAA 1.5V batteries in the battery case on the back of computer. (Whenever batteries are removed, all the function values will be reset to zero.)
  2. AUTO ON/OFF: Once the user begins to exercise, the computer will show the workout value automatically. After about 4 minutes of inactivity, the computer will turn off. Odometer value does not reset to 0 when the computer turns off. When the user starts to exercise again, the workout value of odometer will accumulate continuously.
  3. AUTO SCAN: After the computer is powered on, press the Mode key, the LCD will display all functions values from TIME-SPEED-DISTANCE-CALORIES-ODOMETER. Each value will be held for 6 seconds.
  4. SPEED: Displays the current training speed from 0.0 to 99.9 MP/H (Miles per hour).
  5. DISTANCE: Accumulates total distance from 0.00 up to 9999. The user may preset target distance by pressing the SET & MODE button. Each increment is 0.1 M (Miles). Automatically counts down from targeting value during exercise.
  6. TIME: Accumulates total time from 00:00 up to 99:59. The user may preset target time by pressing SET & MODE button. Each increment is 1 minute. Automatically count down from targeting value during exercise.
  7. CALORIES: Accumulates calories burned during training from 0.0 to 9999. The user may also preset the target calorie before training by pressing the SET & MODE button. Each setting increase is 1 cal. Automatically counts down from targeting value during exercise.
    Note: This data is a rough guide which cannot be used in medical treatment.
  8. ODOMETER: Displays the total accumulated distance from 0.0 to 9999. User can also press mode key to display the odometer value.
  9. RESET: Press the button and hold for 2 seconds to reset all value except odometer to zero.

NOTE:

  1. If the computer display is abnormal, please re-install the new batteries and try again. Always change both batteries at the same time. Do not mix battery types and do not mix old and new batteries.
  2. Battery Spec: 1.5V UM-4 or AAA (2PCS).
  3. Dispose of the batteries safely, according to your state and regional guidelines.

IMPORTANT SAFETY INFORMATION

To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

  1. Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Your physician's advice is essential if you are taking medication that affects your heart rate, blood pressure, or cholesterol level.
  2. Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do experience any of these conditions, you should consult your physician before continuing with your exercise program.
  3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
  4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
    To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
  5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
  6. Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the equipment during exercise, discontinue use of the equipment immediately and do not use until the problem has been rectified.
  7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become entangled in the equipment.
  8. Do not place fingers or objects into the moving parts of the equipment.
  9. The maximum weight capacity of this unit is 240 pounds (110 kg).
  10. The equipment is not suitable for therapeutic use.
  11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are required.
  12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
  13. This equipment is designed for indoor and home use only; it is not intended for commercial use.

The bike is not intended to be used standing up. Please remain seated with your feet on the pedals.


Please retain owner's manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
