Sunny Health & Fitness SF-B2883 User Manual

Hide thumbs Also See for SF-B2883:

Advertisement

Table of Contents

PROGRAMMABLE UPRIGHT BIKE
SF-B2883
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US:
support@sunnyhealthfitness.com
or 1-877-90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-B2883 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny Health & Fitness SF-B2883

Summary of Contents for Sunny Health & Fitness SF-B2883

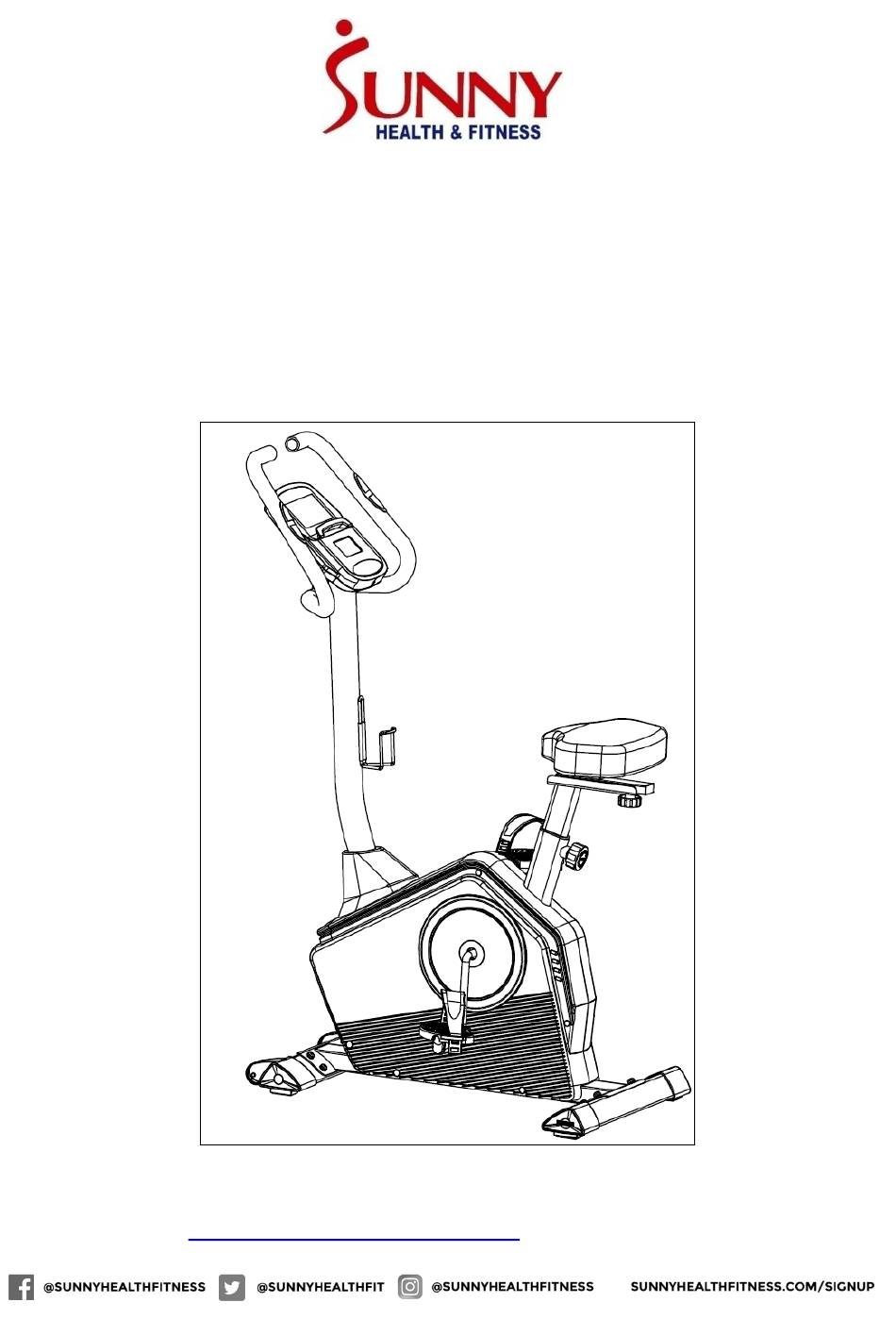

  • Page 1 PROGRAMMABLE UPRIGHT BIKE SF-B2883 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.

  • Page 4: Exploded Diagram

    EXPLODED DIAGRAM 1...

  • Page 5: Hardware Package

    EXPLODED DIAGRAM 2 HARDWARE PACKAGE #19 1PC #37 D8xФ22x2 1PC #76 S13,14,15 1PC #30 1PC #75 S6 1PC Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ...

  • Page 6: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Idler Wheel Rear Stabilizer Idler Wheel Linkage Trunk Wire Motor Pulse Wire Belt Pulley Square Cap 44L/R Chain Cover 1 pr. U Shape Bracket Crank Cover Handlebar D8xФ16x1.5 Flat Washer Washer Cross Pan Head ST4.2x18...
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669) . STEP 1: Remove 8 Hex Pan Head Screws (No. 14), 8 Spring Washers (No. 15), 8 Flat Washers (No.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact support@sunnyhealthfitness.com 1-877-90SUNNY (877-907-8669). STEP 3: Remove 4 Hex Pan Head Screws (No. 14), 4 Spring Washers (No. 15) and 4 Arc Washers (No. 13) from the Main Frame (No.
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669) . STEP 5: Remove 4 Cross Pan Head Screws (No. 28) from the Meter (No. 17) with Spanner (No.
  • Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669) . STEP 6: Remove 2 Hex Socket Head Bolts (No. 23) and 2 Spring Washers (No. 15) from the Handlebar Post (No.

  • Page 11: Adjustment Guide

    ADJUSTMENT GUIDE ADJUSTING THE LEVEL If the bike is not level, turn the dials on the Rear End Caps (No. 26L/R) to adjust. Turn counter-clockwise to raise, and turn clockwise to lower. ADJUSTING THE SEAT The Seat (No. 32) of this bike is fully adjustable as it moves Up, Down, Fore (forward), Aft (backward).

  • Page 12: Important Electrical Information

    IMPORTANT ELECTRICAL INFORMATION WARNING: The Programmable Upright Bike requires a power source of 1 amps (100-240V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the equipment. Any power source above or below this level could cause significant damage to the equipment and or user.

  • Page 13: Workout Parameters

    FUNCTIONS: SPEED: Displays current training speed. Maximum speed is 99.9 mile/h. RPM: Displays current rotation per minute. TIME: Accumulates the workout time from 00:00 to 99:59. Users can preset the target time they want. DIST: Accumulates the workout distance from 0.00 up to 999.9 miles. Users can preset the target distance they want to reach.

  • Page 14: Program Operation

    PROGRAM OPERATION: Manual (P1) Program profile SETTING PARAMETERS FOR MANUAL PROGRAM 1. Select Manual Program (P1) using the UP or DOWN button, then press ENTER. 2. TIME will flash so the value can be adjusted using the UP or DOWN button. 3.
  • Page 15 There are 12 pre-set programs ready for use. All program profiles have 16 levels of resistance. SETTING PARAMETERS FOR PRE- SET PROGRAMS 1. Select one of the Pre-set Programs using the UP or DOWN button, then press ENTER. TIME will flash so the value can be adjusted using the UP or DOWN key. 2.
  • Page 16 BODY FAT Program (P15) Program profile SETTING DATA FOR BODY FAT Select BODY FAT Program (P15) using the UP or DOWN button, then press ENTER. “MALE” will flash so Gender can be adjusted using the UP or DOWN button. Press the ENTER button to save gender and move to the next data.
  • Page 17 4. Continue through all desired parameters, pressing START/STOP button to start workout. Note: If Pulse is above the set TARGET HR, the Pulse value will flash to remind the user. HEART RATE CONTROL Program (P17-P20) Program profile There are 4 selections for target pulse (HR): HRC - 55% TARGET HR= 55% of (220-AGE) HRC - 65%...
  • Page 18 User Program Program profile (P21-P24) The 4 user programs allow the user to set their own program that can be used immediately. SETTING PARAMETERS FOR USER PROGRAM 1. Select the User Program using the UP or DOWN button then press ENTER. 2.
