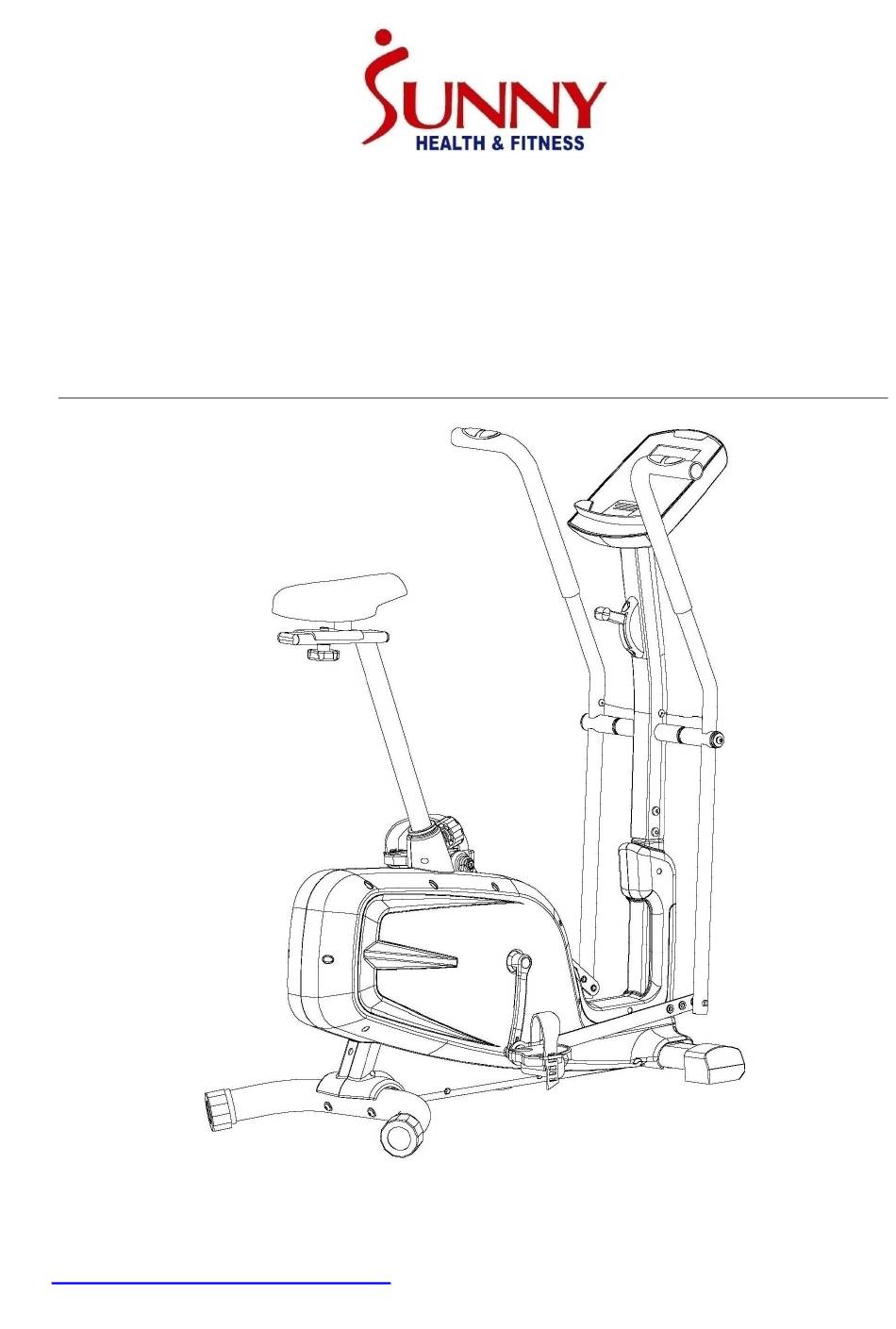

- Page 1 CROSS TRAINING MAGNETIC UPRIGHT BIKE SF-B2630 USER MANUAL IMPORTANT! Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
-
Page 2: Important Safety Notice
IMPORTANT SAFETY NOTICE Note the following precaution before assembling and operating the machine. 1. Assemble the machine exactly as described in the instruction manual. 2. Check all the bolts, nuts and other connections before using the machine for the first time to ensure the machine is in the safe condition. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM... - Page 5 HARDWARE DRAWING & TOOLS Most of the listed assembly hardware have been packaged separately, but some hardware parts have been preassembled. In these instances, simply remove and reinstall the hardware as required.
-
Page 6: Parts List
PARTS LIST DESCRIPTION DESCRIPTION Main frame Connecting bar Front stabilizer Foam grip Rear stabilizer Saddle slider Hex pan head screw Handlebar post M8*20 5L/R Handlebar 1pr. Spring washer D8 Saddle post Flat washer D8*Ф26*2 Saddle Pulse wire Computer Plastic axle sleeve 9 L/R Pedal (L/R) 1 pr. - Page 7 Belt Fly wheel axle Nylon nut M6 Fly wheel Spring washer D6 Bearing Flat washer D6 Cone thin nut M10x1 Belt pulley Hex bolt M5x60 Central axle Hex nut M5 Idler wheel connecting Hex screw M6x15 Baffle ring D12 Idler wheel Magnetic board Nylon nut M8 Magnetic board Axle...
-
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Step 1: Fix the Front Stabilizer (2) onto the Main Frame (1) with Hex Pan Head Screw (37), Spring Washers (15), Flat Washers (16). Fix the Rear Stabilizer (3) onto the Main Frame (1) with Hex Pan Head Screws (13), Spring Washers (15), Arc Washer (14). Step 2: A: Fix the Saddle (7) onto the Saddle Slider (29) with the spanner tool. - Page 9 Step 3: Adjust Tension Controller (21) to Level 8 before assembling. Connect the Extension Wire (19) with the Sensor Wire (18), and connect the Tension Cable (20) with the Tension Controller (21) as shown in A. Then fix the Handlebar Post (4) onto the Main Frame (1) with the Hex Pan Head Screws (17)、Arc Washers (14)、Flat Washers (16) and Spring Washers (15).
- Page 10 Step 4: A: Insert the Long Axle (35) into the Handlebar Post (4). Attach the left/right Handlebar (5L/R) to the Long Axle (35) tightly with Hex Pan Head Screw (30), Spring Washer (31), Flat Washer (32), and Wave Washer (38). Then connect the Pulse Wire (33) with Pulse Extension Wire (40).
- Page 11 Step 5: Connect the Extension Wire (19) and the Pulse Extension Wire (40) with the wires of the Computer (8) respectively, and then fasten the Computer (8) onto the computer bracket of the Handlebar Post (4) with the Cross Pan Head Screws (36) as shown. Assembly is now complete!
-
Page 12: Moving The Bike
Adjusting the Saddle To adjust the Saddle (7) forward or backward, loosen Knob (24). Move the Saddle Slider (29) to the desired position. Turn Knob (24) to tighten. To adjust the Saddle (7) up or down, loosen Pop-pin Knob (23). Pull the Pop-pin Knob (23) and move the Saddle Post (6) to the desired height. - Page 13 USING YOUR BIKE Using your bike will provide you with several benefits. It will improve your physical fitness, tone your muscles and in conjunction with a calorie controlled diet, help you lose weight. WARM-UP PHASE The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength-training or aerobic exercising.
- Page 14 EXERCISE MONITOR INSTRUCTION MANUAL SPECIFICATIONS: TIME (TMR) 00:00-99:59 SPEED (SPD) 0-99.9 MI/H DISTANCE (DIST) 0.00-999.9 MI CALORIES (CAL) 0.0-999.9 CAL ODOMETER (ODO) 0-9999 MI PULSE (P) 0, 40~240 BPM KEY FUNCTIONS: MODE: To select and set a function SET: To change the value for “TIME”, “DISTANCE”, “CALORIES’, “PULSE” CLEAR (RESET): To reset the value to zero OPERATING PROCEDURES 1.
