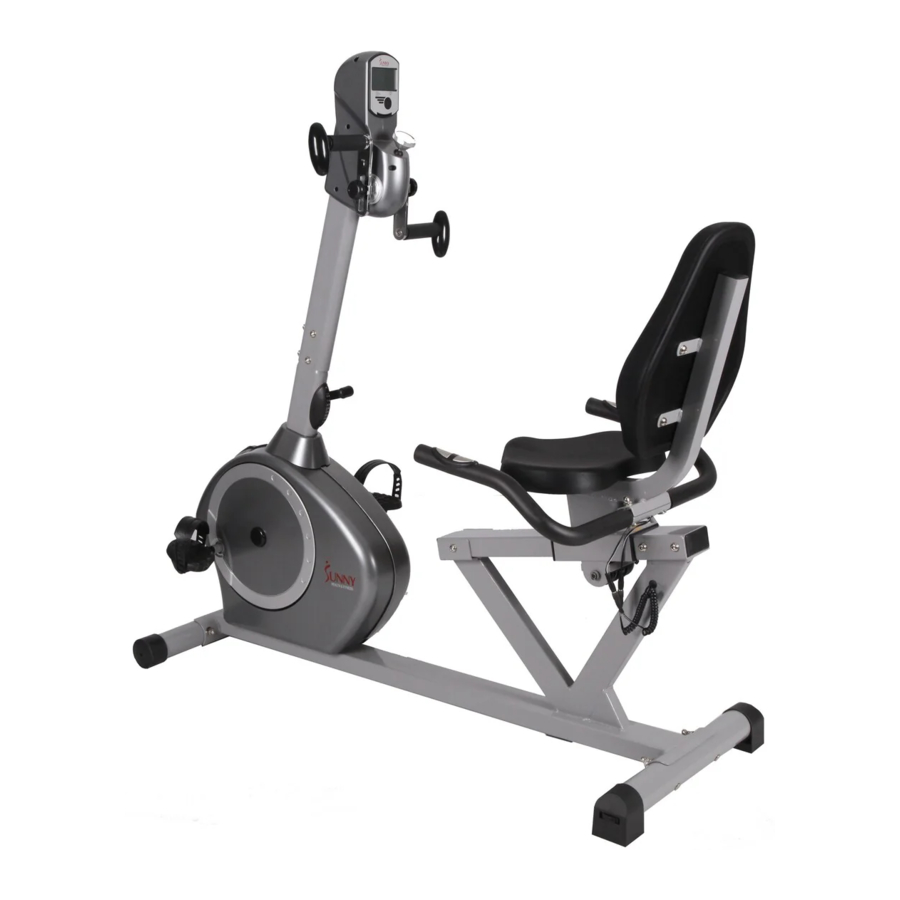

Sunny Health & Fitness SF-RB4631 Manual


Please retain owner's manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).


www.sunnyhealthfitness.com

IMPORTANT SAFETY INFORMATION

We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

  1. Before starting any exercise program you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk, or prevent you from using the equipment properly. Your physician's advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.
  2. Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do experience any of these conditions, you should consult your physician before continuing with your exercise program.
  3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
  4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 4 feet (1.2 M) of free space all around it.
  5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
  6. Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the equipment during exercise, discontinue use of the equipment immediately and do not use until the problem has been rectified.
  7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become entangled in the equipment.
  8. Do not place fingers or objects into the moving parts of the equipment.
  9. The maximum weight capacity of this unit is 350 pounds (160 KG).
  10. The equipment is not suitable for therapeutic use.
  11. Use caution when lifting and moving the equipment. Always use proper lifting technique and seek assistance if necessary.
  12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
  13. This equipment is designed for indoor and home use only! It is not intended for commercial use!

EXPLODED DIAGRAM

EXPLODED DIAGRAM

HARDWARE PACKAGE

Ordering Replacement Parts (U.S. and Canadian Customers only)

Please provide the following information in order for us to accurately identify the part(s) needed:

  • The model number (found on cover of manual)
  • The product name (found on cover of manual)
  • The part number found on the "EXPLODED DIAGRAM" and "PARTS LIST" (found near the front of the manual)

Please contact us at support@sunnyhealthfitness.com or 1-877–90SUNNY (877-907-8669).

PARTS LIST

No. Description Spec. Qty. No. Description Spec. Qty.
1 Main Frame 1 43 Sensor Wire 1
2 Seat Tube 1 44 Computer 1
3 Handlebar 1 45 Connecting Axle 1
4 Slide Rail 1 46 Pulse Sensor Wire 2 2
5 Handlebar Post 1 47 Square Plug 60*30*1.5 1
6 Front Stabilizer 1 48

Cross Pan Head

Self-Drilling Screw

ST4.2*18 23
7 Rear Stabilizer 1 49 Magnet Board Connection 1
8 Adjustment Handle 1 50

Cross Pan Head

Self-Drilling Screw

ST4.2*30 5
9 Square Neck Bolt M8*L73 4 51 Spring 1
10 Square Neck Bolt M8*L45 2 52 Magnet 8
11 Ball Cap Nut M8 6 53 Nut M6 2
12 Arc Washer Ф8.2*2*Ф19*R30 4 54 Nut M5 2
13 Arc Washer d8*R20 2 55 Hex Bolt M5*60 1
14 Hex Pan Head Screw M8*16 20 56 Hex Bolt M8*L60*120 1
15 Washer D8*1.5*Ф16 20 57 Nylon Nut M8 1
16 Spring Stop Collar D12 1 58 Flange Nut M10*1 2
17 Spring Stop Collar D10 1 59 Cone Thin Nut M10*1*H5 2
18 Eccentric Gear 1 60 Adjustable U Washer 2
19 Axle 1 61 Adjustable Screw 2
20 Small Alloy Bushing 1 62 Fly Wheel 1
21 Big Alloy Bushing 1 63 Fly Wheel Axle 1
22 Hex Socket Cap Screw M6*10 4 64 Middle Axle 1
23L/R Rotating Handle 1pr. 65 Flange Nut M10*1.25 2
24 U Shape Board 2 66 Spring Shield 1
25 Wheeled End Cap 2 67 Bearing 6003RZ 2
26 End Cap 2 68 Hex Socket Head Cap Screw M6*15 4
27L/R Pedal 1pr. 69 Nylon Nut M6 4
28 Adjustable Pad 1. 70 Spring Washer D6 4
29 Knob 2 71 Cross Pan Head Screw M5*12 2
30 Oval Handle 2 72L/R Belt Cover 1pr.
31 Foam Grip 2 73 Disc 2
32 Square Plug 38*38*1.5 2 74L/R Front Tube Cover 1pr.
33 Square Plug 80*40*2 2 75 Central Axle Spacer 2
34 Bushing 2 76 Big Belt Pulley 1
35 Upper Holder Block 1 77 Belt 1
36 Seat 1 78 Tension Controller 1
37 Backrest 1 79 Sensor 1
38 Guide Line Hole Plug 2 80 Nut Cap 2
39 Round Tube Plug 2 81 Small Belt Pulley 1
40L/R Crank 1pr. 82 Spanner S13-14-15 1
41 Pulse Wire 2 83 Allen Wrench S5 1
42 Pulse Sensor Wire 1 2 84 Allen Wrench S6 1

ASSEMBLY INSTRUCTIONS

We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

STEP 1
ASSEMBLY INSTRUCTIONS - Step 1
Attach the Front Stabilizer (No. 6) and the Rear Stabilizer (No. 7) to the Main Frame (No. 1) with the 4 Square Neck Bolts (No. 9)and 4 Ball Cap Nuts (No. 11), 4 Arc Washers (No. 12) using Spanner (No. 82).

STEP 2
ASSEMBLY INSTRUCTIONS - Step 2
Attach the Cranks (No. 40L/R) Pedals (No. 27L/R) using the Spanner to the ( No. 82).

information NOTE: Make sure to attach Right Pedal (No. 27R), marked (R), to the Right Crank (No. 40R) and should be tightened clockwise. Attach the Left Pedal (No. 27L), marked (L), to the Left Crank (No. 40L). It should be tightened counter-clockwise. Attaching the Pedals (No. 27L/R) to the wrong Cranks (No. 40L/R) or turning it the wrong direction can damage the Cranks (No. 40L/R).

STEP 3
ASSEMBLY INSTRUCTIONS - Step 3
First, remove the preassembled 6 Hex Pan Head Screws (No. 14), 2 Arc Washers (No. 13) and 4 Washers (No. 15) from the Main Frame (No. 1) using Allen Wrench (No. 84) . Then connect the 2 Pulse Sensor Wires 2 (No. 46) and Sensor Wire (No. 43) with the wires of the Computer (No. 44). Then attach the Handlebar Post (No. 5) to the Main Frame (No. 1) with the 6 Hex Pan Head Screws (No. 14), 2 Arc Washers (No. 13) and 4 Washers (No. 15) that were just removed. Tighten and secure with Allen Wrench (No. 84).

STEP 4
ASSEMBLY INSTRUCTIONS - Step 4
Attach the Rotating Handles (No. 23L/R) to the Connecting Axle (No. 45) with 2 Knobs (No. 29) and 2 U Shape Boards (No. 24).

information Note: You can adjust the position of the Rotating Handles (No. 23L/R) by loosening the 2 Knobs (No. 29), moving the Rotating Handles (No. 23L/R) to desired position, and then tightening the 2 Knobs (No. 29).

STEP 5
ASSEMBLY INSTRUCTIONS - Step 5
First, remove the preassembled 6 Hex Pan Head Screws (No. 14) and 6 Washers (No. 15) from the Slide Rail (No. 4) using Allen Wrench (No. 84). Then attach the Slide Rail (No. 4) to the Main Frame (No. 1) with 6 Hex Pan Head Screws (No. 14) and 6 Washers (No. 15) that were just removed. Tighten and secure with Allen Wrench (No. 84).

STEP 6
ASSEMBLY INSTRUCTIONS - Step 6
First, remove the preassembled 2 Hex Socket Cap Screws (No. 22) from the ( Axle (No. 19). Then attach the Adjustment Handle (No. 8) to the he Axle (No. 19) and secure tightly with the 2 Hex Socket Cap Screws (No. 22) that were just removed. Tighten and secure with Allen Wrench (No. 83). Make sure the Adjustment Handle (No. 8) is pointing up.

Set the Handlebar (No. 3) onto the Seat Tube (No. 2), and secure tightly with the 2 Square Neck Bolts (No. 10), 2 Washers (No. 15) and 2 Ball Cap Nuts (No. 11) using Spanner (No. 82). Connect the 2 Pulse Wires (No. 41) with the 2 Pulse Sensor Wires 1 (No. 42).

STEP 7
ASSEMBLY INSTRUCTIONS - Step 7
Remove the preassembled 4 Hex Pan Head Screws (No. 14) and 4 Washers (No. 15) from the Backrest (No. 37) using Allen Wrench (No. 84). Then attach the Backrest (No. 37) to the Seat Tube (No. 2) tightly with 4 Hex Pan Head Screws (No. 14) and 4 Washers (No. 15) that were just removed. Tighten and secure with Allen Wrench (No. 84) .

Remove the preassembled 4 Head Screws (No. 14) and 4 Washers Hex Pan (No. 15) from the Seat (No. 36) using Allen Wrench (No. 84). Then attach the Seat (No. 36) to the Seat Tube (No. 2) tightly with 4 Hex Pan Head Screws (No. 14) and 4 Washers (No. 15) that were just removed. Tighten and secure with Allen Wrench (No. 84).

Assembly is now complete!

ADJUSTMENT GUIDE

ADJUSTING THE TENSION

To adjust the tension of the Rotating Handles (No. 23L/R), turn the Tension Knob A in front of the Computer (No. 44). Turn clockwise (+) to increase the tension, counterclockwise (-) to decrease the tension.

To adjust the tension of the bike, move Tension Controller (No. 78). 1 is the lowest tension. 8 is the highest tension.

ADJUSTING THE SEAT POSITION

To move the Seat (No. 36) forward or backward while seated on the bike, pull the Adjustment Handle (No. 8) towards you. Move the Seat (No. 36). Push the Adjustment Handle (No. 8) forward to secure.

ADJUSTING THE LEVEL

If at any point the bike does not feel level, you can adjust the dials located on the side of the rear End Caps (No. 26).

MOVING THE BIKE

Lift the bike by the Rear Stabilizer (No. 7) until the wheels on the Front Stabilizer (No. 6) touch the floor. You can now move the bike to your desired location with ease.

BATTERY INSTALLATION & REPLACEMENT

BATTERY INSTALLATION & REPLACEMENT

BATTERY INSTALLATION

  1. Take out 2 AA batteries from manual pacakge bag.
  2. Press the buckle ( position A as shown in the drawing) of the Computer (No. 44), then take off the Computer (No. 44) slowly.
  3. Install 2 AA batteries into the battery case on the back of the Computer (No. 44) as shown in the drawing B. Pay attention to the battery + and – poles before installing.
  4. Install back the Computer (No. 44) to the bike.

The installation is complete!

BATTERY REPLACEMENT

  1. Press the buckle ( position A as shown in the drawing) of the Computer (No. 44), then take off the Computer (No. 44) slowly.
  2. Remove the 2 old AA batteries in the battery case and install 2 new AA batteries into the battery case on the back of the Computer (No. 44) as shown in the drawing B. Pay attention to the battery + and – poles before installing.
  3. Install back the Computer (No. 44) to the bike.

The replacement is complete!

BATTERY DISPOSAL
Dispose the batteries according to the laws and regulations of your local region. Some batteries may be recycled. When disposing or recycling, do not mix battery types.

EXERCISE COMPUTER


MODE: Press to select function.
Press and hold for 2 seconds to reset all values except TOTAL DIST.

FUNCTIONS AND OPERATIONS:

  1. SCAN: Press MODE button until "▼" appears at SCAN Position. Computer will rotate through all the 6 functions: Time, Speed, Distance, Calorie, Total Distance, and Pulse. Each function will display for 6 seconds.
  2. TIME: Counts the total time from exercise start to end.
  3. SPEED: Displays current speed.
  4. DIST: Count the distance from exercise start to end.
  5. CALORIES (CAL): Counts the total calories from exercise start to the end.
  6. TOTAL DIST (ODO): Counts the total distance after installing the batteries.
  7. PULSE: Press MODE button until "▼" appears at PULSE. Before measuring your pulse rate, place both your palms on the contact pads and the computer will show your current heartbeat rate in beats per minute (BPM) after 3~4 seconds.
    Remark: During the process of pulse measurement, the measurement value may be higher than virtual pulse rate during the first 2~3 seconds, then it will return to normal level.
    To ensure testing accuracy, it is suggested that user test pulse while not pedaling. The measurement value cannot be regarded as the basis for medical treatment.
  8. AUTO ON/OFF & AUTO START/STOP: Without any signal for 4 minutes, the power will turn off automatically.

BATTERY
If there is a problem with the display, try replacing the batteries. When changing the batteries, change both of them. Do not mix battery types. Do not mix old and new batteries. Dispose of batteries according to your state and local guidelines.

SPECIFICATIONS

FUNCTION Auto Scan Every 6 seconds
Running Time 00:00 ~ 99:59 (Minute: Second)
Current Speed Max is 99.9 MILE/H
Trip Distance 0.0 ~ 99.99 MILE
Calories 0.0 ~ 999.9 Kcal
Total Distance 0.0 ~ 999.9 MILE
Pulse Rate 40-240 BPM
Battery Type 2 pcs of SIZE-AA and UM3
Operating Temperature 0℃ ~ +40℃ (32℉~ 104℉)
Storage Temperature -10℃ ~ +60℃ (14℉~ 140℉)
