MAGNETIC UPRIGHT BIKE WITH
TABLET HOLDER
SF-B2511H
USER MANUAL
IMPORTANT: Please read this manual carefully before using the product.
Retain owner's manual for future reference. For Customer Service, please
contact:
support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-B2511H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny Health & Fitness SF-B2511H

Summary of Contents for Sunny Health & Fitness SF-B2511H

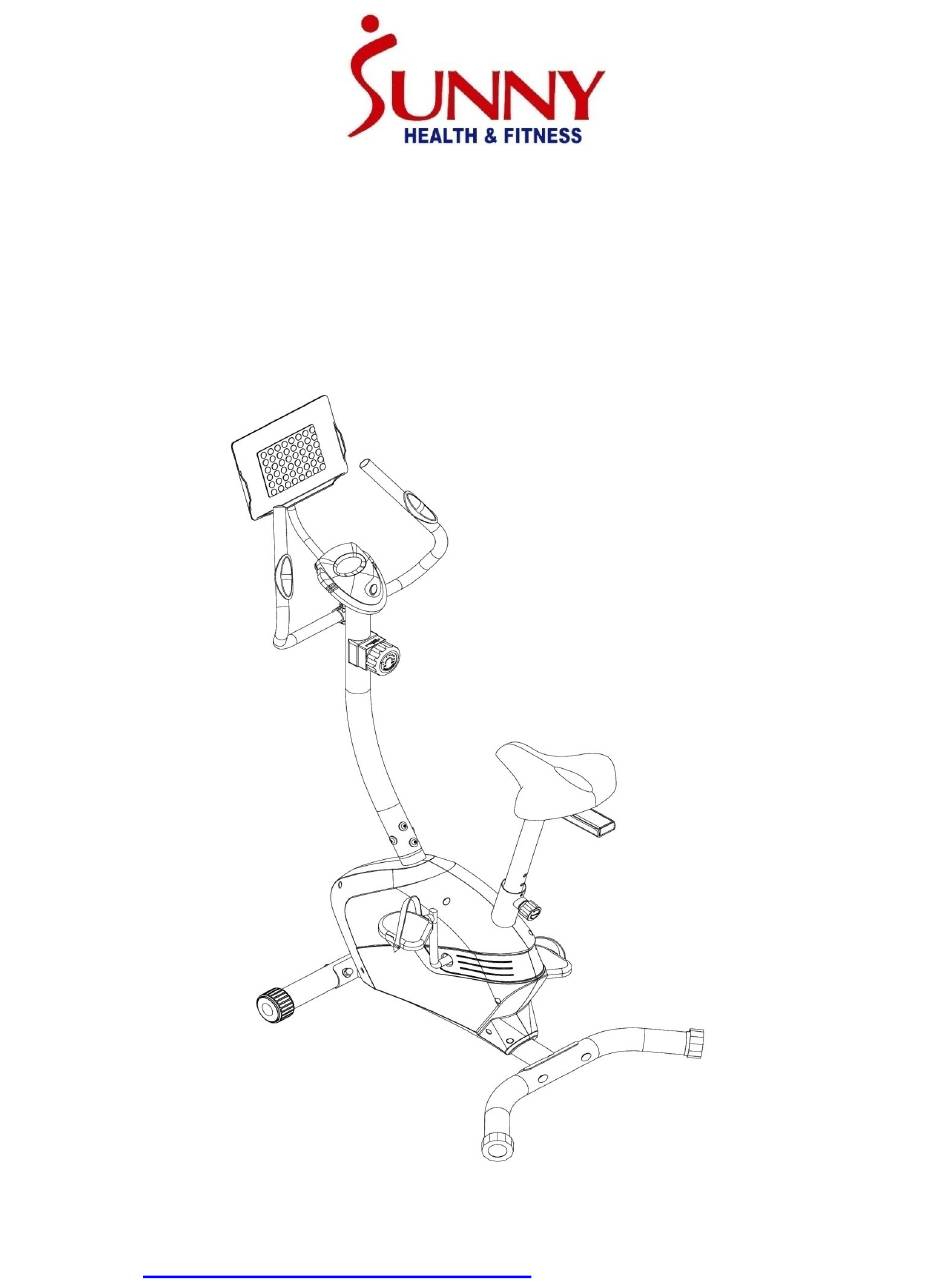

  • Page 1 MAGNETIC UPRIGHT BIKE WITH TABLET HOLDER SF-B2511H USER MANUAL IMPORTANT: Please read this manual carefully before using the product. Retain owner’s manual for future reference. For Customer Service, please contact: support@sunnyhealthfitness.com...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.

  • Page 3: Exploded Drawing

    EXPLODED DRAWING 1...
  • Page 4 EXPLODED DRAWING 2...

  • Page 5: Parts List

    PARTS LIST Description Description Computer Carriage bolt M8*60*20*H5 Computer wire Cap nut M8*H16*S13 Tension control knob Foam grip Φ23*3*520 Clamp cover 71*58*40 Rear stabilizer Screw M5*16 End cap Φ50*45.5*64.5 33L/ Arc washer Φ25*Φ6*3.3*R25.2 Pedal (left & right) Lower tension wire Upper sensor wire Handlebar post Lower sensor wire...
  • Page 6 Description Qty. Description Qty. Magnetic force board axle Ball bearing Φ12*56*3.5*45.5*M6 Bearing housing Idler wheel Φ39*Φ34*24 Bolt M6*16*S10 Wave washer d12*Ф15.5*0.3 Bolt M6*45*S10 Screw M8*12*Φ10*5*S12 Outside bearing collar 15/16” Washer d12*Φ17*0.5 Washer d26*Φ38*1 Idler wheel connect shaft Round magnet Nut M8*H7.5*S13 Belt wheel 200*20*S25*4-Φ6*60-6PJ Spring Φ2*Φ12*54*N15 Crank 235*135*67*1/2*20...

  • Page 7: Hardware Package

    HARDWARE PACKAGE...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 1: Attach the Front and Rear Stabilizers (No. 26 and No. 31) to the Main Frame (No. 19) using 4 Carriage Bolts (No. 28), 4 Arc Washers (No. 14) and 4 Cap Nuts (No. 29). Tighten and secure with Spanner (No. 48). NOTE: The Left and Right Pedals (No.
  • Page 9 STEP 2: Attach the Saddle (No. 25) to the Saddle Across Tube (No. 41) using 3 Nuts (No. 17) and 3 Washers (No. 18), tighten and secure with Spanner (No. 48). Insert the Saddle Post (No. 22) into the tube located on the back end of the Main Frame (No.

  • Page 10: Handlebar Post 1

    #47 S6 #14 d8*Φ20*2*R30 4PCS 14 15 FIG. 2 FI G . 2 FIG. 1 FI G . 1 STEP 3: IMPORTANT: Before attempting to connect the Upper Tension Wire (No. 16), ensure that the Tension Control Knob (No. 2) is turned all the way to the left (the lowest level of resistance), this will provide the tension wire with the necessary length required to connect it.

  • Page 11: Handlebar 1

    #46 M5*12*Φ10 2PCS #43 M8*35*18*S6 1PC #18 d8*Φ16*1.5 1PC #17 M8*H7.5*S13 1PC #47 S6 FI G . 2 FIG. 2 FIG. 1 FI G . 1 STEP 4: Attach the Tablet Mounting Bar (No. 42) onto the bottom of the bracket at the top of the Handlebar Post (No.
  • Page 12 #13 M8*30*S6 2PCS #12 d8 2PCS #47 S6 STEP 5: Attach the Handlebar (No. 11) to the clamp located on the Handlebar Post (No. 7) using 2 Screws (No. 13) and 2 Spring Washers (No. 12), tighten and secure with Allen Wrench S6 (No.

  • Page 13: Handle Pulse Wire 1

    FIG. 1 FI G . 1 STEP 6: Connect the Upper Sensor Wire (No. 34) to the Computer Wire (No. 1a) as shown above in Fig. 1. Ensure that the connection is properly secured before continuing. Place the Computer (No. 1) onto the mount at the top of the Handlebar Post (No. 7) and slide it down into place.

  • Page 14: The Display Console

    THE DISPLAY CONSOLE Our computerized display console on the Sunny Magnetic Upright Bike allows the user to tailor a personalized workout by monitoring their progress. During a workout, the display console will alternately and repeatedly display your Time, Speed, Distance, Calories, and Pulse.

  • Page 15: Tablet Holder

    TABLET HOLDER ADJUSTMENTS The tablet holder on the Sunny SF-B2511H Magnetic Upright Bike can be adjusted to different viewing angles based on the height of the user. The viewing angle Tablet Holder (No. 44) can be adjusted manually without a knob.

  • Page 16: The Warm-Up Phase

    EXERCISE PROCEDURES NOTE: The Sunny Magnetic Upright Bike provides you with various benefits. Cycling helps to improve your physical fitness by increasing your cardiovascular endurance and tone your body. If paired with a calorie controlled diet, it can also help you lose weight. 1.
