TORNADO SMART DUAL BELT
AIR-RESISTANCE BIKE
SF-B223018
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TORNADO SF-B223018 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny Health & Fitness TORNADO SF-B223018

Summary of Contents for Sunny Health & Fitness TORNADO SF-B223018

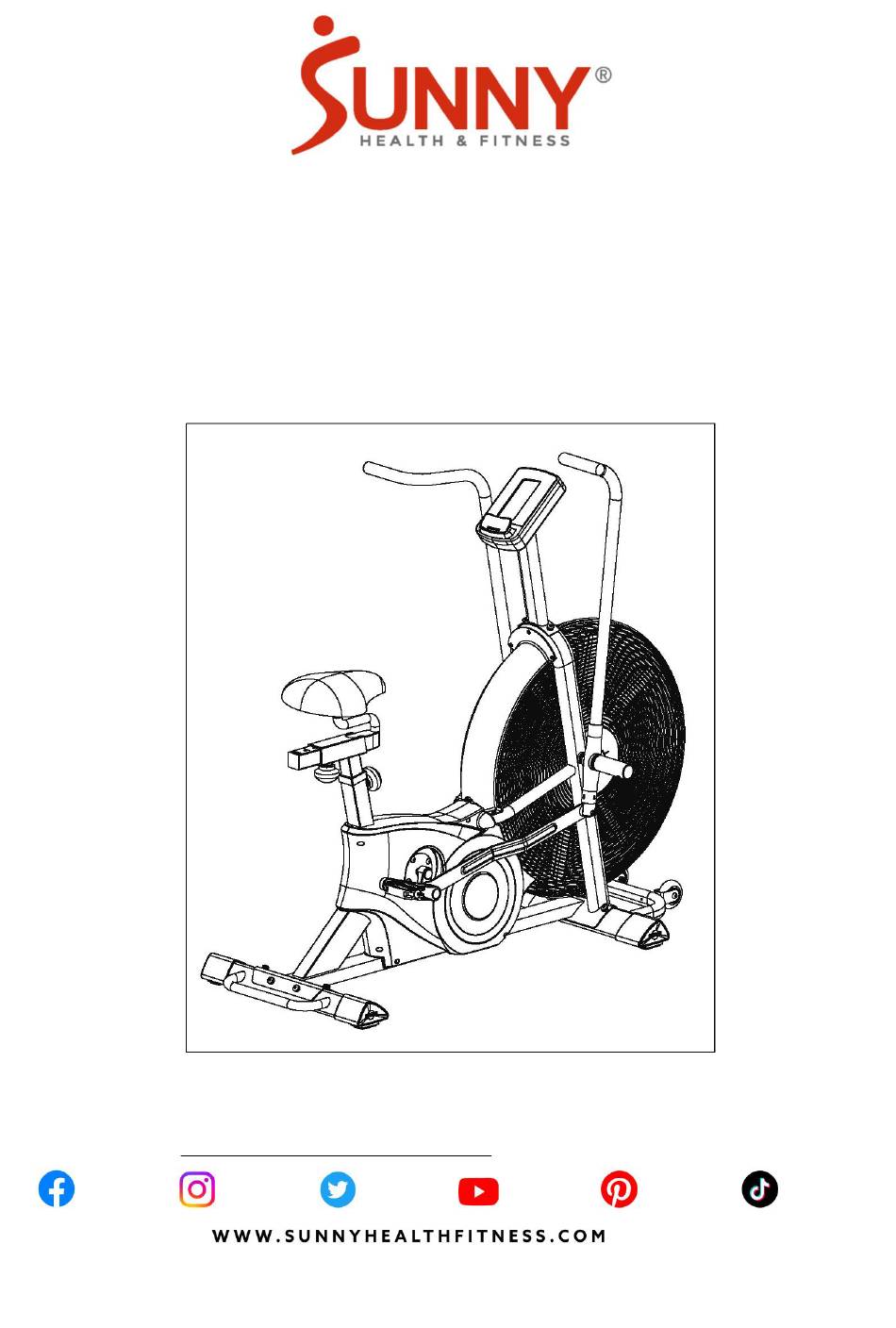

  • Page 1 TORNADO SMART DUAL BELT AIR-RESISTANCE BIKE SF-B223018 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Description Spec. Qty. Main Frame Right Pedal JD-303V Handlebar Post Meter ST3921 Transportation Wheel Φ72X24 Left Swing Arm Right Swing Arm Manual Front Stabilizer Hardware Package Rear Stabilizer...

  • Page 4: Hardware Package

    HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓ The model number (found on cover of manual) ✓ The product name (found on cover of manual) ✓...
  • Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Remove 8 Allen Screws (No. 16), 8 Spring Washers (No. 17) and 8 Flat Washers (No. 18) from the Front Stabilizer (No.
  • Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 2: Remove 2 Nylon Nuts (No. 27), 2 Spring Washers (No. 17) from the Left & Right Swing Arms (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: IMPORTANT! Read instructions carefully, failure to do so may cause permanent damage to your bike. Align the Left Pedal (No.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: Remove 2 Allen Screws (No. 16), 2 Spring Washers (No. 17) and 2 Flat Washers (No. 18) from the Main Frame (No.

  • Page 9: Adjustment Guide

    ADJUSTMENT GUIDE ADJUSTING THE SEAT The Seat (No. 14) of this bike is fully adjustable as it moves Up, Down, Fore (forward), Aft (backward). To adjust the height of the Seat Tube (No. 3), loosen and pull the Knob (No. 35) on the Main Frame (No.

  • Page 10: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT Battery Battery Cover BATTERY INSTALLATION 1. Take out 2 AA batteries from meter box. 2. Press the buckle of battery cover on the Meter (No. 12), then remove battery cover. 3. Install 2 AA batteries into the battery case on the back of the Meter (No. 12). Pay attention to the battery + and –...

  • Page 11: Button Functions

    EXERCISE METER INSTRUCTIONS BUTTON FUNCTIONS FUNCTION DESCRIPTION START To start workout quickly or resume workout in STOP mode. To stop/pause workout. STOP To clear up all settings. Hold on this key for 2 seconds to reboot the meter. DOWN To adjust DISTANCE, CALORIES, HEART RATE, TIME, AGE value down.
  • Page 12 2. 10/20 INTERVAL, 20/10 INTERVAL, CUSTOM INTERVAL, READY, WORK, REST, TIME, DISTANCE, CALORIES, WATTS, SPEED, RPM, and HEART RATE symbol will cycle though in SCAN mode (FIG. 4 to FIG. 16). FIG. 7 FIG. 6 FIG. 4 FIG. 5 FIG. 10 FIG.
  • Page 13 counting according to the calculation value (FIG. 17). 3) When there is heart rate input, the heart rate symbol will light up, and the symbol will blink and display the current heart rate value (FIG. 18); "P" will blink continuously if there is no heart rate input (FIG. 17). 4) After 30 seconds without any signal input, the meter will beep and enter standby mode.
  • Page 14 2) CYCLE TIME starts in 3 seconds, the meter will beep and READY will flash once per second, and the count will display 00/08 (FIG. 23). 3) The CYCLE TIME will start to count down from 20 seconds and WORK will flash once every second.
  • Page 15 FIG. 28 FIG. 30 FIG. 27 FIG. 29 FIG. 33 FIG. 31 FIG. 32 8. TARGET TIME： 1) Press the TARGET TIME button to enter TARGET TIME mode. The icon and TIME will light up and the meter will beep at the same time. 2) The TIME value will flash, press UP or DOWN button to set the TIME (FIG.
  • Page 16 9. TARGET DISTANCE 1) Press the TARGET DISTANCE button to enter TARGET DISTANCE mode. icon and DISTANCE will light up and the meter will beep at the same time. 2) The DISTANCE value will flash, press UP or DOWN button to set the DISTANCE (FIG. 36).

  • Page 17: Special Function Description

    2) The AGE value will flash, press UP or DOWN button to set the age (FIG. 40). Press the ENTER button to confirm. 3) Once started, MAX symbol will remain lit up and display the heart rate value of 65% and 85%.
  • Page 18 2. Press the START button once to enter pause mode. The meter will beep every 30 seconds. When in pause mode, all displays will remain on the screen for 3 seconds and then blink on the 4th second. After 5 minutes in pause mode, the meter will beep and enter standby mode, press START button to continue.

  • Page 19: App Connection

    APP CONNECTION: Connect Smart Equipment to SunnyFit App: 1. Scan to download SunnyFit from the app store: 2. Ensure that the Bluetooth function is turned on from your mobile device. 3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in.

  • Page 20: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Spring Washer Handlebar Post Hex Nut Seat Tube Hex Thin Nut M10X1.0 Φ17.2XΦ21X5 Seat Slider Spacer Left Swing Arm Bearing 6000Z Right Swing Arm Crank Cover Foot Tube Thin Cone Nut M10X1.0 Connecting Arm Centre Axle Set...

  • Page 21: Exploded Diagram

    EXPLODED DIAGRAM 1 EXPLODED DIAGRAM 2 Version: 1.0...
