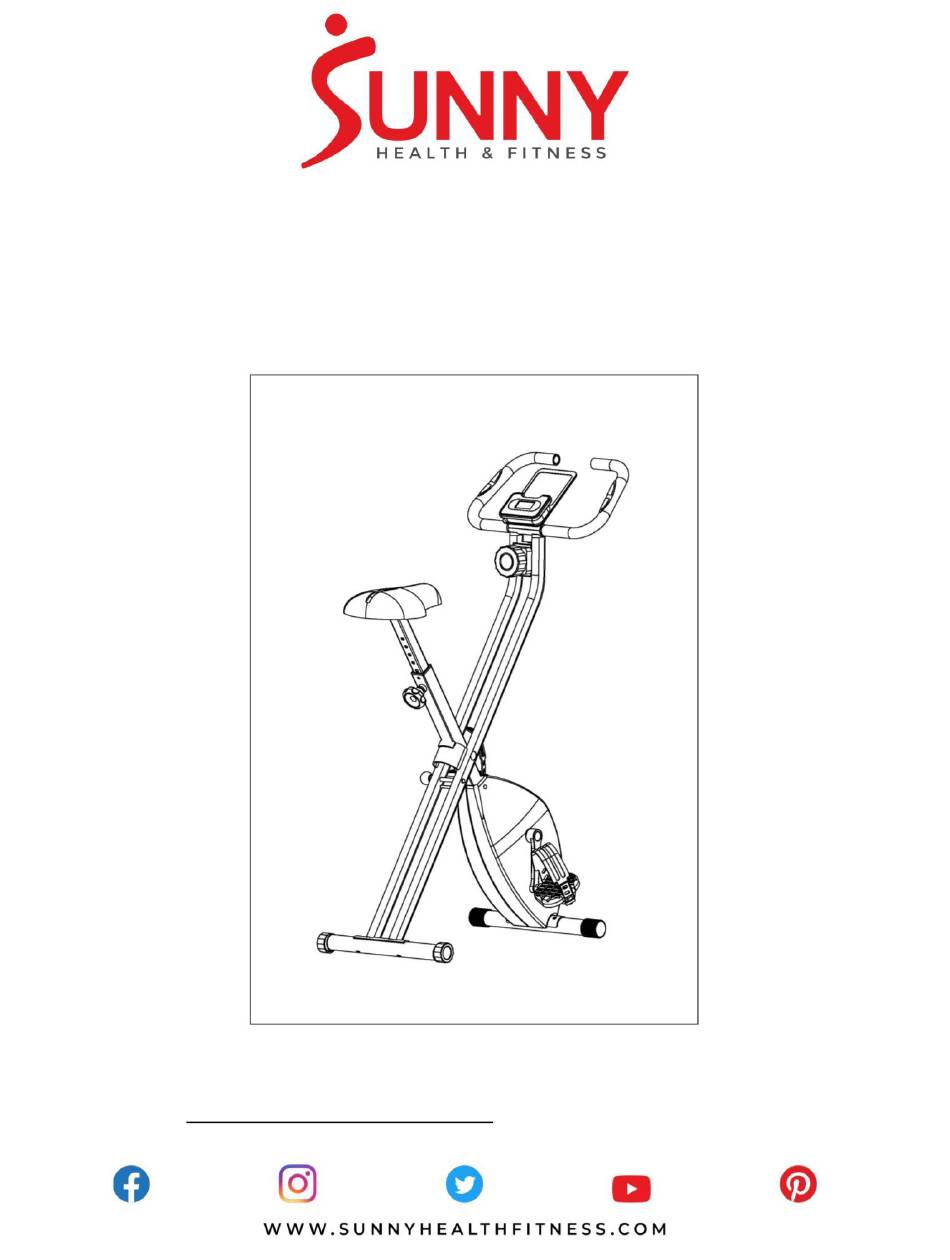

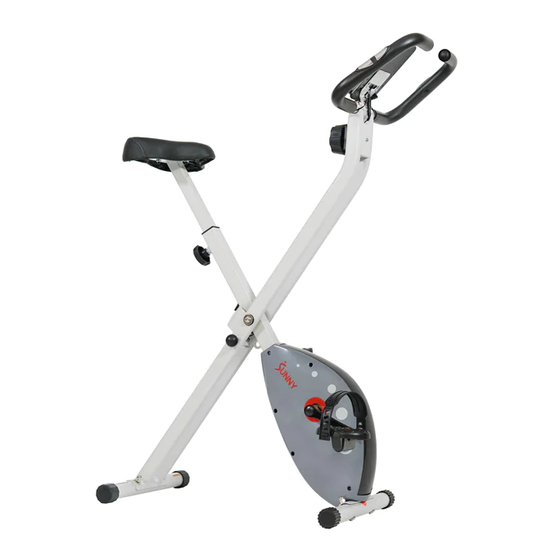

- Page 1 MAGNETIC FOLDABLE EXERCISE BIKE SF-B2989 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 4: Exploded Diagram
EXPLODED DIAGRAM... -
Page 5: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Screw M6x13 Front Stabilizer Screw ST4x20 Rear Stabilizer Screw M6x12 Seat Post Belt Handlebar Belt 6 L/R Crank 1 pr Hex Nut M10x1.0 7 L/R Pedal 1 pr Flat Washer D10x2.0 Meter Idler Wheel Axle... -
Page 6: Hardware Package
Description Spec. Qty. Description Spec. Qty. Screw M6x10 Allen Wrench Plug Pull Pin Spanner S13, 14, 15 Crank Cover HARDWARE PACKAGE #12 M8x38 2PCS #9 M8x50 4PCS #18 M8 4PCS #13 D8x1.5xR11 2PCS #71 S13, 14, 15 1PC #19 D8x1.5xR22 4PCS #73 1PC #72 S6 1PC #25 M5x10 2PCS... - Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1: #73 1PC Remove the preassembled Pull Pin (No. from the Main Frame (No.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 3: Attach the Handlebar (No. 5) to the Main Frame (No. 1) using 2 Screws (No. 12) and 2 Arc Washers (No.
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 5: Attach Pedals (No. 7L/R) to the Cranks (No. 6L/R) using Spanner (No. 71). NOTE: Make sure to attach Right Pedal (No.
- Page 10 FOLDING GUIDE Folding: Remove the Pull Pin (No. 73) from the Main Frame (No. 1), then fold the bike and move to the side of the wall. Then insert the Pull Pin (No. 73) back to the Main Frame (No. 1) to fix the bike. NOTE: Keep at least 2 feet of free space around the bike at all times when folding or unfolding.
-
Page 11: Adjustment Instructions
ADJUSTMENT INSTRUCTIONS ADJUSTING THE SEAT POST The Seat (No. 16) of this bike is adjustable up and down. To adjust the height of the Seat Post (No. 4), loosen the Knob (No. 17) from the Main Frame (No. 1) outward, then raise or lower the Seat Post (No. 4) to the desired height. -
Page 12: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION The meter uses 2 AAA batteries. Open the battery cover from the back of meter, then put 2 batteries into the battery compartment. Make sure the (+) and (-) ends of the batteries are in the correct position. - Page 13 EXERCISE METER KEY FUNCTION ● This key lets you to select and lock on to a particular function you want. SCAN→TIME→SPEED→DIST→CALORIES(CAL)→TOTAL DIST(ODO) → PULSE RATE ● Press and hold with 3 seconds to reset the value to zero (except ODO). SET SLEEP MODE ●The system will enter sleep mode automatically when the sensor has no signal input or no keys are pressed for approximately 4 minutes.
