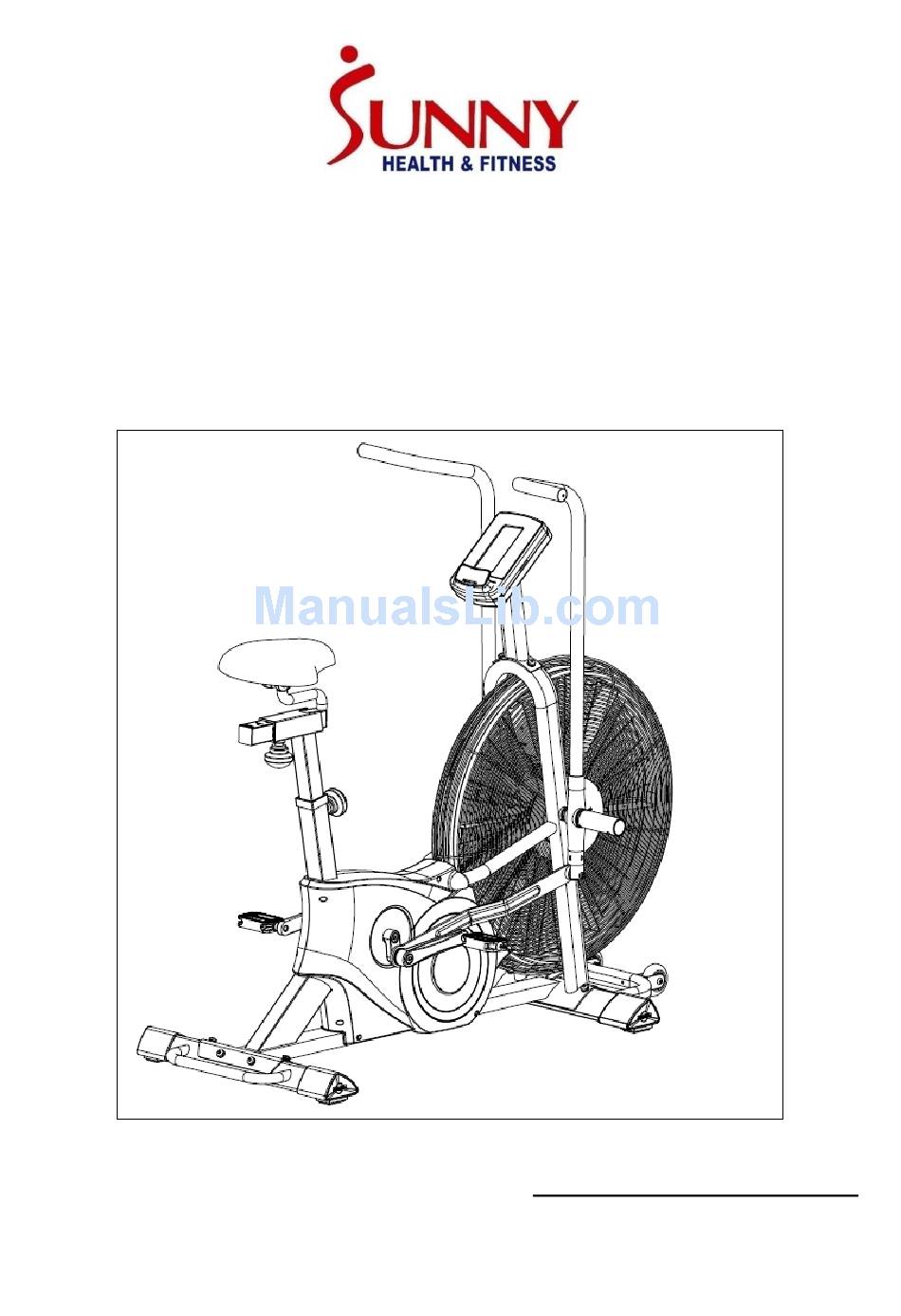

TORNADO LX AIR BIKE
SF-B2729
USER MANUAL
IMPORTANT! Read all instructions carefully before using this product. Retain owner's manual
for future reference. For customer service, please contact: support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-B2729 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny Health & Fitness SF-B2729

Summary of Contents for Sunny Health & Fitness SF-B2729

  • Page 1 TORNADO LX AIR BIKE SF-B2729 USER MANUAL IMPORTANT! Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...

  • Page 2: Important Safety Notice

    IMPORTANT SAFETY NOTICE We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 5: Parts List

    PARTS LIST DESCRIPTION SPEC. DESCRIPTION SPEC. Main Frame Stop Ring Φ22 Handlebar Post Foam Grip Seat Tube Spring Knob Seat Slider End Cap Cross Pan Head 5L/R Swing Arm 1pr. M5*10 Screw Foot Tube Sensor Wire Hex Pan Head 7L/R Connecting Arm 1pr.

  • Page 6: Assembly Instruction

    ASSEMBLY INSTRUCTION STEP 1 Remove the pre-assembled 8 Hex Pan Head Screws (No. 16), Spring Washers (No. 17) and 8 Flat Washers (No. 18) from the Front Stabilizer (No. 9) and the Rear Stabilizer (No. 10). Attach the Front Stabilizer (No. 9) and the Rear Stabilizer (No.
  • Page 7 STEP 3 Attach Pedal (No. 11L/R) the Crank (No. 13L/R) with the cross wrench. NOTE: Make sure to attach the Right Pedal, marked (R), to the Right Crank (R). It should be tightened CLOCKWISE. Attach the Left Pedal, marked (L), to the Left Crank (L).

  • Page 8: Adjustment Guide

    ADJUSTMENT GUIDE ADJUSTING THE LEVEL If the bike is not level, turn the dials on the End Cap (No. 20L/R) to adjust. Turn to the right to raise, and turn to the left to lower. MOVING THE BIKE Lift the bike by the handle on the Rear Stabilizer (No. 10) until the wheels on the Front Stabilizer (No.

  • Page 9: Exercise Computer Instructions

    EXERCISE COMPUTER INSTRUCTIONS DISPLAY FUNCTIONS FUNCTION DESCRIPTION Display the rotations per minute with range from 0~ 199. Display current training speed. Maximum speed is 99.9 KM/H or SPEED ML/H. Count up - Time will count up from 00:00 to maximum1:59:59 in 1 minute increments.

  • Page 10: Button Functions

    BUTTON FUNCTIONS FUNCTION DESCRIPTION To start workout quickly or resume workout in Stop mode. START To stop/pause workout. To clear up all settings. STOP Hold on this key for 2 seconds to reboot the console. To adjust Distance, Calories, Heart-rate, Time, Age value down. DOWN To adjust Distance, Calories, Heart-rate, Time, Age value up.
  • Page 11 Pulse – To measure heart rate, a 5.3 KHz chest strap heart rate monitor (not included) is needed. Meter will alternately display actual pulse, 65%, 85% MAX. This value cannot be used as the basis for medical treatment. FUNCTION MODES: ...
