Summary of Contents for Siemens SIMATIC IPC 547J

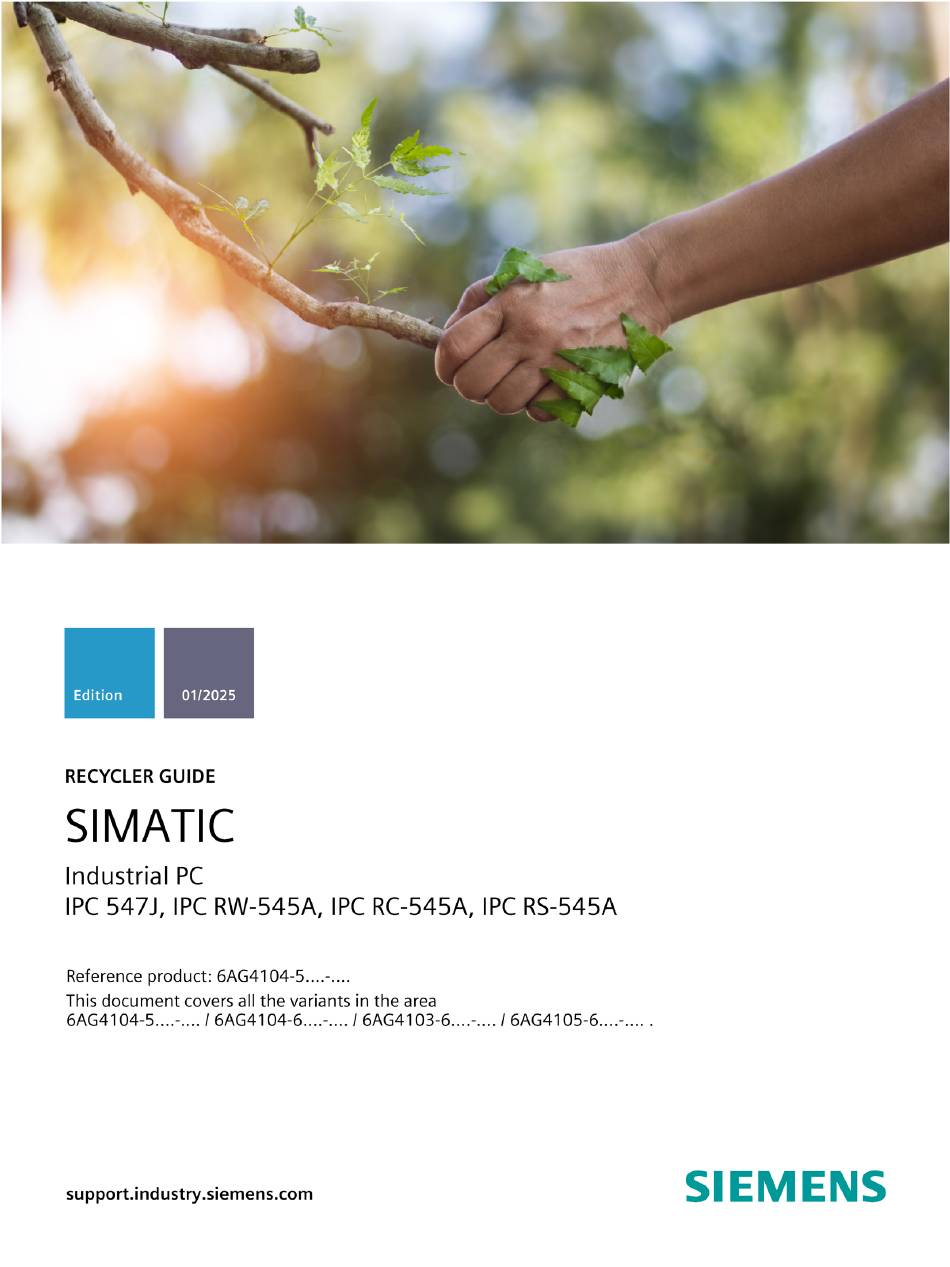

  • Page 2 Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A About this guide Safety instructions SIMATIC Recommended tool Disassembly instructions Industrial PC Recycler Guide for Explanation of substances SIMATIC IPC 547J, IPC RW-545A, and components IPC RC-545A, IPC RS-545A...

  • Page 3: Legal Information

    Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 4: Table Of Contents

    Step 11: Rear of the enclosure .................... 59 Explanation of substances and components ..................60 Received material fractions ......................... 61 Disclaimer of liability ........................... 62 Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 5: About This Guide

    If you have any questions or feedback regarding this Recycler Guide, please use this address: recycling@siemens.com Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 6: Safety Instructions

    Warning against pointed/sharp objects Wear personal protective equipment throughout the recycling process. Wear hand protection Wear a mask Wear eye protection Wear foot protection Wear protective clothing Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 7: Recommended Tool

    Cross-tip screwdrivers Torx screwdriver T8 Torx screwdriver T10 Torx screwdriver T25 Torx screwdriver T20 Hexagon 4.5 mm Additional tools Cutting tool for cable ties Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 8: Disassembly Instructions

    Components of the product All devices can exist in configuration variants with drive cages of type A and type B. In addition, SIMATIC IPC 547J and SIMATIC IPC RC-545A can also exist in configuration variants with drive cage type C.
  • Page 9 Disassembly instructions Figure 4-1 IPC with drive cage type A or type B Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 10 Step 4 IPC with drive cage type C The following illustration shows an example of an IPC with drive cage type C. SIMATIC IPC 547J and SIMATIC IPC RC-545A can exist in the configuration variant with drive cage type C. Note The following diagram shows only selected components of the product and does not claim to be exhaustive.
  • Page 11 Disassembly instructions Figure 4-2 IPC with drive cage type C Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 12 PC-ABS Step 10 Operating display panel Plexiglass Step 10 Fan cover PC-ABS Step 10 Slot cover Steel Step 11 Expansion card Electronics Step 4 Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 13: Step 1: Enclosure Cover

    Dismantle the enclosure cover: 1. Open the front door. Remove the locking screw with a T10 Torx screwdriver. 2. Slide the enclosure cover backwards and remove it. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 14: Step 2: Card Retainer

    1. Remove the rod with the card retainers by pulling the rod up out of the retainer. 2. Remove the screws from the two bearing retainers using a T8 Torx screwdriver. 3. Remove the bearing retainers from the enclosure. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 15 4.2 Step 2: Card retainer 4. Remove the clamping screws on the card retainers using a T10 Torx screwdriver. Slide the card retainers off the rod. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 16: Step 3: Power Supply

    There are cables in the devices that are not shown in the illustrations in this recycler guide. Disconnect and collect the cables separately before dismantling the components. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 17 2. Remove the 4 screws securing the power supply to the rear of the enclosure. Use a T10 Torx screwdriver for this. 3. Pull the power supply up out of the enclosure. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 18 2. Remove the mounting bracket from the base plate. To do this, remove the screw with a T10 Torx screwdriver. Remove the two screws from the back of the power supply. Use a T10 Torx screwdriver for this. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 19 1. To pull out the individual power supply modules, remove the Phillips screw on each module using a Phillips screwdriver. 2. Pull out the individual modules. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 20 3. Remove the 4 Phillips screws that secure the power supply cage to the enclosure. Use a Phillips screwdriver to do this. 4. Push the power supply cage through the opening in the enclosure. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 21 Remove the mounting bracket from the power supply cage: 1. Remove the two screws with a T10 Torx screwdriver. 2. Remove the mounting bracket. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 22: Step 4: Expansion Card, Cpu Fan, Ram Module

    Dismantle the expansion card Remove the expansion card: 1. Remove the screw with a T10 Torx screwdriver. 2. Pull the expansion card up out of the enclosure. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 23 Remove the CPU fan: 1. Remove 4 screws from the motherboard using a Phillips screwdriver. 2. Pull the fan up out of the enclosure. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 24: Step 5: Drive Cage Type A, Type C, Type B

    Dismantle the drive cage All devices can exist in configuration variants with drive cages of type A and type B. In addition, SIMATIC IPC 547J and SIMATIC IPC RC-545A can also exist in configuration variants with drive cage type C.
  • Page 25 2. Remove the ODD cover by pressing it together on the back. 3. Then slide the ODD cover forwards out of the drive cage. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 26 2. Slide the cover forwards out of the drive cage. If the HDD cover is installed on the drive cage, remove the HDD cover. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 27 Detach the drive cage from the front. Remove 6 screws from the front and 2 screws from the right side using a T10 Torx screwdriver. Pull the drive cage slightly towards the backplane and lift it out of the enclosure. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 28 1. To remove the complete drive cage, first press the tabs of the fan together. 2. Pull the fan out of the drive cage. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 29 4.5 Step 5: Drive cage type A, type C, type B 3. Press the two side tabs apart. 4. Remove the fan from the retainer. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 30 Pull the entire removable tray out of the drive cage. Depending on the configuration, remove 4 screws from the HDD with a T10 Torx screwdriver or 3 screws from the SSD with a T8 Torx screwdriver. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 31 4.5 Step 5: Drive cage type A, type C, type B To remove the backplane retainer, remove 4 screws with a T10 Torx screwdriver and pull the retainer off the drive cage. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 32 1. Press the backplane out of the retainer by pressing on the latching tabs and the ejector at the same time. 2. Remove the backplane. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 33 1. Unscrew the right and left mounting latches using a T10 Torx screwdriver. 2. Remove the blind panel. Unscrew the cover plate from the drive cage using a T10 Torx screwdriver. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 34 Disassembly instructions 4.5 Step 5: Drive cage type A, type C, type B Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 35 Separate the drive cage from the front panel. To do this, remove 6 screws from the front and 2 screws from the right side using a T10 Torx screwdriver. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 36 4.5 Step 5: Drive cage type A, type C, type B Pull the drive cage slightly towards the backplane and lift it out of the enclosure. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 37 Disassembly instructions 4.5 Step 5: Drive cage type A, type C, type B Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 38 Depending on the configuration, remove the screws from the HDD with a T10 Torx screwdriver or the screws from the SSD with a T8 Torx screwdriver. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 39 Disassembly instructions 4.5 Step 5: Drive cage type A, type C, type B Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 40 2. Separate the drive cage from the front by removing 6 screws on the front using a T10 Torx screwdriver. Pull the drive cage slightly towards the rear panel and then lift it out of the enclosure. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 41 Dismantle the drive cage plate. Depending on the configuration, remove the screws from the HDD with a T10 Torx screwdriver or from the SSD with a T8 Torx screwdriver. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 42 Disassembly instructions 4.5 Step 5: Drive cage type A, type C, type B Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 43: Step 6: Guide Rail For Long Expansion Cards

    1. Press the two tabs outwards. 2. Pull the guide rail from the anchoring towards the rear panel and then up out of the enclosure. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 44: Step 7: Motherboard

    3. Disconnect the fan cable. 4. Disconnect the COM cable Remove the hexagon head screws from the DVI and COM using a 4.5 mm hexagon socket wrench. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 45 4.7 Step 7: Motherboard To remove the motherboard, remove 11 screws with a T10 Torx screwdriver and swing the motherboard out of the enclosure. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 46 1. Press a thin, blunt object parallel to the battery on the area marked in the figure. The battery is unlocked and disengages from the socket. 2. Remove the battery from socket. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 47 3. Disconnect the fan cable. 4. Disconnect the COM cables. Remove the hexagon head screws from the DVI and COM using a 4.5 mm hexagon socket wrench. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 48 4.7 Step 7: Motherboard To remove the motherboard, remove 11 screws with a T10 Torx screwdriver and swing the motherboard out of the enclosure. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 49 1. Press a thin, blunt object parallel to the battery on the area marked in the figure. The battery is unlocked and disengages from the socket. 2. Remove the battery from socket. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 50: Step 8: Display Module

    Dismantle the display module Remove the display module: 1. Remove 2 screws with a T10 Torx screwdriver. 2. Then remove the display module from the front. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 51: Step 9: Front Fan

    2. Swing the fan cover open in the direction of the arrow and remove it. 3. Remove the filter mat from the fan cover. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 52 1. Press the clip on the small fan cable plug and pull the plug off the larger adapter plug. 2. Press on the clips on the side of the larger adapter plug and detach the adapter plug from the cable retainer. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 53 4.9 Step 9: Front fan Dismantle the adapter plug: 1. Release the latching mechanism. 2. Pull the adapter plug out of the fan support. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 54 1. Release the latching hooks on both sides of the fan support one after the other and swivel the fan out of the support. 2. Pull the air duct hood out of the fan support. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 55: Step 10: Enclosure Front

    To remove the enclosure front from the enclosure, remove the screws with a T10 Torx screwdriver and remove the front of the enclosure from the enclosure. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 56 Disassembly instructions 4.10 Step 10: Enclosure front Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 57 There are 3 magnets glued into the front door. The magnets cannot be removed without damaging them. To remove the lever lock from the front door, first loosen the lever lock cover by levering open the gap. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 58 To remove the operating display panel and the light shaft, release the latches on the back using a thin screwdriver. Press the operating display panel out of the front frame and remove the light shaft. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...
  • Page 59 Disassembly instructions 4.10 Step 10: Enclosure front Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 60: Step 11: Rear Of The Enclosure

    1. To remove the slot covers, remove the screws with a T10 Torx screwdriver. 2. Then slide the slot covers up out of the enclosure. 3. Push the interface cover out of the enclosure from the inside. Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 61: Explanation Of Substances And Components

    Fig. 4-1: 7, Fig. 4-2: 7 Step 5 (Page 23) Fig. 4-1: 14, Fig. 4-2: 12 Step 8 (Page 49) External electrical cables Power supply cord (not shown) Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 62: Received Material Fractions

    (10) Mounting frame (5A), drive cage (5A, 5B), drive Aluminum cage plate (5C), device handle (10) Front door (10), front frame (10) Magnesium Recycler Guide for SIMATIC IPC 547J, IPC RW-545A, IPC RC-545A, IPC RS-545A Product Information, 01/2025, A5E53925646-AB...

  • Page 63: Disclaimer Of Liability

    Reuse of dismantled components is not permissible. Siemens therefore assumes no liability for errors or consequences that may result from the use of this information to the greatest possible legal extent.
