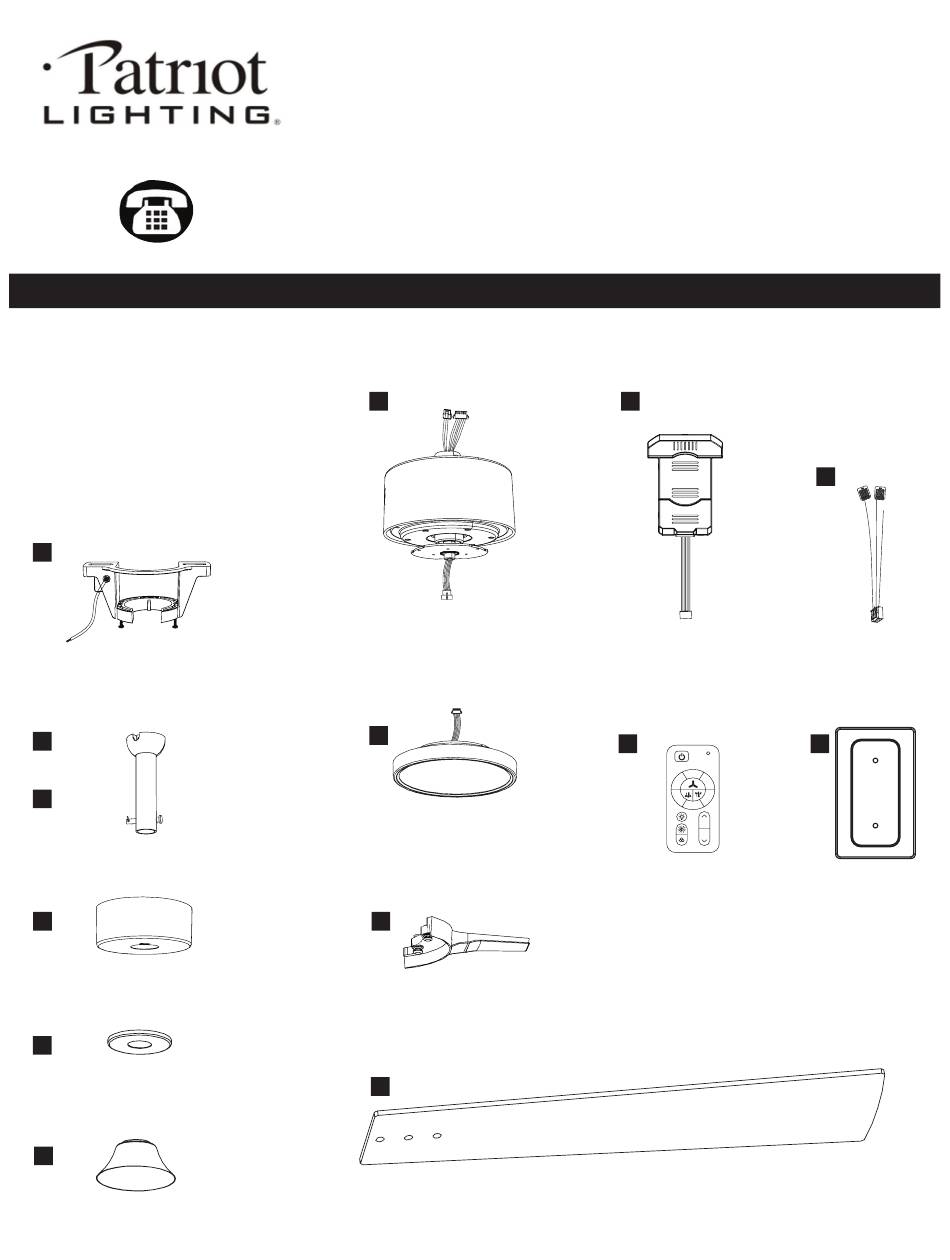

PACKAGE CONTENTS
DC motor
Energy efficient 30W
Reversible motor
6 Speed
3000 CFM, 220 RPM
Integrated LED
1000 lumens, 80 CRI
30,000 hours
42" diameter (fully assembled)
Net weight of fan: 7.605 vlb / 3.45 kg
A
Mounting bracket x1
B
C
Downrod x1
D
Canopy x1
E
Canopy ring x1
F
Decorative cover x1
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-888-543-1388
Monday – Friday 7:00 a.m. – 5:00 p.m. CST
G
Fan motor housing x1
H
I
J
42" RGBW Integrated LED
Remote Number: GE37106TX
Remote control receiver x1
Light kit x1
Blade arm x3
Blade x3
Sku Number: 3553572
Indoor Ceiling Fan
Model Number: 3553572
K
M
2 2
1 1
3 3
6 6
4 4
5 5
Remote control x1
L
Receiver wires x1
N
Remote control
back plate x1
Advertisement
Table of Contents
Related Manuals for Patriot Lighting 3553572
Summary of Contents for Patriot Lighting 3553572
- Page 1 Sku Number: 3553572 42" RGBW Integrated LED Indoor Ceiling Fan Model Number: 3553572 Remote Number: GE37106TX Questions, problems, missing parts? Before returning to your retailer, call our customer service at 1-888-543-1388 Monday – Friday 7:00 a.m. – 5:00 p.m. CST...
- Page 2 HARDWARE CONTENTS Note: Hardware not shown actual size. Balancing kit x1 Wire nut x2 Blade arm Remote control back plate screw anchors x2 screws x10 Remote control back Extra Junction Box Extra Junction Box plate screws x2 screws and washers screws and washers #8-32 x 1"...
-
Page 3: Safety Information
SAFETY INFORMATION WARNING • REMOVE AND IMMEDIATELY RECYCLE OR DISPOSE OF USED BATTERIES ACCORDING TO LOCAL REGULATIONS AND KEEP AWAY FROM CHILDREN. DO NOT DISPOSE OF BATTERIES IN HOUSEHOLD TRASH OR INCINERATE. • EVEN USED BATTERIES MAY CAUSE SEVERE INJURY OR DEATH. •... -
Page 4: Pre-Installation
PRE-INSTALLATION Outlet Box: Fan must be able to be secured to a fan-rated outlet box. If none exists, contact a qualified electrician for installation. WARNING: To reduce the risk of fire, electric shock, or personal injusry, mount to outlet box marked "acceptable for fan support of 15.9/22.7/31.8 KG (35/50/70 LBS) or less"... - Page 5 IINSTALLATION 1. ATTACH THE MOUNTING BRACKET TO THE OUTLET BOX. 2.1 ATTACH THE BLADES Secure the mounting bracket (A) to the ceiling outlet box with the screws Secure the blade arm (I) to the fan blade (J) using the blade arm screws and washers provided with your outlet box.
- Page 6 INSTALLATION - CONTINUED 4.2 ATTACH THE DOWNROD TO THE FAN MOTOR HOUSING 4.3 ATTACH THE DOWNROD TO THE FAN MOTOR HOUSING Remove the locking pin (PP) and the hanging pin (OO) from the Carefully feed the motor housing wires up through the downrod (C). downrod (C).
- Page 7 INSTALLATION - CONTINUED TT/UU 6.1 HANG THE FAN ON THE BRACKET 6.2 HANG THE FAN ON THE BRACKET. Lift the assembled fan to the ceiling and place the hanger ball (B) into the Rotate the assembled fan clockwise until the groove (TT) on the hanger mounting bracket (A) opening.
- Page 8 INSTALLATION - CONTINUED Ceiling Black White Ground wires 7.3 WIRE THE FAN WARNING: All wiring must be in accordance with the National Electrical Code, ANSI/NFPA 70. If wires at the installation site are any Connect the ceiling wires to the receiver wires as follows: other color than what is listed here, have this fan installed by a qualified electrician.
- Page 9 FAN AND REMOTE CONTROL OPERATION Remote control SKU#: GE37106TX power Blue LED indicator light will illuminate Press button to turn fan when any button is pressed and light on or off Note: Fan and light will turn on to last state #1-6: 6 fan speed levels fan on/off Press button to turn fan on or off...
-
Page 10: Care And Maintenance
CARE AND MAINTENANCE • The fan’s natural movements may cause some connections to come loose. A clicking or rattling noise is a certain sign of loosening screws. C heck the support connections, brackets and blade attachment twice a year, and tighten all screws as necessary. •... -
Page 11: Fcc Statement
FCC STATEMENT READ AND SAVE THESE INSTRUCTIONS Most electrical accidents are caused by carelessness or ignorance. If you combine a basic knowledge of electricity, a healthy respect for it, and a dose of common sense, you can safely tackle many household electrical repairs. Here are some basic guidelines for working with electricity: Before working on a circuit, go to the main service panel and remove the fuse or trip the breaker that controls that circuit. -
Page 12: Warranty
Model Min. Thickness of edges of blades (in./mm) Blade length (in./cm) Speed at tip of blades (ft/s, m/s) 553572 0.188" (4.8mm) 16.53" (42cm) 39.92ft/s (12.17m/s) WARRANTY 3-YEAR LIMITED WARRANTY What is covered This product is guaranteed to be free of factory defective parts and workmanship for a period of 3 years from date of purchase.
