Insportline Velocer IOTA85 User Manual

Hip abductor exerciser
Hide thumbs

Advertisement

Table of Contents

USER MANUAL – EN
IN 27716 Hip Abductor exerciser inSPORTline Velocer
IOTA85

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Velocer IOTA85 and is the answer not in the manual?

Questions and answers

Related Manuals for Insportline Velocer IOTA85

Summary of Contents for Insportline Velocer IOTA85

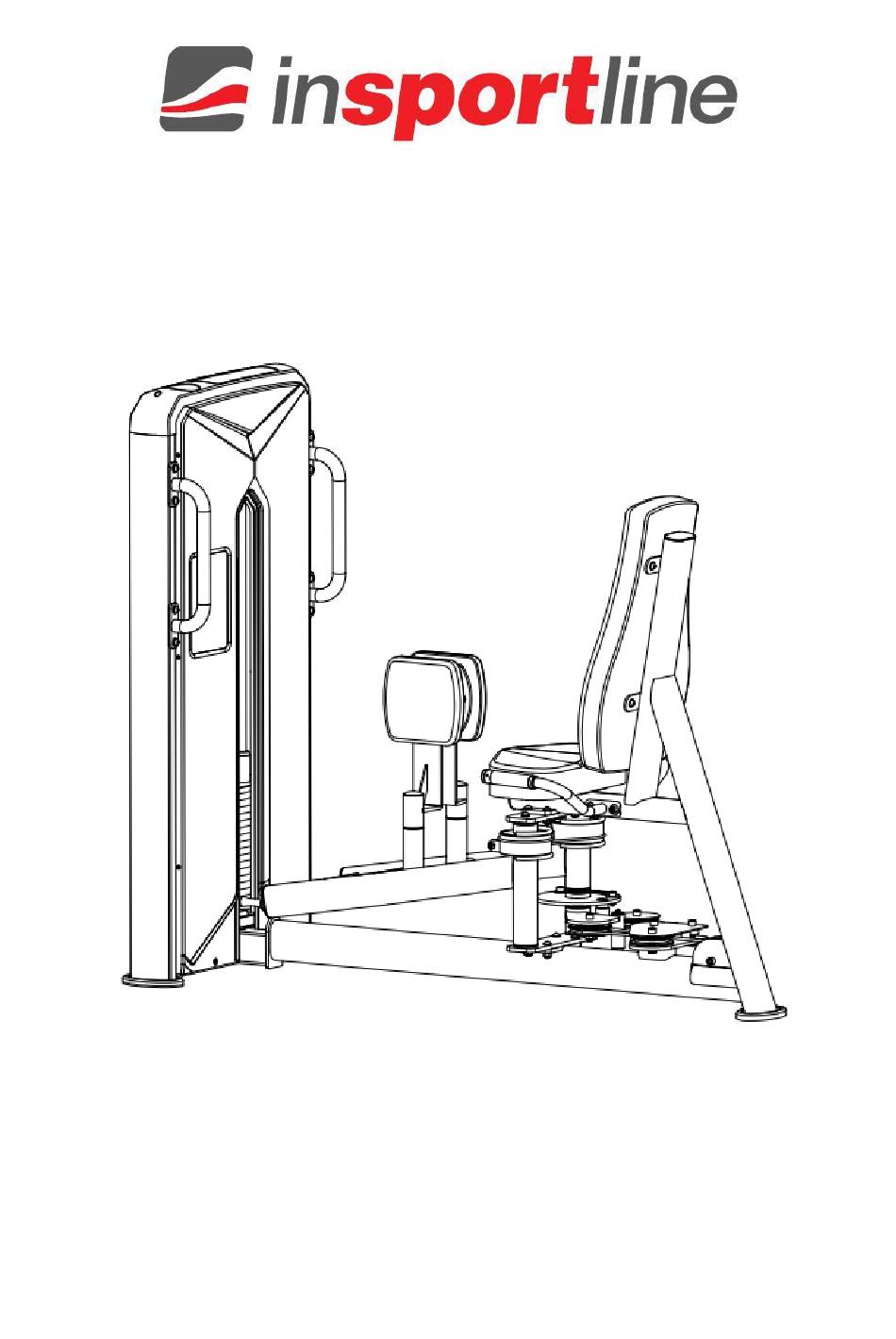

  • Page 1 USER MANUAL – EN IN 27716 Hip Abductor exerciser inSPORTline Velocer IOTA85...

  • Page 2: Safety Instructions

    SevenSport s.r.o. reserves the right to make any changes and improvements to its product without prior notice. Visit our website www.insportline.eu where you will find the latest version of the manual. SAFETY INSTRUCTIONS • Before use and assembly, read the manual and keep the manual for future reference.
  • Page 3 DRAWING...

  • Page 4: Parts List

    PARTS LIST Name Qty. Name Qty. Flat washer φ8.2*φ30*2 Weight frame Seat frame and backrest Curved washer D10.5*D25*2 3L/R L/R connecting frame Spring Connection plate Latch pin 5L/R L/R connection frame Magnetic latch Rotating frame 1 Bearing 6204 Rotating frame 2 Pivot bearing Rotating frame Weight...
  • Page 5 Plastic handle head Locking ring D42 Cable Hexagon screw M10*20 Thigh support Washer M10 Spacer φ32*φ25*36.3 Cover Spacer φ32*φ25*84 Bushing Bearing 6004 Handles Bearing 6905 ASSEMBLY Step 1 Attach frame (2) to frame (1) using bolts (24), washers (31), and nuts (28). Do not tighten. Secure the frames with bolts (13), washers (13) and nuts (27).
  • Page 6 Step 2 Thread the cable (64) as shown. Attach the pulleys (63) to the frame (1) using bolts (17), washers (30) and nuts (27). Attach pulley (63) to the frame (1) using the bolt (19) and the washer (34). Attach pulley (63) to frame (2) using bolt (17), washer (30), and nut (27).
  • Page 7 Step 3 Attach to the frame (1) in order: rubber pads (62), guide rods (47), weight (40) and weight guide plate (45). Secure the guide rods (47) with the locking rings (52). Insert the magnetic catch (41) into the weight (44) and the weight selection rod (48). Then attach the Magnetic Latch Cable (41) to the Cable Bolt (64) and then attach the Cable Bolt (64) to the Weight Selector Rod.
  • Page 8 Step 4 Attach the plates (10) to the frame (2) using screws (16), washers (31) and nuts (28). Step 5 Hřídel (71) s rámem (3L) připevněte do destiček (10) a zajistěte pomocí šroubů (16) a podložek (33 a 31).
  • Page 9 Step 6 Unscrew the bolts (17), connecting plate (11), pulley (63), washer (30) and nut (27) from the frame (6), see Fig. B. Unscrew the bolt (18), pulleys (63), washers (30) and nuts (27) from the frame (7), see Fig. B. Fix the frames (8, 7 and 6) together with the frame (3R) to the plates (10) using the shaft (71), bolt (16), washers (33 and 31).
  • Page 10 Step 7 Unscrew the nut (82) on the cable (74) and then pull the cable (74) through, see images D, E and then secure with the nut (82) so that the frames (3L/P) are centered see. Figure F. Attach the pulleys (63), plate (9), and bearing (43) to the frame (2) using bolts (17), washers (30), and nuts (27).
  • Page 11 Step 8 Attach the handles (5L/P) to the frame (2) using bolts (14), washers (38) and nuts (28). Attach the seat (58) to the frame (2) using bolts (20) and washers (32). Attach the support (57) to the frame (2) using bolts (81) and washers (31).
  • Page 12 Step 9 Attach the covers (53, 54 and 56) to the frame (1) with screws (25). Step 10 Attach the handles (85) to the frame (1) using bolts (81) and washers (33 and 31).

  • Page 13: Maintenance

    MAINTENANCE • Regularly lubricate all moving parts. • Check and tighten all connections. • Clean the device with damp cloth and non-aggressive cleaning detergent. • Regularly check the device for sign of wear or damage. • Immediately replace worn or damaged parts. EXERCISE INSTRUCTIONS Exercise is beneficial to your health, improves physical condition, shapes muscles and, in combination with a calorie-balanced diet, leads to weight loss.

  • Page 14: Environment Protection

    3. COOLDOWN This phase serves to soothe the cardiovascular system and relax the muscles. It should take approximately 5 minutes. You can repeat warming up exercises or continue exercising at slower pace. Stretching your muscles after exercise is extremely important - you need to avoid sudden movements and vibrations.
  • Page 15 Seller is obliged to provide the Buyer with a financial compensation in the form of a refund. SEVEN SPORT s.r.o. Stores inSPORTline SK, s.r.o. Strakonická 1151/2c, Praha 5, 150 00, ČR Headquaters, warranty & service center: Električná 6471, Registered Office: Dělnická...
  • Page 16 About shipping...
