Bench Installation
How to assemble
your table.
For more information about our products and services or to see a list of dealers, please visit us at
hermanmiller.com or call (800) 851 1196.
© 2013 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1b9l4t - B.
TM Y, Nelson are among the trademarks of Herman Miller, Inc.
Tools Required
#2 Phillips Screwdriver
Step 1
1.1
Lay Bench Assembly(A) top side down on a clean surface.
1.2
Pivot leg assemblies up.
HermanMiller Eames
®
Table
Parts Included
A
Bench Assembly
Warning:
Failure to fully tighten screws may cause injury by
causing bench to collapse. Tighten screws until
they stop plus a quater turn.
Step 2
2.1
Align holes in V brackets with insert in bench slats.
1
B
1/2" Long Pan Head
Machine Screw (2)
Assembly Instructions
Advertisement
Table of Contents
Related Manuals for HermanMiller Nelson Bench
Summary of Contents for HermanMiller Nelson Bench

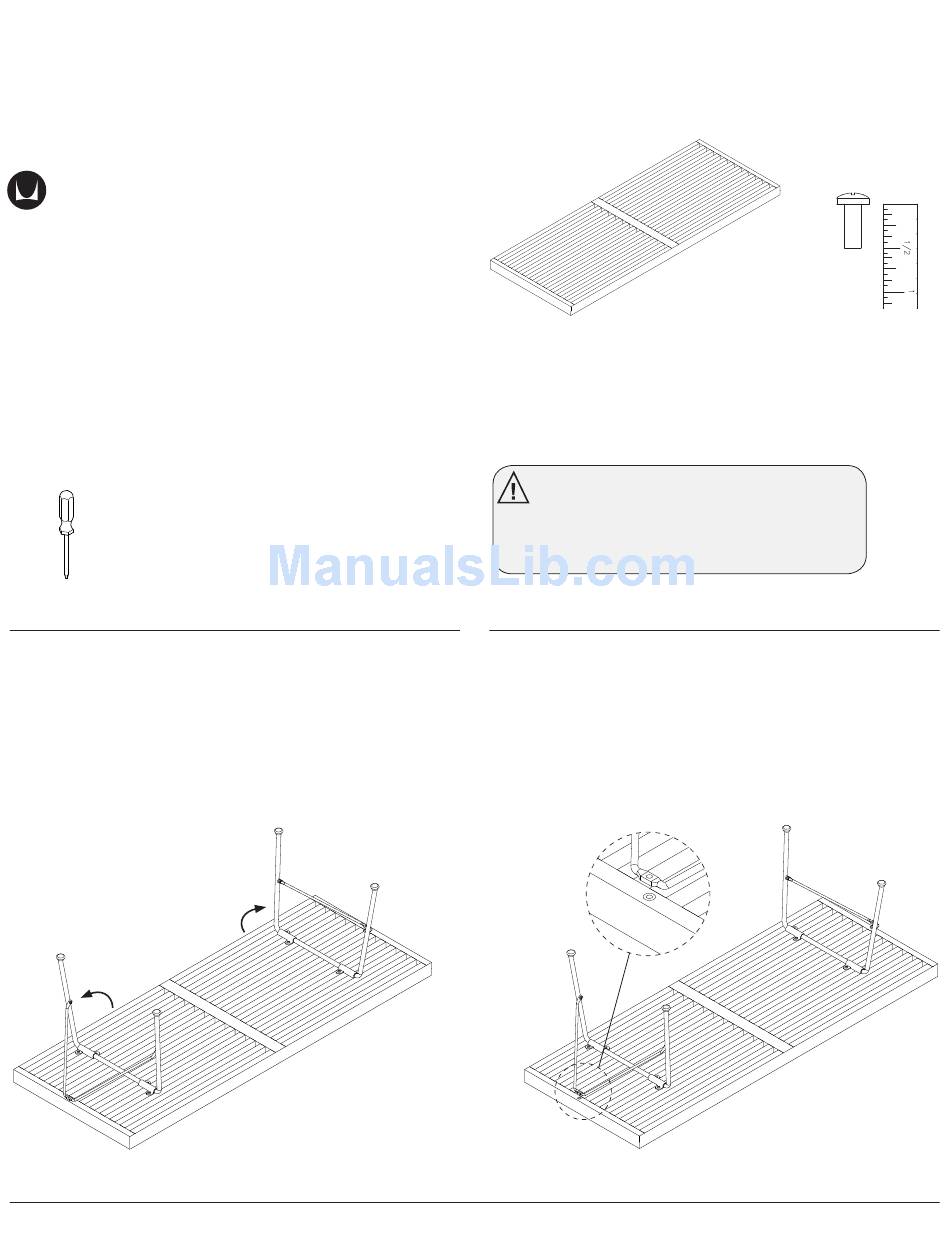

- Page 1 For more information about our products and services or to see a list of dealers, please visit us at hermanmiller.com or call (800) 851 1196. © 2013 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1b9l4t - B.
- Page 2 Step 3 Step 4 Insert machine screws(B) into each leg assembly. Tighten Screws. Place table in upright position. ® HermanMiller Eames Table Assembly Instructions...
