HermanMiller Nevi Height Adjustment Table Installation

HermanMiller

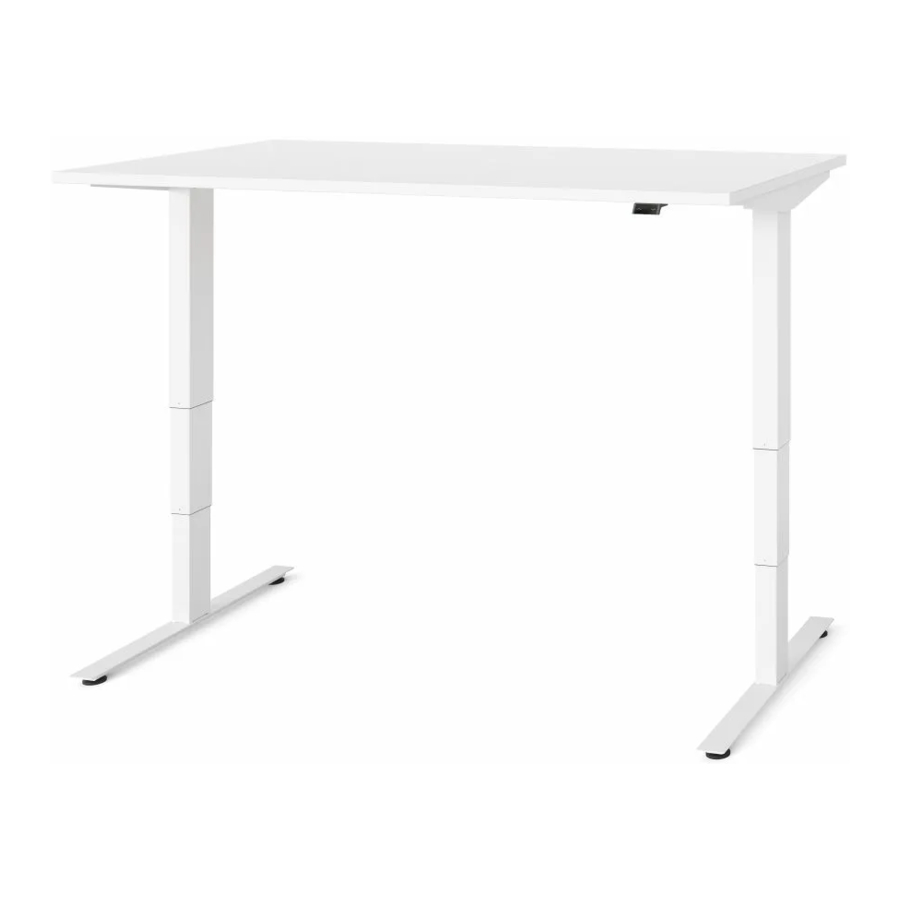

Nevi Height Adjustment Table
Installation
How to assemble your Nevi
Height Adjustment Table
Tools Required
Power Driver Phillips Bit Torque Wrench
Safety Information
Important Safety Instructions save these instructions.
DANGER To reduce the risk of electric shock:
Always unplug this furnishing from the electrical outlet before cleaning.
WARNING
To reduce the risk of death, serious injury, or property damage, read
and follow this safety information and the provided instructions when
assembling this product. Do not change or replace components and
accessories provided.
KEEP AWAY FROM CHILDREN
This table system is not designed for use in homes or other areas
accessible by small children. For indoor commercial office use only.
BE CAREFUL WHEN ADJUSTING DESK HEIGHT
Body parts and property can be caught between the moving work surface and
an immobile obstacle (such as shelves, furniture, window sills, or walls). Keep
at least one inch of clearance around desk and make sure nothing is in table's
path for its entire range of motion.
Before raising or lowering:
•
Check surroundings on all sides of desk are clear
•
Make sure corded objects will not be pulled off table or cause other
objects to fall
•
Make sure desk power cord moves freely as desk moves up and down
HermanMiller
T20 Torx bit 6 mm Hex bit
Parts Included
Full Length (for Tables up to 72")
Cross Beam
Column with independent
Top Support (2) Control Box
12 mm Screw (8)
Independent (for Tables 60" or Less)
Column with independent
Beam/Motor (2)
Top Support (2) Control Box
1"
1"
1 1BNX5K rev E
Screw(8)
Foot (2)
Beam/Motor (2)
M8 x 1.25 M10 x 1.5 Power Cord
30 mm Screw (4)
Foot (2)
M8 x 1.25 M10 x 1.5
12 mm Screw (8) 30 mm Screw (4)
1"
1"
1"
Assembly Instructions
Hand Switch
Hand Switch
Power Cord
