Tools required

#2 Phillips Screwdriver

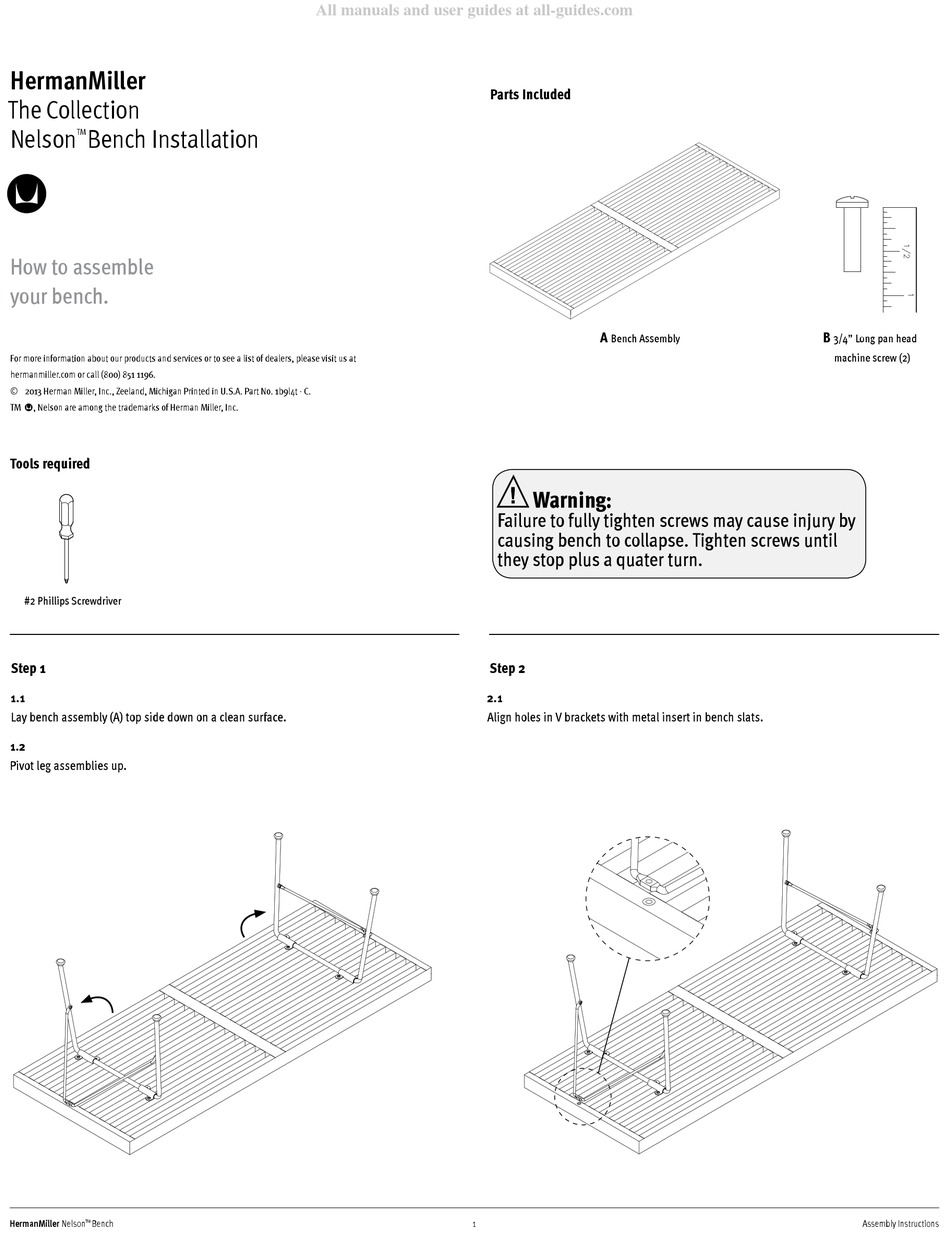

Step 1

1.1
Lay bench assembly (A) top side down on a clean surface.
1.2
Pivot leg assemblies up.

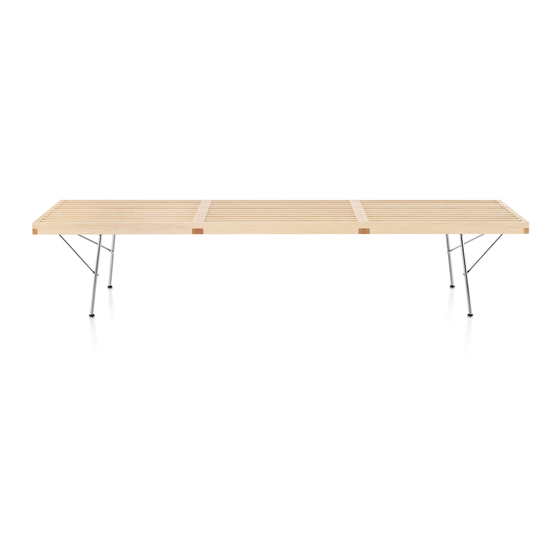

HermanMiller Nelson
TM
Bench
All manuals and user guides at all-guides.com

Parts Included

Step 2

2.1
Align holes in V brackets with metal insert in bench slats.
1
A
Bench Assembly

Warning:

Failure to fully tighten screws may cause injury by
causing bench to collapse. Tighten screws until
they stop plus a quater turn.
B
3/4" Long pan head
machine screw (2)
Assembly Instructions
