HermanMiller 1BNX5K - J Assembly Instructions

HermanMiller
Nevi Height Adjustment Table
Installation
How to assemble your Nevi
Height Adjustment Table

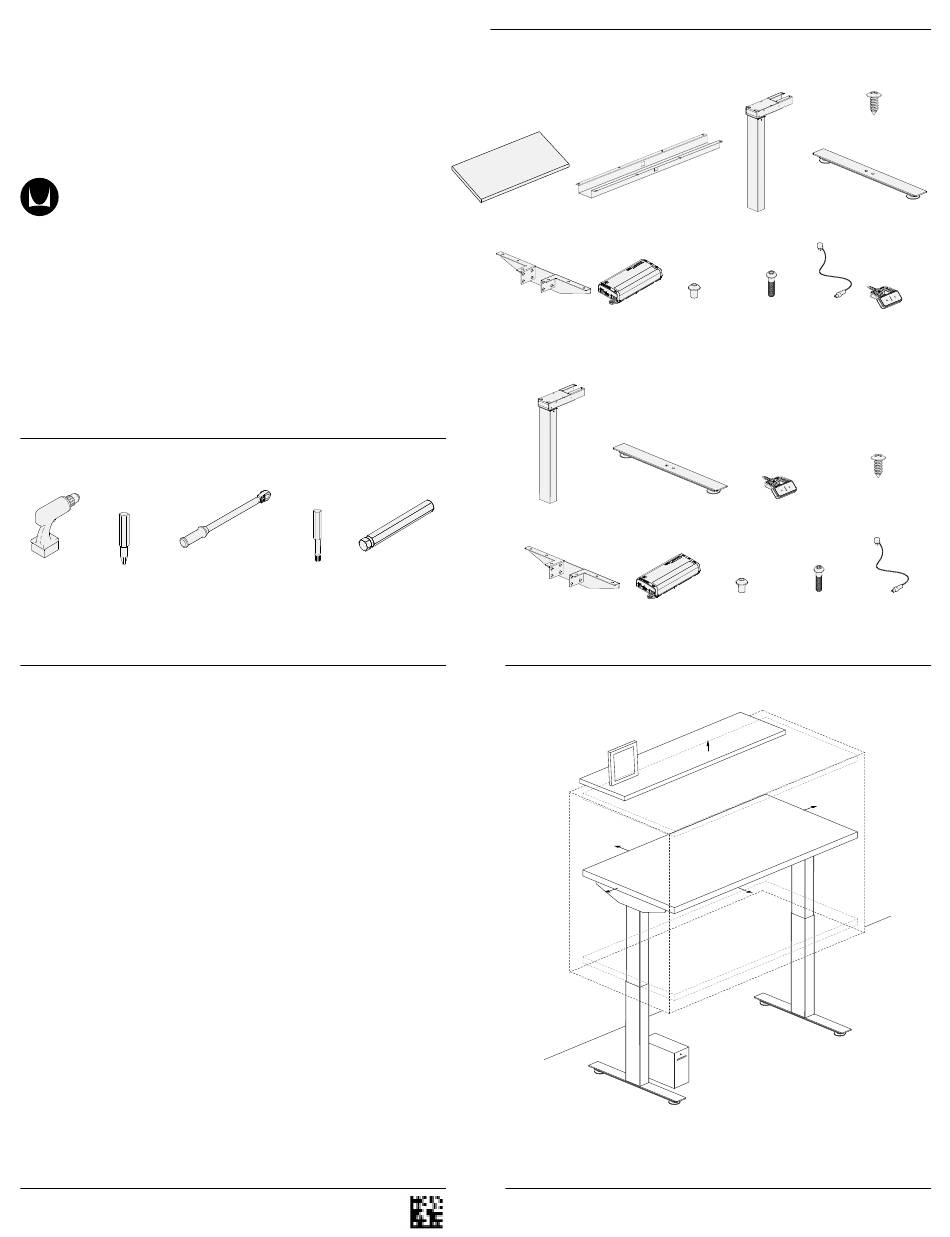

Tools Required

Power Driver Phillips Bit Torque Wrench

Safety Information

Important Safety Instructions save these instructions.
DANGER To reduce the risk of electric shock:
Always unplug this furnishing from the electrical outlet before cleaning.
WARNING
To reduce the risk of death, serious injury, or property damage, read
and follow this safety information and the provided instructions when
assembling this product. Do not change or replace components and
accessories provided.
Close Supervision is necessary when this furnishing is used by, or
near children, invalids, or disabled persons.
BE CAREFUL WHEN ADJUSTING DESK HEIGHT
Body parts and property can be caught between the moving work surface and
an immobile obstacle (such as shelves, furniture, window sills, or walls). Keep
at least one inch of clearance around desk and make sure nothing is in table's
path for its entire range of motion.
Before raising or lowering:
•
Check surroundings on all sides of desk are clear
•
Make sure corded objects will not be pulled off table or cause other
objects to fall
•
Make sure desk power cord moves freely as desk moves up and down
HermanMiller
T40 Torx bit 6 mm Hex bit

Parts Included

Full Length (for Tables up to 72")
Work Surface (A)
Cross Beam (B)
Top Support X 2 (E) Control Box (F)
12 mm Screw X
Independent (for Tables 60" or Less)
Foot X 2 (D)
Column with
Beam/Motor X 2 (C)
Top Support X 2 (E) Control Box (F)
1"
1"
1 1BNX5K rev J
Column with
Beam/Motor X 2 (C)
M8 x 1.25 M10 x 1.5 Power Cord
30 mm Screw X 4 (G)
(L)
8 ( K )
Hand Switch (H)
M8 x 1.25 M10 x 1.5
12 mm Screw X 8 30 mm Screw X 4
(L)
(K)
1"
1"
1"
Assembly Instructions
#10 X 3/4 PH
PHL X 32 (J)
Foot X 2 (D)
Hand Switch
(H)
#10 X 3/4 PH
PHL X 32 (J)
Power Cord (G)
