Crestron TS-1542 Do Manual

DO GUIDE
TS-1542
15.6" HD Touch Screen

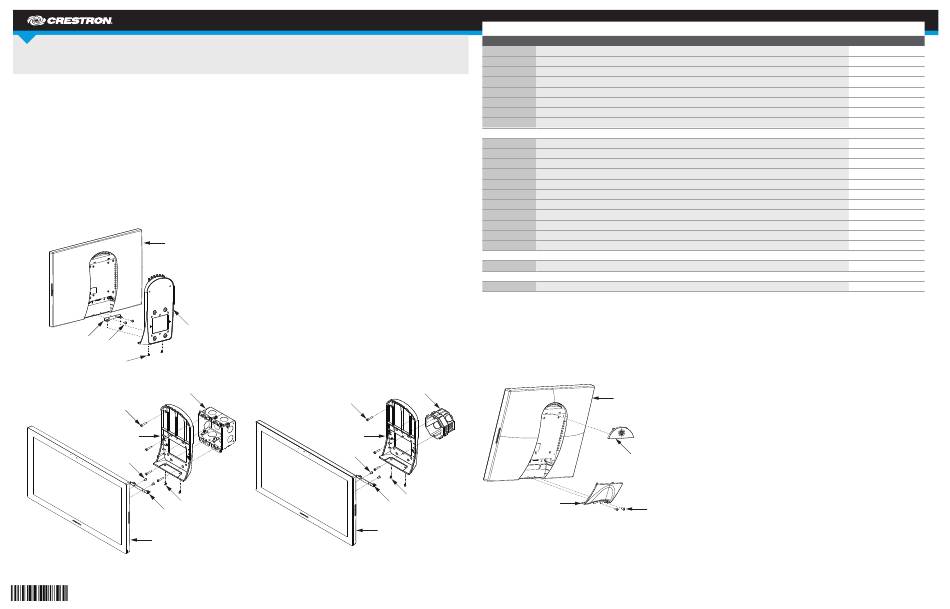

DO Install the Touch Screen
The Crestron TS-1542 touch screen installs easily over a standard, 1-gang (horizontally mounted) or 2-gang U.S., 1- or 2-gang U.K., or 1- or 2-gang
®
European electrical box using the included wall mount bracket. It is also suitable for installation using a VESA mount. The TS-1542-TILT models can be
placed on a tabletop.
Mounting into an Electrical Box
To mount the TS-1542 into an electrical box, use the following procedure:
1. Use the two included 6-32 x 3/8" screws to attach the 2.7" bracket to the rear of the touch screen, as shown in the illustrations that follow step 4.
2. Holding the wall mount bracket in position on the electrical box, mark the location on the wall above the electrical box for the top two holes on the
bracket.
3. Use four appropriate screws (not included) to attach the wall mount bracket to the electrical box. Use the two included anchors and the two
included 6-32 x 1" Phillips screws to secure the wall mount bracket to the wall above the electrical box.
4. Place the TS-1542 in position on the wall mount bracket and secure it with the two included 4-40 x 1/4" Torx
Attaching 2.7" Bracket to Rear of Touch Screen (Exploded View)
TS-1542
Wall Mount Bracket
2.7" Mounting Bracket
Screws (2) 6-32 x 3/8"
Screws (2) 4-40 x 1/4"
Mounting into a U.S. Electrical Box (Exploded View)
Electrical Box
Screws (2) 6-32 x 1"
For Use with #6 Anchors
to Secure Bracket to Wall
Wall Mount Bracket
Screws (2) 6-32 x 3/8"
Screws (2) 4-40 x 1/4"
2.7" Mounting Bracket
TS-1542
® screws.
Mounting into a European Electrical Box (Exploded View)
Electrical Box
Screws (2) 6-32 x 1"
For Use with #6 Anchors
to Secure Bracket to Wall
Wall Mount Bracket
Screws (2) 6-32 x 3/8"
Screws (2) 4-40 x 1/4"
2.7" Mounting Bracket
TS-1542
DO Check the Box
QUANTITY PRODUCT
1 Bracket, Mounting
1 Insert, for TS-1542-IMCW
1 Insert, for TS-1542-IMCW
1 Interface Module, TS-1542-IMCW
1 Power Cord, 5' 10" (1.78 m)
1 Power Pack, 24 Vdc, 2.5 A, 100-240 Vac, 2-Pin Connector
2 Screw, 6-32 x 3/16", Pan Head, Phillips
2 Screw, 6-32 x 1", Flat Head, Slot
Items for the TS-1542-B-S and TS-1542-W-S Only
2 Anchor, Wall, Plastic, #6 x 1-1/4"
1 Bit, Torx, T8
1 Bracket, Wall Mount, 2.70" x 0.31" x 0.52"
1 Bracket, Wall Mount, 4.63" x 8.16" x 1.53"
1 Cover Assembly, Bottom
1 Cover Assembly, Top
2 Screw, 4-40 x 1/4", Flat, Security Torx Head
2 Screw, 6-32 x 3/8", Pan Head, Phillips
2 Screw, 6-32 x 1", Pan Head, Phillips
4 Screw, M4 x 8 mm, Pan Head, Phillips
4 Washer, Lock, M4, 7.6 mm OD, 4.1 mm ID, 0.9 mm TH
Items for the TS-1542-B-S and TS-1542-TILT-B-S Only
1 Cable, Ethernet, CAT5e, 6' (1.83m)
Items for the TS-1542-W-S and TS-1542-TILT-W-S Only
1 Cable, Ethernet, CAT5e, 6' (1.83m)
VESA Mounting
To install the TS-1542 using a VESA-type mount, use the following procedure (refer to the illustration below):
1. Gently snap the included top cover assembly into place on the rear of the touch screen.
2. Use the two included 6-32 x 3/8" screws to attach the bottom cover assembly to the rear of the touch screen.
3. Use the four included M4 x 8 mm screws to attach the touch screen to the VESA mount. If the holes on the VESA mount are large, use the four
included M4 washers to help secure the M4 screws.
VESA Mounting
TS-1542
Cover Assembly, Top
Cover Assembly, Bottom
Screws (2) 6-32 x 3/8"
COLOR PART NUMBER
Black 2016054
Black 4522556
White 4522555
4522550
2042043
4524089
Black 2007203
Black 2013235
2043585
2025915
2043962
4522697
4522696
4523045
Black 2025311
2007231
2007251
2041962
2041964
Black 2045440
White 2045441
