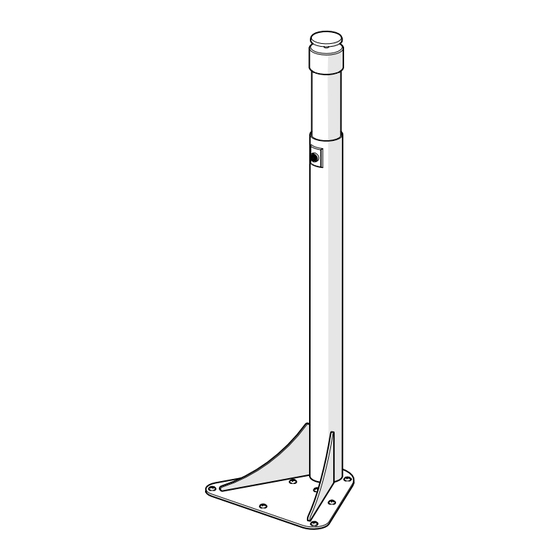

- Page 1 Standing Height Leg ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE DO NOT THROW AWAY! NO LA TIRE NE PAS JETER UPDATED AS OF: 05/14/2021 1 of 5...
- Page 2 Parts List Hardware 66691S 66693S 66691S 66693S 66692S 66694S 66692S 66694S P1 - Leg Receiver A - 3/8”-16 Set Screw P2 - Leg Insert B - #10 x 1” Wood Screw C - Allen Wrench UPDATED AS OF: 05/14/2021 2 of 5...
-
Page 3: Warranty
Find MooreCo Hierarchy Creator Desk @demco.com, search mooreco hierarchy creator desk Call 800.962.4463 or email custserv@demco.com WARRANTY For full product warranty details, please visit: Para obtener información sobre la garantía del producto, consulte este sitio (ingles):... - Page 4 Slide Leg Insert into Leg Receiver to desired leg height. STEP 1 Lock Leg Insert in place with Set Screw (B) inserted through hole in Leg Receiver and STEP 2 aligned with holes in insert. Use Allen Wrench (C) to tighten or loosen Set Screw as needed.
- Page 5 Set leg on table top and align with pre-drilled holes. Secure with wood screws (B) driven STEP 3 directly into surface. THIS COMPLETES ASSEMBLY INSTRUCTION UPDATED AS OF: 05/14/2021 5 of 5...
