Summary of Contents for Mooreco Akt

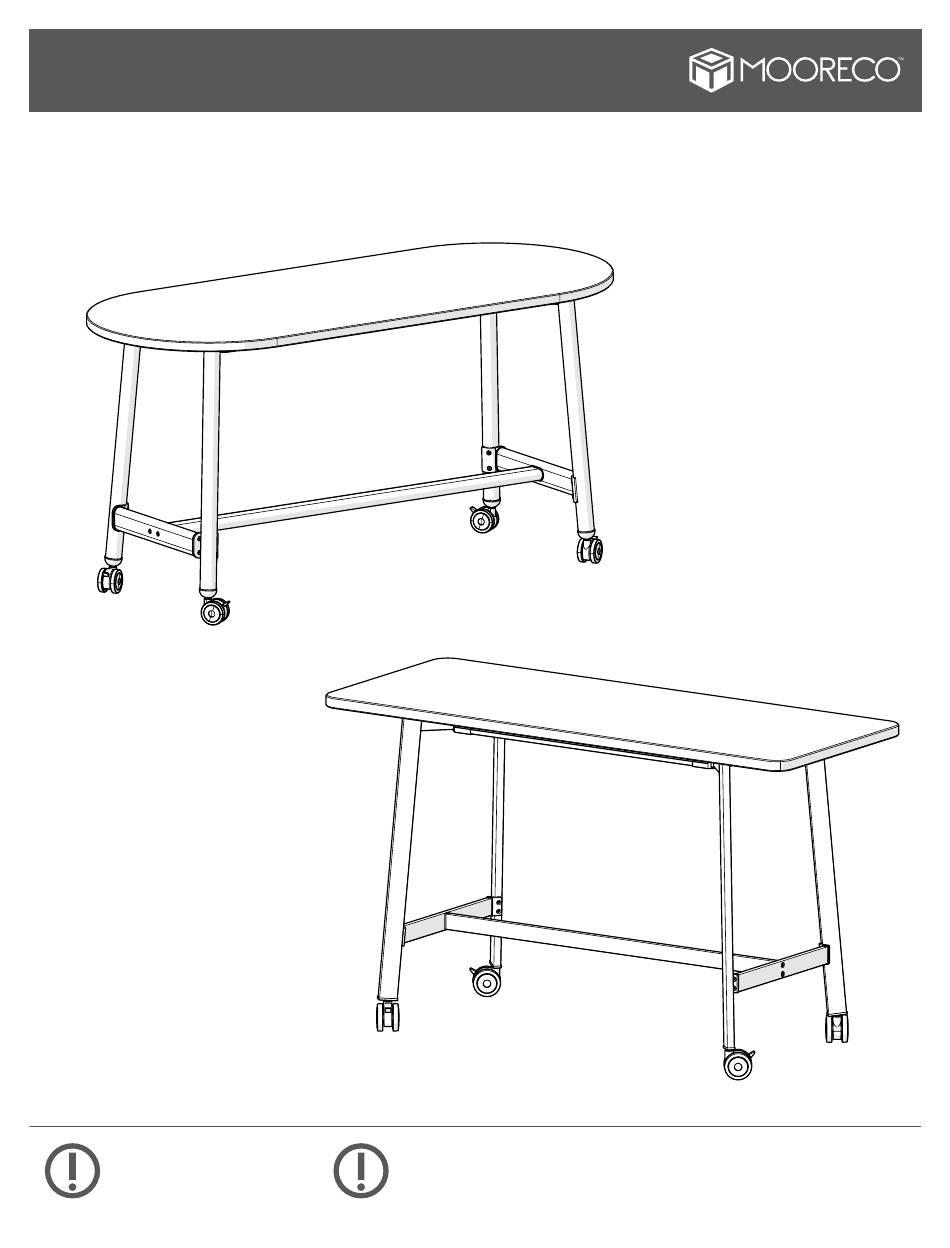

- Page 1 Akt Tables (36”H and 42”H) ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE DO NOT THROW AWAY! NO LA TIRE NE PAS JETER UPDATED AS OF: 04/15/2021 1 of 8...
- Page 2 Parts List - Round Leg Table P1 - Table Top P6 - Long Crossbar P2 - Round Leg P7 - Short Crossbar P3A - Locking Caster P8 (1) - Left Leg Bracket P3B - Non Locking Caster P9 (2) - Right Leg Bracket P4 - Outer Corner P10 - Plastic Cover P5 - Inner Corner...
- Page 3 Parts List - Rect. Leg Table P1 - Table Top P6 - Long Crossbar P2 - Rectangular Leg P7 - Short Crossbar P3A - Locking Caster P8 (1) - Left Leg Bracket P3B - Non Locking Caster P9 (2) - Right Leg Bracket P4 - Outer Corner P10 - Small Plastic Cover P5 - Inner Corner...
- Page 4 WARNINGS AND DISCLAIMERS ADVERTENCIAS Y RENUNCIAS AVERTISSEMENTS Review full assembly instructions and Previo a comenzar el proceso de Avant de commencer l’ assamblage check that all parts are present before ensamblaje favor revisar veuillez consulter instructions beginning assembly. Heavy or large instrucciones y asegurarse que cuenta con complètes et vérifier si vous avez toutes furniture may require multiple persons in...
- Page 5 After placing plastic inserts into frame corners as shown, insert Leg from outside and STEP 1 secure with screw (A) from inside frame, tightening into Leg until snug. Attach short and long crossbars as shown, capping Long Crossbar ends with Plastic STEP 2 Cover before binding at either end with 2 screws (C).
- Page 6 Snap on additional Plastic Covers to exposed ends of Short Crossbars before STEP 3 screwing on Leg Brackets with 2 screws (C) each. Note positions of Left and Right Brackets depicted below. Brackets will be marked with “1” or “2” which should be right side up throughout assembly and attached to appropriate end.
- Page 7 Keeping footrest in same position as previous step (“1” and “2” should NOT be upside STEP 4 down), lower between legs. Aligning Leg Brackets with inside holes on legs, secure to legs with 2 screws (C) per leg. Note that footrest will only fit onto legs one way so if unable to align holes, return to previous step and carefully read instructions.
- Page 8 Attach legs directly to top with 10 wood screws (B) per leg. STEP 5 Insert all 4 Casters by screwing into legs with lock washers. Install Locking Casters on STEP 6 same side of table for easier access. THIS COMPLETES ASSEMBLY INSTRUCTION UPDATED AS OF: 04/15/2021 8 of 8...
