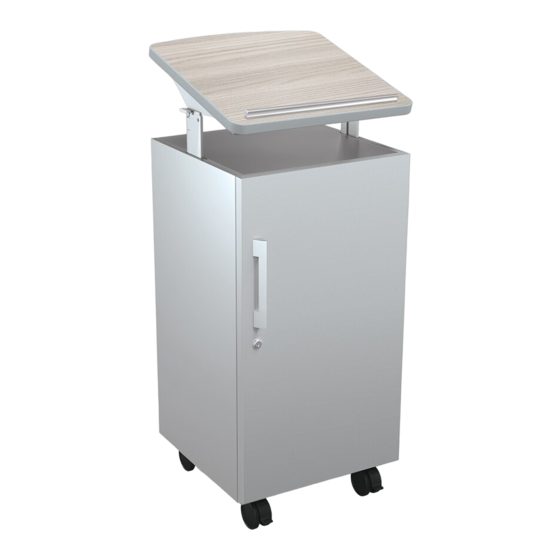

ASSEMBLY INSTRUCTIONS
INSTRUCCIONES DE ENSEMBLAJE
INSTRUCTIONS DE MONTAGE
DO NOT THROW AWAY!
NO LA TIRE
NE PAS JETER
UPDATED AS OF: 01/26/2021
1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the Podium and is the answer not in the manual?

Questions and answers

Summary of Contents for Mooreco Podium

  • Page 1 Podium ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE DO NOT THROW AWAY! NO LA TIRE NE PAS JETER UPDATED AS OF: 01/26/2021 1 of 10...
  • Page 2: Parts List

    P13 - Timing Rod P3 - Back Panel P14 - Shelf Clip P15 - Key P4 - Door P16 - Lock Assembly P5 - Podium Top P17 - Door Hinge P6 - Base Panel P18 - Plastic Cap Hardware P7 - Top Panel...
  • Page 3 WARNINGS AND DISCLAIMERS ADVERTENCIAS Y RENUNCIAS AVERTISSEMENTS Review full assembly instructions and Previo a comenzar el proceso de Avant de commencer l’ assamblage check that all parts are present before ensamblaje favor revisar veuillez consulter instructions beginning assembly. Heavy or large instrucciones y asegurarse que cuenta con complètes et vérifier si vous avez toutes furniture may require multiple persons in...
  • Page 4 Install all 4 casters to Base with 16 screws (B). Locate Locking Casters opposite the STEP 1 side nearest to the grommet. Secure both Left and Right Panels to Base using 4 screws (B). STEP 2 UPDATED AS OF: 01/26/2021 4 of 10...
  • Page 5 Install Back Panel using 6 screws (B). STEP 3 Install Top Panel using four screws (B). STEP 4 UPDATED AS OF: 01/26/2021 5 of 10...
  • Page 6 Loosen set screw on Timing Rod so that it can be shortened. Insert into square slots on STEP 5 both sides of cabinet and once fully extended tighten set screw to lock in place. Attach both Door Hinges using 4 screws (C). STEP 6 UPDATED AS OF: 01/26/2021 6 of 10...
  • Page 7 Attach Door to hinges using 4 screws (C). STEP 7 Attach Handle to Door using 2 screws (D). STEP 8 UPDATED AS OF: 01/26/2021 7 of 10...
  • Page 8 Install Lock Assembly in Door as shown. STEP 9 Place all 8 Shelf Tabs at desired heights STEP 10 inside the podium. Each set of four should be aligned horizontally to ensure shelves are flat. UPDATED AS OF: 01/26/2021 8 of 10...
  • Page 9 STEP 11 Set Shelves inside podium on top of tabs with grommets positioned towards the back of cabinet. Screw Podium Top to adjustable brackets with 4 wood screws (E). STEP 12 UPDATED AS OF: 01/26/2021 9 of 10...
  • Page 10 Install Book Stop onto Podium Top using 2 screws (E). STEP 13 Insert 6 Plastic Caps into threaded inserts in Back Panel and Left Panel. STEP 14 STEP 14 THIS COMPLETES ASSEMBLY INSTRUCTION UPDATED AS OF: 01/26/2021 10 of 10...
