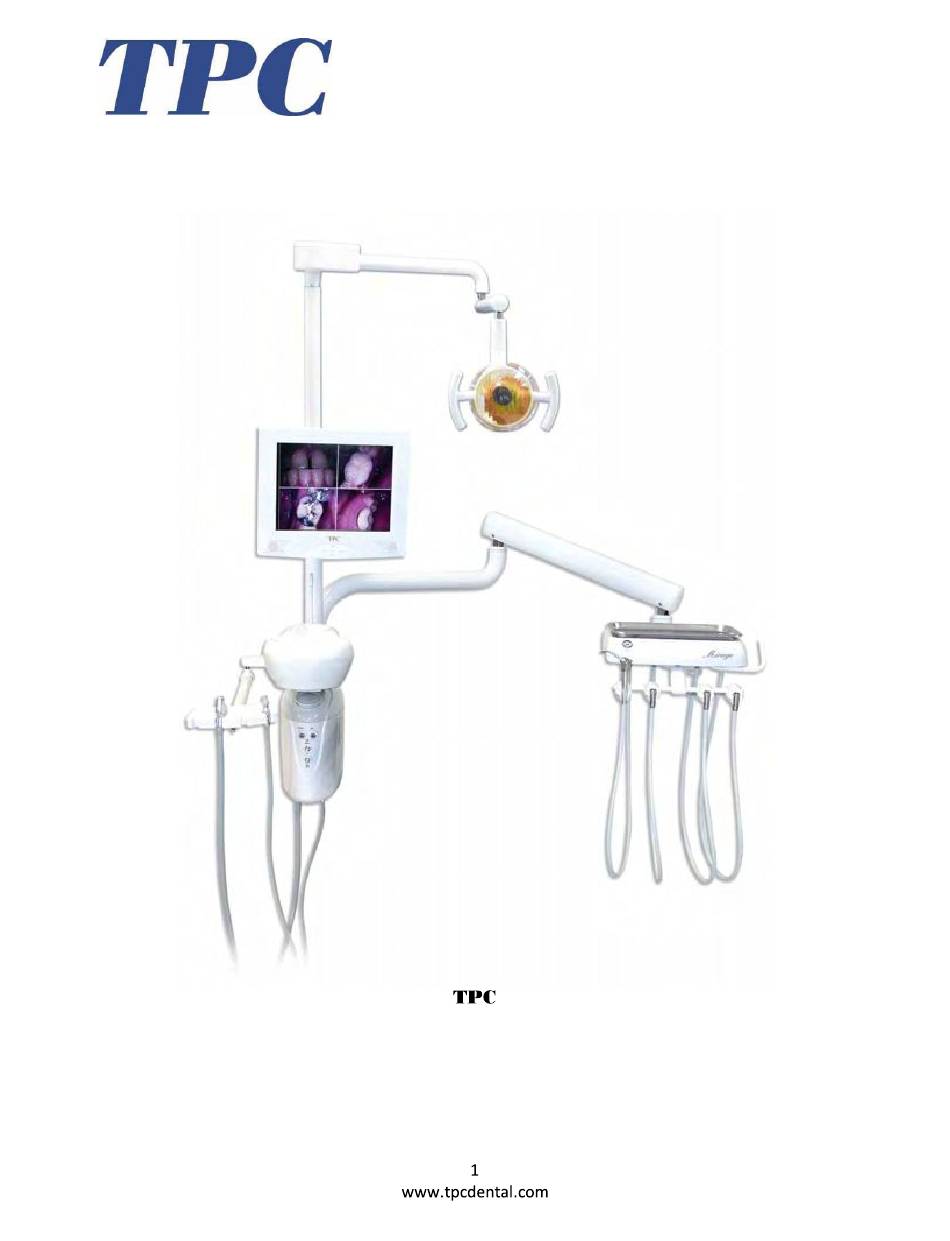

- Page 1 Mirage Dental Delivery Unit Model 2000 / 2015 Installation Instructions 851 S. Lawson St. City Of Industry, CA 91748 P626-810-4337 Fax 626-810-4245 REV. 1-1-13...
- Page 3 Each Mirage delivery unit will contain the following items in each box. 1. Flex arm box. This is the largest box that you will receive with the delivery unit. • Delivery unit flex arm • Assistance arm • Light post •...
- Page 4 1. Locate the four mounting bolts that were included with your dental chair. These bolts are attached to all model 4000 dental chairs. See image below for the location. 2. Remove the mounting bolts and mount the bracket as shown in the image below. 3.
- Page 5 4. Loosen the 8 leveling set screws, and then place the PMU (Post mount utility center) in the cup of the chair bracket. Figure1 Shown in the image below. Center the mounting post in the cup. Also verify if the PMU is aligned straight with dental chair armrest. Then proceed to tighten the set screws.
- Page 6 6. Place the assistant's suction arm on the PMU as shown in the image below. If the arm is not level use the leveling screw shown below (right) to adjust its angle. 7. Remove the PMU side cover. To remove it, pull on the lower lip to detach its magnetic connection.
- Page 7 8. If you are installing a post mounted light insert it as shown in the images below. Make sure you place the cosmetic ring over the light post before inserting. Tighten the set screw to secure the light post in place. 9.
- Page 8 10. You may now remove the plastic from the bundle of tubing s that you fed through in the previous step. Take the touch pad wire shown below and feed it through the chair bracket as shown. 11. Route the touch pad cable along the chair bracket channel. Then feed it through the "cut out"...
- Page 9 12. Take the delivery systems foot control and feed it through the bottom of the PMU. Make the following connections from your foot control to the tubing within the PMU side box. 13. Tubing connections • Grey female from foot control to Black supply to the flex arm. •...
- Page 10 Optional Cuspidor Installation If you are installing the optional 2000-C cuspidor, remove the Cuspidor housing cover as shown. To install the cuspidor, slide the cuspidor into the cuspidor bushing housing. Make sure the cuspidor is completely seated in the bushing. 15.
- Page 11 Cuspidor Plumbing Connections 16. Connect the drain line. Remove the blue locking tab to separate the quick connect from the junction. Insert the removed end into the drain line tubing. Connect the two ends together and replace the locking clip. 17.
-
Page 12: Junction Box Connections
Junction Box Connections 19. Before making any connections in the junction box, be sure to clear the supply lines. If there is any debri in the air line it will collect on the micron filter. Verify the line is clear. 20. -
Page 13: Tension Spring Adjustment
Post mount utility center adjustments (PMU) 1. There are two main adjustments that can be made in the PMU. • Assistant's side syringe block adjustments Turning the screw counter clockwise will increase the air / water pressure. Turning the screw clockwise will decrease the air / water pressure. •... - Page 14 delivery head leveling and tilt adjustments 4. If you need to level the unit head or adjust the tilt use the following adjustments. • Loosen the 4 Allen screws that attach the unit head to the short control arm. See image.
- Page 15 Tubing and connections Junction Box 1. Yellow 6 X 4 Air Supply line 2. Blue 6 X 4 Water Supply line 3. Grey Master Switch Supply 4. Yellow Master switch return 5. Purple Air brake supply 6. Red Spare Post mount utility center (from umbilical to delivery unit arm) 1.
- Page 16 REVISIONS 12.5 ECO No. DESCRIPTION APPROVED DATE 1 INCH WATER 1/2 INCH THREADED PIPE FOR AIR AND WATER QUAD ELECTRICAL QUAD OUTLET ELECTRICAL BOX SUPPLIED BY CONTRACTOR 1.5 INCH FOR ELECTRICAL CONDUIT 1 INCH FOR CENTRAL VACUUM 1/2 INCH CONDUIT FOR ELECTRICAL SPACE FOR TRANSFORMER...
- Page 17 Mirage Delivery System Diagrams and part numbers...
- Page 18 Mirage Sector Head Assembly...
- Page 19 Item Part Number Description Price$ 52001 Plate Base $100.00 52002 Cover- Control Head $100.00 52003 Hand piece Control Block $91.50 52004 Tri-Block Diaphragm $16.00 52005 Holder Asepsis (Cover) $15.00 52005-C Asepsis Holder Complete $30.00 52006 Holder Syringe (Cover) $15.00 52006-C Syringe Holder Complete $25.00 52007 Valve-Flow Control Needle...
- Page 20 Mirage Post Mount Utility Box...
- Page 21 Item Part Number Description Price$ 53001 Frame, PMU $95.00 53002 Support Plate –Clamp $89.60 53003 Support Post $99.00 53004 Front Cover $30.00 53005 Rear Cover $30.00 53006 Top Cover $60.00 53007 Side Cover $60.00 53008 Solids Collector body $33.90 53009 Bracket, Solids Collector $3.95 53010...
- Page 22 Mirage Ridge Arm Assembly Item Part Number Description Price$ 54051 Ridge Arm 54052 Bushing 54053 Bearing 54054 Friction Spacer 54055 Cap Head Screw 54056 Pin, Rotation Stop 54057 Friction Set Screw 54058 Bezel 54059 Washer...
- Page 23 Mirage Flex Arm Assembly...
- Page 24 Item Part Number Description Price$ 54001 Bezel $4.95 54002 Elevation Knuckle $20.00 54003 Control Knuckle $20.00 54004 Cover Flex Arm $100.00 54005 Stabilizer Bar $44.95 54006 End Cap, Flex Arm $19.00 54007 Spring Compression $45.95 54008 Tensioning Screw Cap $15.00 54009 Air Break $100.00...
- Page 25 Mirage Cuspidor – Post Assembly Item Part Number Description 53000 Post Mount Box Sub-Assembly 53050 Cuspidor Sub-Assembly 53051 Cap, Top Cover 53052 Cup Fill Spout 53053 Bowl Rinse Spout 53054 Bezel, Spout 53055 Cup Fill Boot 53056 Bowl Rinse Boot 53057 Bowl Strainer 53058...
- Page 26 Mirage Cuspidor Assembly...
- Page 27 Item Part Number Description 53071 Cuspidor 53072 Chassis 53073 Pivot Tube 53074 Valve Bracket 53075 Bracket, Socket Cup Fill 53076 Bracket, Bowl- Socket 53077 Control Valve 53078 Socket Spout 53079 Block 53080 Bracket Pivot Mount 53081 52007 Needle Valve 53083 Socket Bowl 53084 Gasket...
- Page 28 Mirage Utility Box Assembly...
- Page 29 Item Part Number Description Price$ 53101 Bracket $12.00 53102 Air Regulator $25.20 53103 Water Regulator $25.20 53104 Pressure Gauge $13.00 53105 Air Pilot Valve $44.00 53106 Water Pilot Valve $44.00 53107 Air Filter $2.00 53108 Water Filter $2.00 53109 O-ring $2.80 53110 Dome Nut...
- Page 30 Suction Components Model 2000HVE Part Number Description Price HVEBC Base Connector $10.00 HVELV Lever $5.00 HVEVS Valve Spool $7.00 2000HVE HVE Complete $24.00 57392 O-ring $1.00 67392 O-ring $1.00 77392 O-ring $1.00 Model 2000HVE Short Part Number Description Price HVEBC Base Connector $10.00 HVELV...
- Page 32 Operation and Maintenance Instructions Dental Delivery System...
-
Page 33: Table Of Contents
Control Head and Flex Arm ..........11 Handpiece Flush (Waterline Asepsis) ......... 11 Disinfectant ............... 12 Sterilization ................ 13 Assistant’s Package Care Cuspidor Assembly ............14 Vacuum Utilities ..............14 Cleaning of Solids Collector ..........14 Warranty ..................16 TPC Advanced Technology Page 1... - Page 34 Page 2 TPC Advanced Technology...
-
Page 35: Introduction And Overview
Dental Delivery System Introduction The TPC Dental Delivery System is a modern highly efficient dental delivery system designed for efficiency and convenience in the dental operatory. The unit is shipped pre-assembled and tested, ready for immediate installation. This manual contains detailed information about the operation and maintenance of your delivery system. -
Page 36: Unit Controls Description
Handpiece Autoholders Handpiece selection is automatic. The holders contain actuator valves that allow the operation of the specific handpiece that is lifted from its holder, without the need for a manual selector. Page 4 TPC Advanced Technology... -
Page 37: Dental Delivery System Cuspidor
The water outlet accepts a 1/4" male quick disconnect fitting. This fitting is located at the front of the utility center above the Water Flow Control Valve on the left side next to the Air Outlet. TPC Advanced Technology Page 5... -
Page 38: Dental Delivery System Vacuum Utilities
The water bottle uses 40 psi pressurized air to supply water to the syringe and handpieces. The cup filler and cuspidor bowl rinse remains on a separate line and receives its water supply from the office plumbing. Page 6 TPC Advanced Technology... - Page 39 Other Uses: The water bottle is also an effective tool in reducing the growth of biofilm and maintaining waterline asepsis. It may be filled with waterline treatment products as well as air to purge remaining water. TPC Advanced Technology Page 7...
-
Page 40: General Operation Adjustments
Gradually open the flow control (counter- clockwise) until a fine mist appears around the bur. 3. This setting achieves optimum cooling, while minimizing the creation of potentially hazardous aerosols. Page 8 TPC Advanced Technology... -
Page 41: Drive Air Pressure
1. Remove end Arm Caps from each end of the straight horizontal flex arm. Locate the spring adjusting nut. Continued on next page… TPC Advanced Technology Page 9... - Page 42 Counter-clockwise will decrease the spring tension. • Release the arm brake to test the setting, and make further adjustments as needed to achieve the desired balance. • Re-install the plastic end caps when the adjustment is complete. Page 10 TPC Advanced Technology...
-
Page 43: Delivery Unit Care
The need for this is that the low flow of water through the tubings during normal use can lead to stagnation and the potential growth of biofilm contamination. Continued on next page… TPC Advanced Technology Page 11... -
Page 44: Disinfectant
Damage and discoloration of the surface finishes are not covered under the warranty. **Iodophor-based disinfectants will cause yellow staining on many surfaces. Regular washing with soap and water will minimize this staining. Iodophor neutralizers such as Promedyne are also available. Page 12 TPC Advanced Technology... -
Page 45: Sterilization
Dry heating sterilization is not recommended because of the difficulty in maintaining the precise temperature control necessary to prevent damage to the instruments. Do not microwave vacuum instruments or syringes as this may cause internal damage to your microwave oven. TPC Advanced Technology Page 13... -
Page 46: Assistant's Package Care
Clean the external surfaces of the vacuum instruments using a solution of mild detergent and warm water. Thoroughly rinse the syringe with clear water, then dry with a soft, lint-free cloth. Ultrasonic cleaning is not recommended, as the chemicals used may damage the surface finishes of the instrument. Page 14 TPC Advanced Technology... - Page 47 As Needed Disassemble the valve and lubricate the internal parts when operation becomes stiff or sticky. Clean the inner surfaces and apply a small amount of O-ring lubricant to the moving parts and O-rings. TPC Advanced Technology Page 15...
-
Page 48: Warranty
Warranty, provided the part is returned to our factory with prepaid postage, delivery or freight charges. In the event Warranty service must be performed to correct any defect, only TPC Advanced Technology and / or one of its authorized dealers shall provide same upon mutually agreeable arrangements made in advance.
