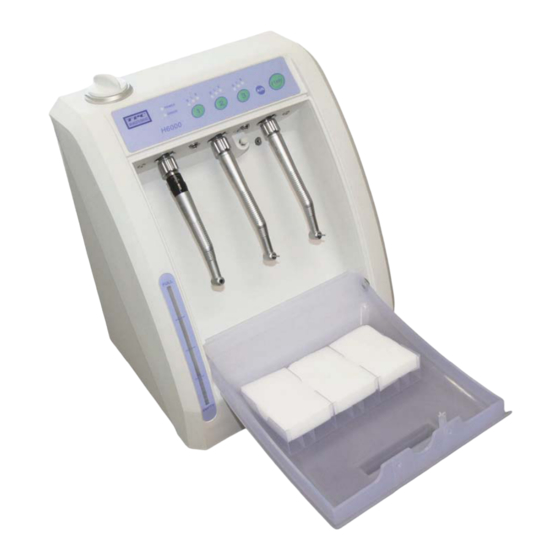

- Page 1 H6000, 6005 & 6025 Handpiece Cleaning and Lubrication System User Manual TPC Advanced Technology 851 S. Lawson St. City Of Industry CA 91748 www.tpcdental.com REV. 1-1-13...
- Page 2 Installation instruction Place the H6000 in a location where you have an air line. Generally this location will be located near your sterilization area. You will also need an electrical outlet, Connect your air line and electrical. Fill lubrication reservoir with the supplied lubrication fluid.
- Page 3 Operation Instructions Open the door and attach up to 3 handpieces to the unit • When attaching high speed handpieces be sure to tighten the handpiece securely to the nut. • When attaching straight noise cone and contra angles, make sure that the latch attach is secure.
- Page 4 After attaching handpieces, close the door. The unit will not operate if the door is not properly closed. Select the S (Short-35 second cycle), L (Long-45 second cycle) or E (Extra long-50 second cycle) for each individual handpiece. If no light for 1,2 or 3 is illuminated the position is turned off.
- Page 5 Press the air button if you wish to run a cycle of only air through your handpieces. This process removes any excess lubrication fluid from the turbine Remove your handpieces from the unit. Lubrication and cleaning is now complete. To remove the handpiece turn the HP nut counter clockwise to un-screw it.
- Page 6 Overview of Controls Air button, only runs Error light will air through the hand Lubrication reservoir illuminate when the pieces. No fill cap. door is opened or there lubrication is being is a malfunction in the discharged. system Start button: Starts the cycle of the H6000 when pressed.
Need help?
Do you have a question about the H6005 and is the answer not in the manual?
Questions and answers
What is the preventative maintenance or general care for this machine in the manual? We have the H6005 SN-103795. I see that the machine it self tells us to drain the filter but there is nothing in the manual.
Preventative maintenance and general care for the TPC H6005 machine include:
1. Lubrication Reservoir Maintenance: Ensure the lubrication reservoir is filled with the supplied lubrication fluid without overfilling. Tighten the oil reservoir cap after filling.
2. Absorbent Pad Replacement: Replace absorbent pads every tank cycle to absorb excess lubrication.
3. Handpiece Attachment Check: Securely attach high-speed handpieces and ensure proper latch attachment for straight nose cones and contra angles.
4. Pressure and Oil Adjustment: Adjust the air pressure and oil dispensing amount before starting a cycle using the respective knobs.
5. Door Switch Check: Ensure the door is properly closed for the unit to operate.
6. Error Light Monitoring: If the error light illuminates, check for an open door or system malfunction.
7. Cleaning Process: Remove excess lubrication fluid from the turbine before proceeding to sterilization.
Regularly following these steps will help maintain the performance and longevity of the TPC H6005 machine.
