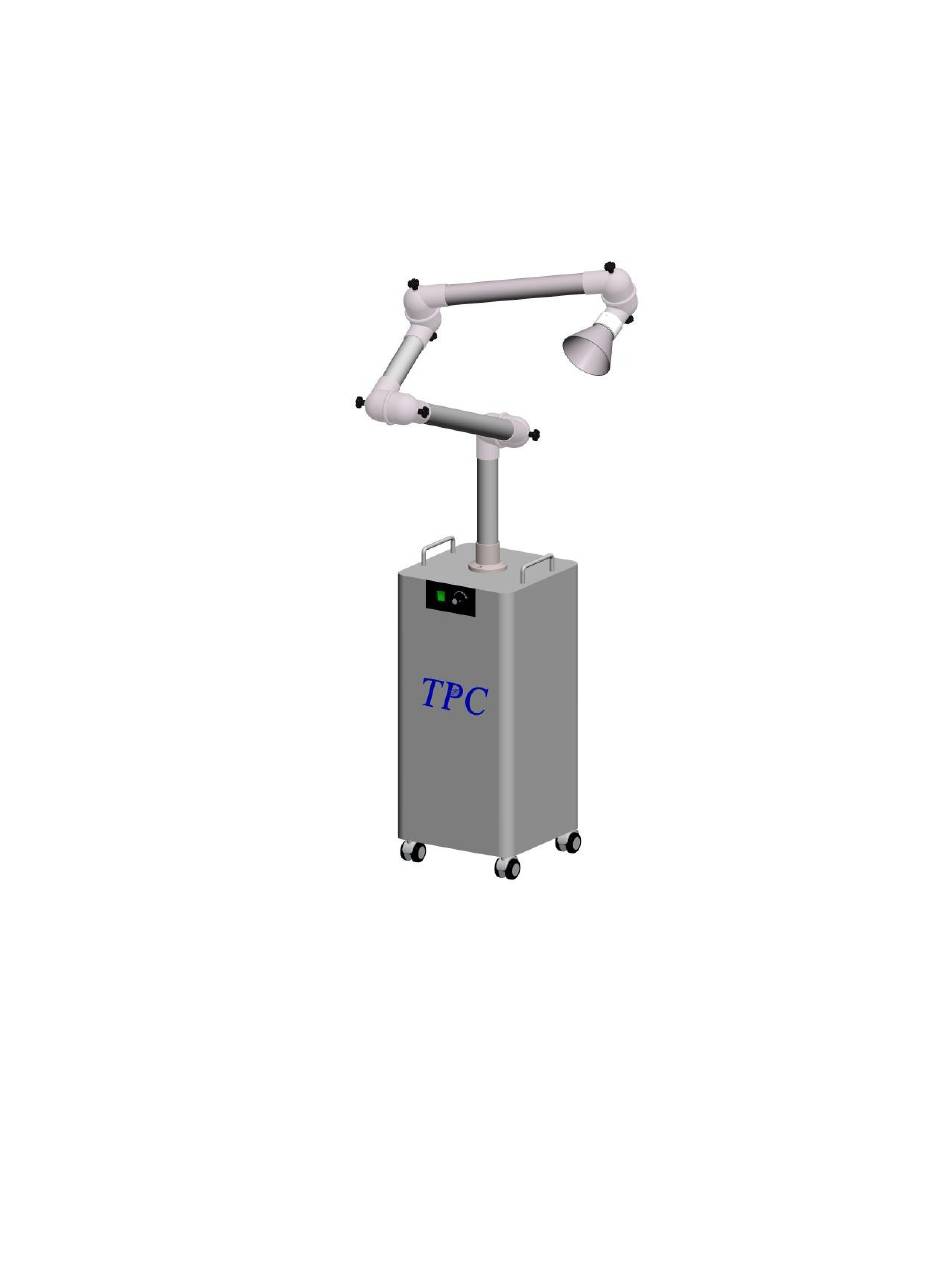

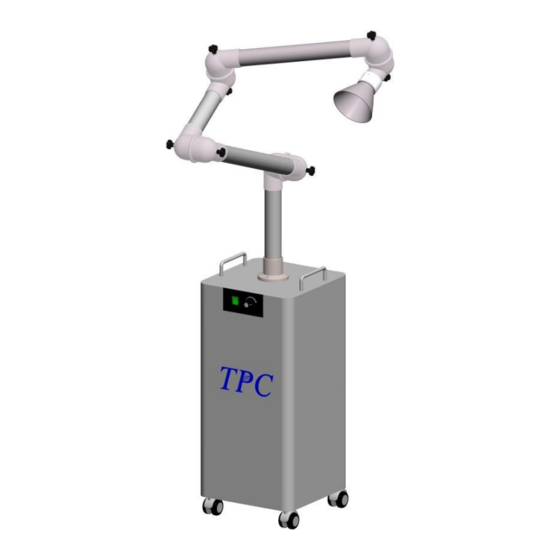

- Page 1 ProClean Extra Oral Suction System Model #PC2800 851 Lawson Street City of Industry, Ca. 91748 P. (800)-560-8222 www.tpcdental.com...
-
Page 2: Table Of Contents
Contents 1. Overview ...........................2 2. Technical Specifications ....................4 3. Product Structure and Installation ..................6 4. Maintenance ........................8 5. Trouble-shooting .......................8 6. Electric principle diagram ....................8 7. Disposing notes .........................9 8. Packing list ........................9... -
Page 3: Overview
1. Overview Thank you very much for choosing to the ProClean Extra Oral Suction System. Please read this instruction manual and the accompanying materials in detail. The ProClean is covered by a 2 year warranty (not including replacement filters and uv lamp) 1.1 Contents... - Page 4 without authorization, and can only be repaired by the manufacturer or authorized service provider. Damaged power cord. The device does not work properly. The device is damaged. Water entered in the device. The device runs loudly or has a harsh sound, the output air is overheated, and an unpleasant odor is emitted.
-
Page 5: Technical Specifications
： Name T PC ProClean Extra Oral Suction Model ： M odel PC2800 ： Voltage/Frequency A C 220V / 50 Power ： 1 250W Noise ： ≤ 70dB Suction rate / wind pressure ： 3 000L/min （ 5 KPA ）... - Page 6 Radio frequency frequency emission is very low, and the interference to nearby electronic equipment may be very small. emission GB4824 Harmonic emission Not applicable Dental electric suction machine is suitable for non- GB 17625.1 domestic use and all facilities that are not directly Voltage fluctuation / connected to the public low-voltage power supply network flicker...
-
Page 7: Product Structure And Installation
environment. Note ： UT refers to the AC grid voltage before applying the test voltage 3: Product Structure and Installation 3.1 Structure diagram: 3.2 Installation procedure: 3.2.1 Open-package Inspection Open the package, and check whether the device is in good condition, check complement of unit, spare parts and consumable parts according to the packing list. - Page 8 Working principle for ProClean Extra Oral Suction System ❶ Primary Filter Washable synthetic fiber, high-efficiency filter can Washable primary filter effectively remove the Period Frequency: 15-30 days droplets and aerosol particles, absorb water vapor ❷Secondary Filter Secondary filter HEPA-13 filter it can effectively Period Frequency: 6-8 month filter out 99.95% solid particles...
-
Page 9: Maintenance
4.2 Clean the primary filter regularly (wash with water once every month). 4.3 Maintain and replace HEPA filter and exhaust filter, ultraviolet lamp once a year. 4.4 ProClean Extra Oral Suction System: When not in use, store in a dry and ventilated place. 4.5 Replacement Filters & Items:... -
Page 10: Disposing Notes
7: Disposing notes Following requirements shall be followed as stored: • Disconnect the appliance from power. • The components of the product are non-toxic, dispose of the appliance should following all environmental regulations. Product name Unit Quantity Suction device + free arm component Suction cover : Packing list Instruction manual...
