TPC LED 55BN User Manual

Built in led curing light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TPC
User Manual
LED 55BN
Built In LED Curing Light
• All instructions in this USER'S MANUAL must be completely read before installation or operation.
REV. 1-1-13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED 55BN and is the answer not in the manual?

Questions and answers

Related Manuals for TPC LED 55BN

Summary of Contents for TPC LED 55BN

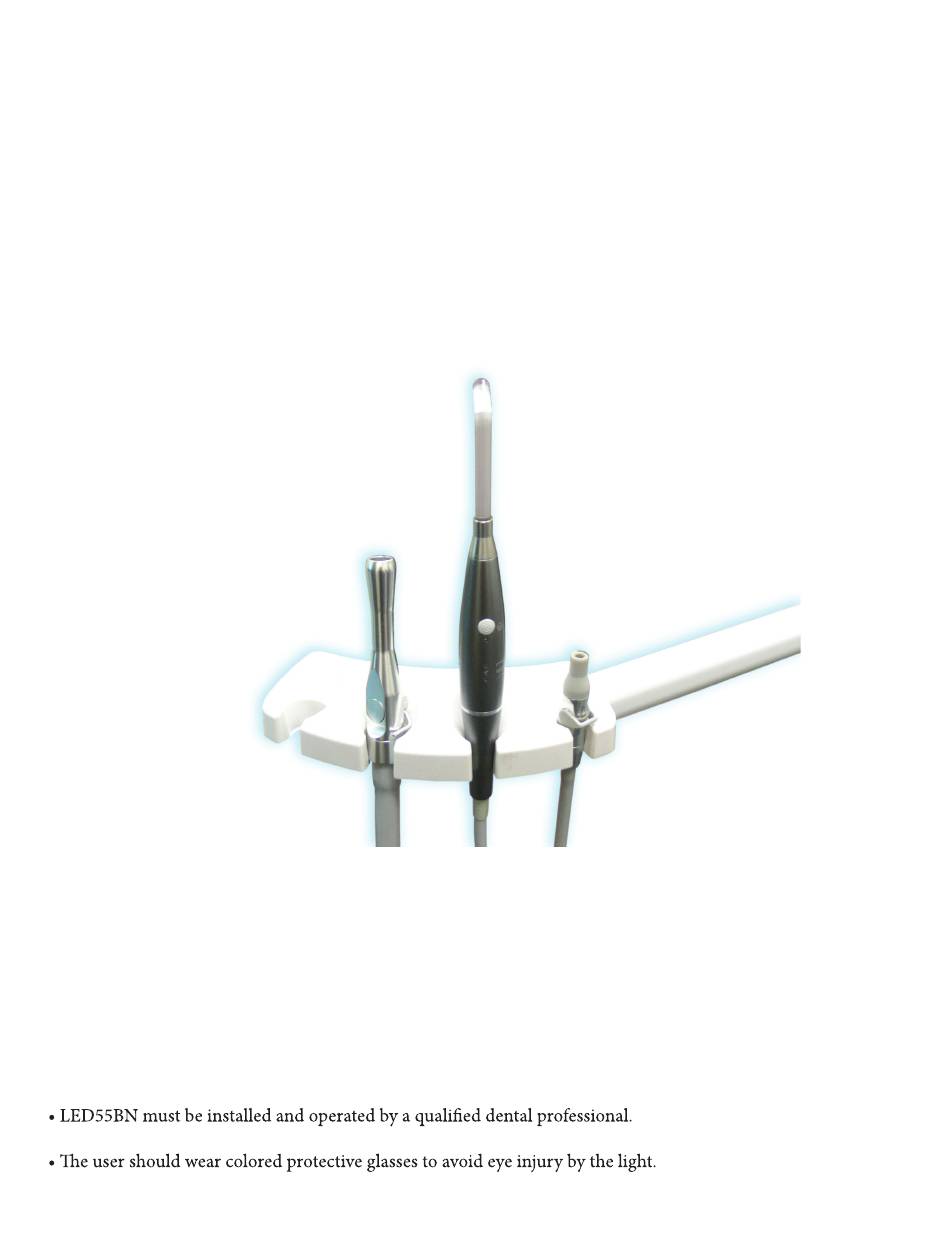

  • Page 1 User Manual LED 55BN Built In LED Curing Light • All instructions in this USER’S MANUAL must be completely read before installation or operation. REV. 1-1-13...

  • Page 2: Table Of Contents

    Table Of Contents 1. INTRODUCTION 1.1 TECHNICAL INFORMATION 2. FEATURES 3. ACCESSORIES 4. INSTALLATION 5. OPERATION 6. MAINTENANCE 7. TROUBLESHOOTING 8. WARRANTY...

  • Page 3: Introduction

    1. INTRODUCTION Thank you for purchasing the LED 55BN curing light. The LED 55BN is a dental curing light which uses the latest LED technology to polymerize composite resin. Caution Attention: Important information is being presented. Refer to the Operator’s Manual for more informa tion.

  • Page 4: Features

    4. Timer The Led 55BN has a fixed timer. The unit will cure for a total of 20 seconds. At 10 seconds the light will “beep” indicated that you have reached the 10 second time mark. At 20 seconds the light will “beep”...

  • Page 5: Accessories

    3. Accessories 1. Curing Light Handpiece 2. Power Supply 3. Oval Protector 4. Light guide PN: LED55BHP LED55B PSW PN: P219 PN: P109 5. LED55BN HP tubing 6. Function Switch 4. Installation Step 1 : Connect Power Adapter to input to power supply.
  • Page 6 4. Installation continued..Step 2: Attach the HP tubing to the main power adaptor as shown. The connector will only fit one way so do not force it into place. Step 3: Attach the HP tubing to the back of the curing light. Once the threads are aligned, turn the light clock- wise to fasten it onto the tubing.

  • Page 7: Operation

    5. Operation A. Set Curing Program Press and hold the function switch for two seconds and you will see the modes change every second. To stop on the desired mode simply let go of the depressed button for the desired mode. FAST PULSE Function...

  • Page 8: Maintenance

    6. MAINTENANCE 1. Be sure there is no resin or material sticking to the surface of the light guide. 2. If materials are sticking on the light guide immediately clean it with soft cloth. Keep light guide clean for better light intensity and curing performance.

  • Page 9: Warranty

    All of our products sold are guaranteed to be free from defects in workmanship and materials for a 1 year from date of purchase, unless otherwise stated. TPC will repair or replace any defective part at no charge. During the warranty period.
