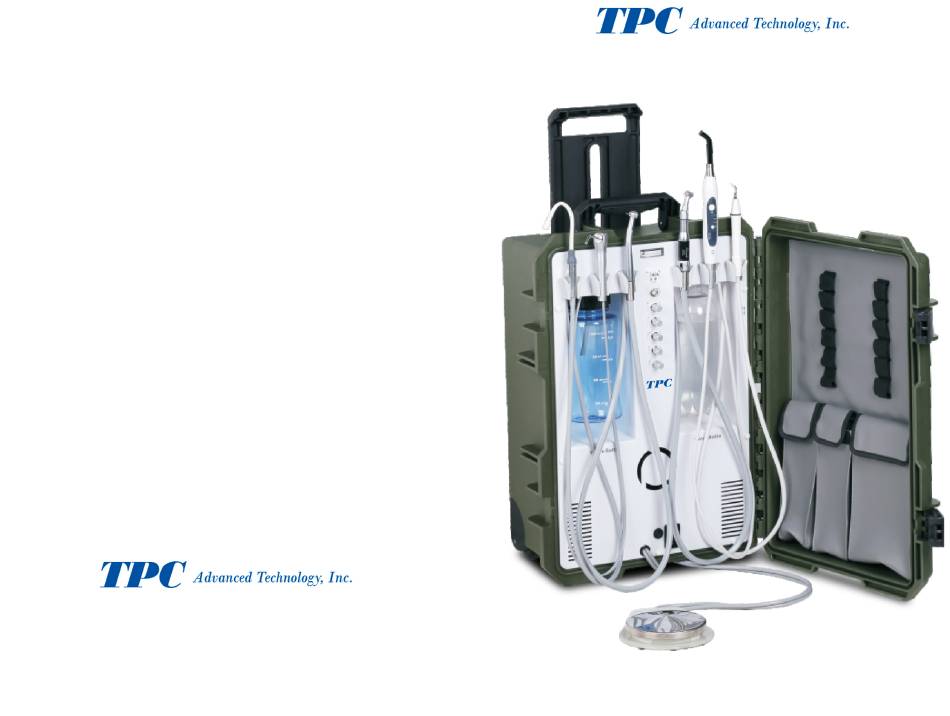

Page 1
TPC will repair or replace any defective part at no charge. TPC will not be responsible for labor charges or shipping charges to / from the TPC facility. This guarantee does not cover normal wear or stains on surface finish.
Page 2
Notice: Risk of losing accessories and documents Low handpiece pressure: Try adjusting the HP pressure using the adjustments in operation of controls. Caution: Risk of injury or malfunction If adjustment knobs do not adjust the pressure, check both HP positions. If Read carefully of the manual. the result is the same on both positions the main regulator may need adjusting. Call support for further instructions. Ground Protective Unit is very loud when the Verify shipping screw have been motor is running. removed. Electron garbage bin If you hear a consistent pop sound Unit make a pop sound when while motor is running, discontinue Producing date the compressor is running: use immediately. The safety pressure valve is active. This Valve releases excessive pressure in the event the automatic pressure shut off fails. Contact TPC support for further Off instructions. O...
Page 3
Replacement Components Note! You must remove the two shipping bolts located on the bottom of unit. Failure to remove will result in excessive vibration. Clean Water Bottle Waste Bottle Optional Replace when transporting unit. 700ML Stainless Steel Tray Remove two shipping bolts container: Door Mounted located on bottom of unit prior to use. Failure to remove will result in excessive vibration. An Allen wrench has been included with your package for removal. Do not discard the bolts and wrench. Part Number: Part Number: Part Number: Saliva Ejector Valve Saliva Ejector Spool Saliva Ejector Tip 5pk Connect power cable to inlet power port on the display of the unit as shown. Replacement Power Cord: Part Number: PC2630N-PC Part Number: P2169 Part Number: P2340 Part Number: P2185 3-Way Syringe Press LED 39 Replacement 3-Way Syringe Style Light guide Replacement Tips: 5Pk Turn the power switch to the “on” position and the unit’s air Part Number: Part Number: P109-LG...
Page 4
Operation of controls Working Principal of unit diagram HP Pressure Adjustment: Adjustment screws. To adjust the HP air pressure use the adjustments shown. Turn clockwise to decrease pressure. Counter clockwise to increase pressure. HP Selector Switch: PC2630 Use this switch to select the desired HP position. Both HP positions have the ability to operate as a Hi or Slow speed position. HP Selector Switch: PC2930 The PC2930 portable unit uses an automatic HP selector switch for each HP, Se valve and Scaler activation. Remove the desired HP from the holder and it will be activated and ready to use. Only use one HP at a time. General Service after use!
Page 5
Remove Waste Container: Operation of controls Turn waste container counter clockwise to remove. Clean Water Bottle Switch: with running water and Turn this switch to the “ON” disinfect with suitable position to pressurize the solution. Do not autoclave the bottle system. Turn to the waste container! “OFF” position to depressurize the system. Removal of water bottle: Water Flow control for HP1: Turn water bottle switch to To adjust the water flow to the off position: when the air the HP use the adjustment purge is complete, turn the knob shown. Turn clockwise to bottle counter clockwise to decrease water supply. remove. Counter clockwise to increase water supply. Wiping the unit: Water Flow control for HP2: Don’t spray any chemicals To adjust the water flow to directly on the face of the the HP use the adjustment dental unit. To clean, spray a knob shown. Turn clockwise to cloth and wipe clean. Take decrease water supply. caution when cleaning around Counter clockwise to increase the electrical outlet.
Page 6
Operation of controls General use Instructions Scaling Optional: Attaching the scaling tip: The tip must be screwed and Water adjustment for optional moderately tightened by means built in scaler. Turn clockwise of the corresponding wrench. If to decrease water flow. Turn tip is not secure, vibration to the counter clockwise to increase tip may be decreased. water flow. The tip must be screwed and Optional: moderately tightened by means Frequency adjustment knob of the corresponding wrench. If for built in scaler. tip is not secure, vibration to the Turn Clockwise to increase tip may be decreased. frequency. Turn counter clockwise to decrease *To remove sclaer handpiece from tubing, Gently pull straight off. Don’t frequency. turn / twist or damage to tubing pins will occur. General use Instructions Curing General use Instructions Insert light guide tip into light. Turn power on master switch to “ON” position. • Attach desired HP to HP tubing. • Press the unit foot control to supply air pressure ot the HP. • Using the handpiece pressure adjustment set the required HP • pressure to the HP. Place Blue light shield over Adjust the water flow out of the HP using the water control knob.
