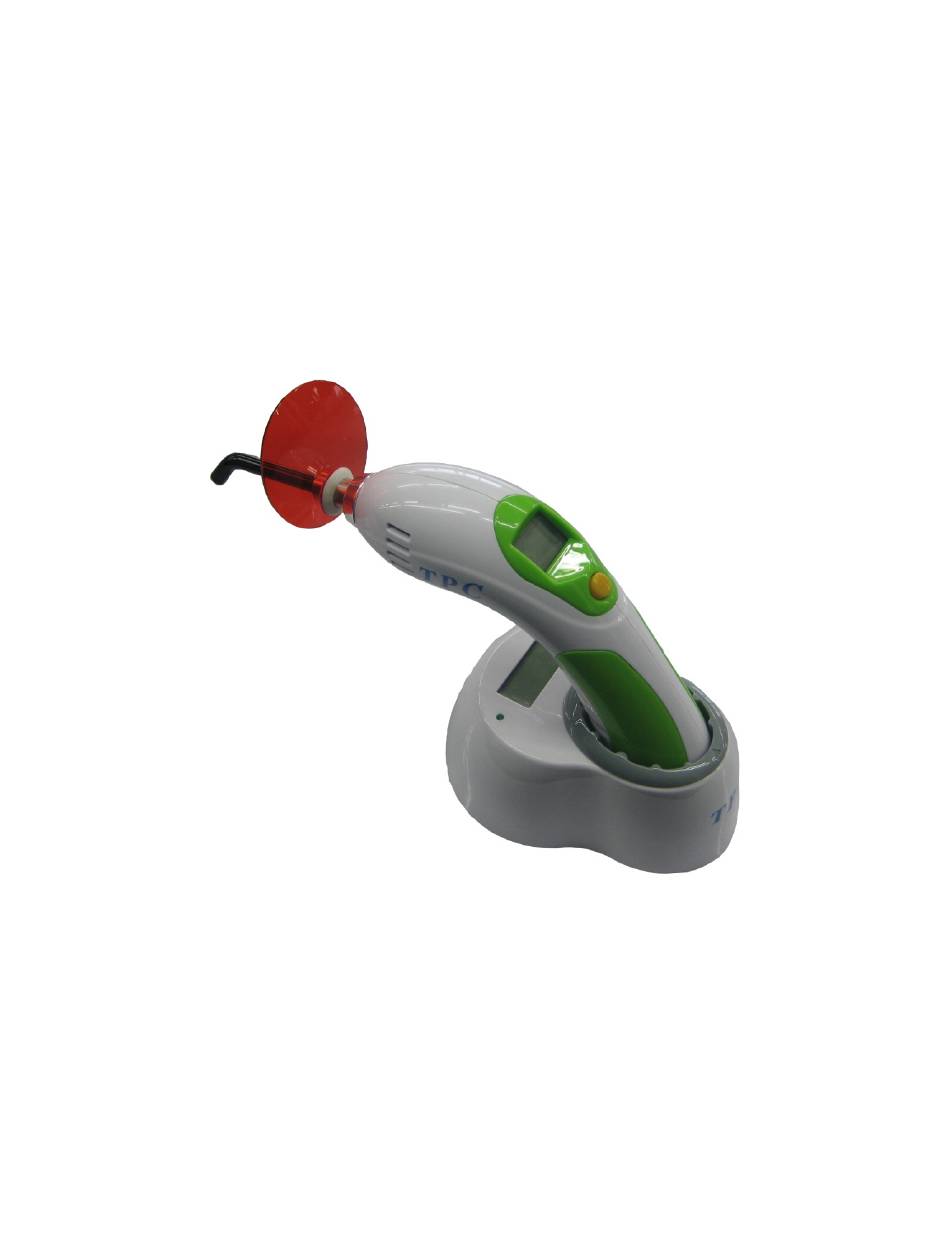

TPC LED 70N User Manual

Cordless led curing light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TPC
User Manual
LED 70N
Cordless LED Curing Light
• LED70 must be installed and operated by a qualified dental professional.
• All instructions in this USER'S MANUAL must be completely read before installation or operation.
• The user should wear colored protective glasses to avoid eye injury by the led light.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED 70N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TPC LED 70N

Summary of Contents for TPC LED 70N

  • Page 1 User Manual LED 70N Cordless LED Curing Light • LED70 must be installed and operated by a qualified dental professional. • All instructions in this USER’S MANUAL must be completely read before installation or operation. • The user should wear colored protective glasses to avoid eye injury by the led light.

  • Page 2: Table Of Contents

    Table Of Contents 1. INTRODUCTION 1.1 TECHNICAL INFORMATION 2. FEATURES 3. ACCESSORIES 4. INSTALLATION 5. OPERATION 6. MAINTENANCE 8. WARRANTY 9. TROUBLESHOOTING...

  • Page 3: Introduction

    1.INTRODUCTION Thank you for purchasing the LED 70N curing light . The LED 70N is a dental curing light which uses the latest LED technology to polymerize composite resin Caution Attention: Important information is being presented. Refer to the Operator’s Manual for more informa tion.

  • Page 4: Features

    4 hours. 7. Sleeping Mode If the LED 70N is unused for a period of 3 minutes the curing light will convert to “Sleep Mode” to conserve the battery. 8. Auto Memory LED 70N will remain in previous settings.

  • Page 5: Accessories

    3. Accessories 1. Curing Light Handpiece 2. Charging Base 3. Oval Protector 4. Light guide 5. Switching Power Adapter 6. Funchion Switch 7. Curing Switch 4. Installation Step 1: Remove the battery cover located on the side of the handpiece. Connect the battery terminals and install the side cover.

  • Page 6: Operation

    A flashing battery symbol indicates the battery should be recharged or user can directly connect it to the power supply for uninterupted use. LED 70N will detect the charging automatically. There will be one short beep tone generated when it has been properly put on to the Charging Base.
  • Page 7 B. Set Timer Press function switch to select curing time between 5, 10, 20, 30, and 40 seconds. • When choosing PULSE or RAMP, the curing time will start at 10 seconds automatically. C. Start to Operate Press curing switch to begin curing program. To interrupt a program, just press curing switch again. When the curing program is complete the curing light handpiece will beep and then turn off the light immediately.

  • Page 8: Maintenance

    All of our products sold are guaranteed to be free from defects in workmanship and materials for a 1 year from date of purchase, unless otherwise stated. TPC will repair or replace any defective part at no charge. During the warranty period.

  • Page 9: Warranty

    Email Address_____________________________________________ Model: LED 70N Handpiece: SN________________ Base: SN_____________________ Please complete this card and return it to TPC. Include a copy of your invoice or packing slip. Return to: TPC Advanced Technology 851 S. Lawson St City Of Industry, CA 91748...
