Summary of Contents for OCULUS UB 3+

  • Page 1 OCULUS Universal-Messbrille UB 3+ Gebrauchsanweisung Instruction Manual Manual de Instrucciones Mode d’emploi Instruzioni per l’uso...

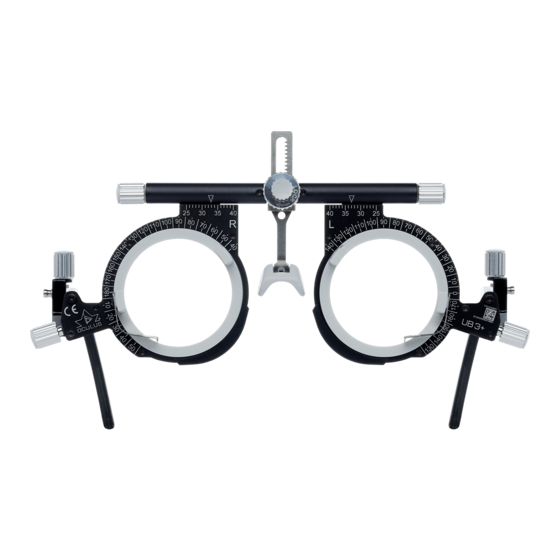

  • Page 2 English OCULUS Universal Trial Frame UB 3+ Instruction Manual...
  • Page 3: Table Of Contents

    Content Technical data ������������������������������������������������������������������������������������������������������������������������������������������������21 Overview ����������������������������������������������������������������������������������������������������������������������������������������������������������22 Intended use ���������������������������������������������������������������������������������������������������������������������������������������������������24 Product specifications ��������������������������������������������������������������������������������������������������������������������������������24 Operating instructions �������������������������������������������������������������������������������������������������������������������������������24 Polarizing filter (optional) ���������������������������������������������������������������������������������������������������������������������������28 Intended use ���������������������������������������������������������������������������������������������������������������������������������������������������28 Operate polarizing filter ����������������������������������������������������������������������������������������������������������������������������29 Cleaning and care �����������������������������������������������������������������������������������������������������������������������������������������30 Warranty ����������������������������������������������������������������������������������������������������������������������������������������������������������30...
  • Page 4: Technical Data

    Technical data Universal Trial Frame UB 3+ Scope of delivery PD-adjustment range 50 - 80 mm OCULUS Universal trial 42100 frame UB 3+ Scale division PD 1 mm Weight approx. 52 g nose pad Arm length 96 - 132 mm...
  • Page 5: Overview

    Overview...
  • Page 6 Knob for adjusting the pupillary distance Scale for reading the axis and basic position; (PD) in compliance with the Tabo graduated dial scale according to DIN EN ISO 8429 Knob to adjust the height and lock into place the toothed rack with the nose pad Lens holder, front Clamping screw for locking the rack with Lens holder, back...
  • Page 7: Intended Use

    Intended use Contraindication The OCULUS Universal Trial Frame UB 3+ is used - none known - for subjective determination of lenses. Only use Possible side effects OCULUS tls trial lenses with a diameter of 38 - none known - mm that comply with DIN EN ISO 9801.
  • Page 8 Reading off the respectively adjusted Adjust the height of the nose pad: corneal-vertex distance (CVD) at the Slightly loosen the clamping screw ③ to ȣ sight/optical rods ⑥: adjust the height of the nose pad using the knob ②. Tighten the clamping screw again. ȣ...
  • Page 9 Change the VD: Adjust and read the PD: Pivot the rack ⑬. Turn the knob ①. ȣ ȣ Take a reading of the PD at the respective ȣ scale ⑤ and marking ④. Set the axis position for trial lenses with cylindrical power and/or the basic position of trial lenses with prismatic power:...
  • Page 10: Polarizing Filter (Optional)

    The polarizing filter are used for the separation of visual impressions of both eyes during refraction. They are exclusively intended for used with the OCULUS Universal trial frame UB 3+/3 (item no. 42100 /42180). Polarizing filter Resistance of the knobs for the axis or to Hegener (45851) base position ⑬:...
  • Page 11: Operate Polarizing Filter

    Operate polarizing filter Attach polarizing filter: ⓓ Hang the polarizing filter with its holder ȣ into place at the centre of the universal trial frame. Marker Knurl wheel for turning the polarizing filter Polarizing filter Holder of the polarization filter Change the polarisation direction: ⓑ...
  • Page 12: Cleaning And Care

    Cleaning and care Clean UB and optional equipment when ȣ necessary with a soft, lint-free cloth only. In case of heavy soiling we recommend using ȣ washing-up liquid on a moistened cloth. Never use aggressive, chlorine-containing, ȣ abrasive or harsh detergents, pure alcohol, ether or similar solvents.
  • Page 13: Warranty

    This warranty shall not cover cases of normal wear and tear, improper use or use of non-OCULUS replacement parts. For information on warranty in accordance with §377 of the German Commercial Code (HGB), please refer to our General Terms and Condi- tions.
  • Page 14 OCULUS Optikgeräte GmbH Postfach • 35549 Wetzlar • GERMANY Tel. +49 641 2005-0 • Fax +49 641 2005-255 E-Mail: sales@oculus.de • www.oculus.de OCULUS ist zertifiziert gemäß DIN EN ISO 13485 MDSAP OCULUS is certified in acc. with DIN EN ISO 13485 MDSAP...
