- Page 1 OCULUS Universal-Messbrille UB 5 Gebrauchsanweisung Instruction Manual Manual de Instrucciones Mode d’emploi Instruzioni per l’uso...

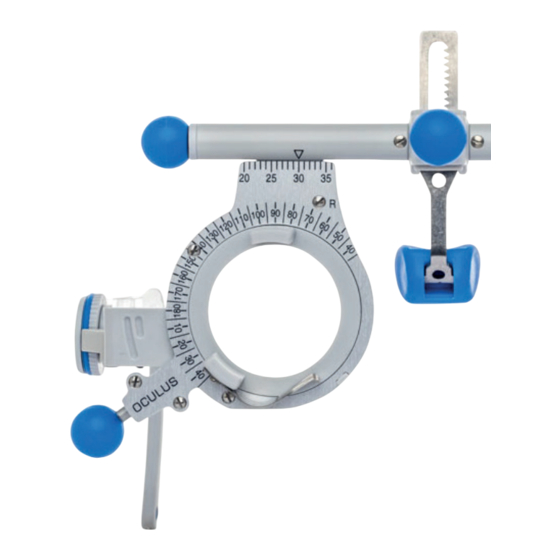

- Page 2 English OCULUS Universal Trial Frame UB 5 Instruction Manual...
- Page 3 Content Technical data ..............................25 Overview ................................26 Intended use ..............................28 Product specifications ..........................28 Operating instructions ..........................29 Polarizing filter (optional) ...........................32 Intended use ..............................32 Using polarizing filter ..........................34 Replace knobs and pad ..........................37 Cleaning and care ............................37 Warranty ................................38 24 / 88...
- Page 4 Technical data Universal Trial Frame UB 5 Scope of delivery PD adjustment range 40 - 72 mm OCULUS Universal Trial 42550 Frame UB 5 PD scale division 1 mm Weight approx. 48 g Nose pad Arm length 85 - 121 mm...
- Page 5 Overview 26 / 88...
- Page 6 Rotary knob for height adjustment and Lens holder, front locking of the nose pad Lens holder, back Toothed rack with nose pad, pivoted Receptacle for polarizing filter Mark for horizontal pupil centring (pupillary Polarizing filter (45885, optional accessories) distance) Scale for horizontal pupil centring (pupillary distance) Knob for adjusting pupillary distance (PD) Sighting bar for measuring vertex distance...
- Page 7 Intended use Patients: The OCULUS Universal Trial Frame UB 5 is used for subjective refraction. Only use OCULUS tls People from the age of 3 and with no maximum trial lenses with a diameter of 28 mm that com- age limit. No restriction on weight or health ply with DIN EN ISO 9801.
- Page 8 Operating instructions Reading off vertex distance (VD) at the Adjusting arm length ⑨ ⑥ sighting bars Pull out and/or push in arm. ȣ The temple end is flexible and can be adjusted 5 mm in all directions. The transparent sighting bar has two scales. The inner scale must be aligned with the outer scale for a parallax-free reading of VD.
- Page 9 Changing VD: Adjusting nose pad height: Swivel rack . To do so, you must overco- Press the knob to adjust the height. ② ① ȣ ȣ me a slight resistance. Pull out the knob again to fix it. ① ȣ 30 / 88...
- Page 10 Adjusting and reading PD: Setting axis position for trial lenses with cylindrical power and/or basis position of Turn the knob ⑤ ȣ trial lenses with prismatic power: Take PD reading from appropriate scale ④ ȣ Turn knob ⑩ and mark ȣ...
- Page 11 The instructions for using the polarizing filters Weight approx. 12 g supplement the Instruction Manual of the Uni- versal Trial Frame UB 5. Please note, depending Dimensions of polarization 35 x 30 mm on the device you need the linear OR cirular...
- Page 12 Polarisationsfilter (45887) Polarisationsfilter (45885) Polarisation filter holder Polarisation filter holder Knob for turning the polarisation filter Knob for turning the polarisation filter Articulated joint for swivel motion Articulated joint for swivel motion Swivel joint for turning Swivel joint for turning Polarisation filter Polarisation filter Marking...
- Page 13 ⓖ Insert the pin into the provided recep- ȣ tacle of the universal measuring goggles ⑮ UB 5. Polarizing filter can simply be swung aside when not needed. Changing polarization direction: ⓑ Use knob to set polarizing filter to follo- ȣ...
- Page 14 Polarizing filter linear 45887 Adjust polarisation filter 45885 ⓘ V position Slide the pins into one of the following ȣ positions. ⓑ Turn the knob , in order to switch from ȣ front to back. A position 35 / 88...
- Page 15 • Polarisation 90°/180°: Front side • Polarisation 135°/45°: Front side • Polarisation 180°/90°: Back side • Polarisation 45°/135°: Back side 36 / 88...
- Page 16 Replace knobs and pad Cleaning and care Replace nose pad Clean UB 5 and optional equipment when ⑪ ȣ necessary with a soft, lint-free cloth only. Pull off nose pad and mount new one. ȣ ⓑ In case of heavy soiling we recommend using Replace knobs ( ①,⑤,⑩&...
- Page 17 This warranty shall not cover cases of normal wear and tear, improper use or use of non-OCULUS replacement parts. For information on warranty in accordance with §377 of the German Commercial Code (HGB), please refer to our General Terms and Condi- tions.
- Page 18 OCULUS Optikgeräte GmbH Postfach • 35549 Wetzlar • GERMANY Tel. +49 641 2005-0 • Fax +49 641 2005-255 E-Mail: sales@oculus.de • www.oculus.de OCULUS ist zertifiziert gemäß DIN EN ISO 13485 MDSAP OCULUS is certified in acc. with DIN EN ISO 13485 MDSAP...
