Barbeques Galore Turbo BTH2614B Operator's Manual

Barbeques Galore Turbo BTH2614B Operator's Manual

Liquid propane/natural gas grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

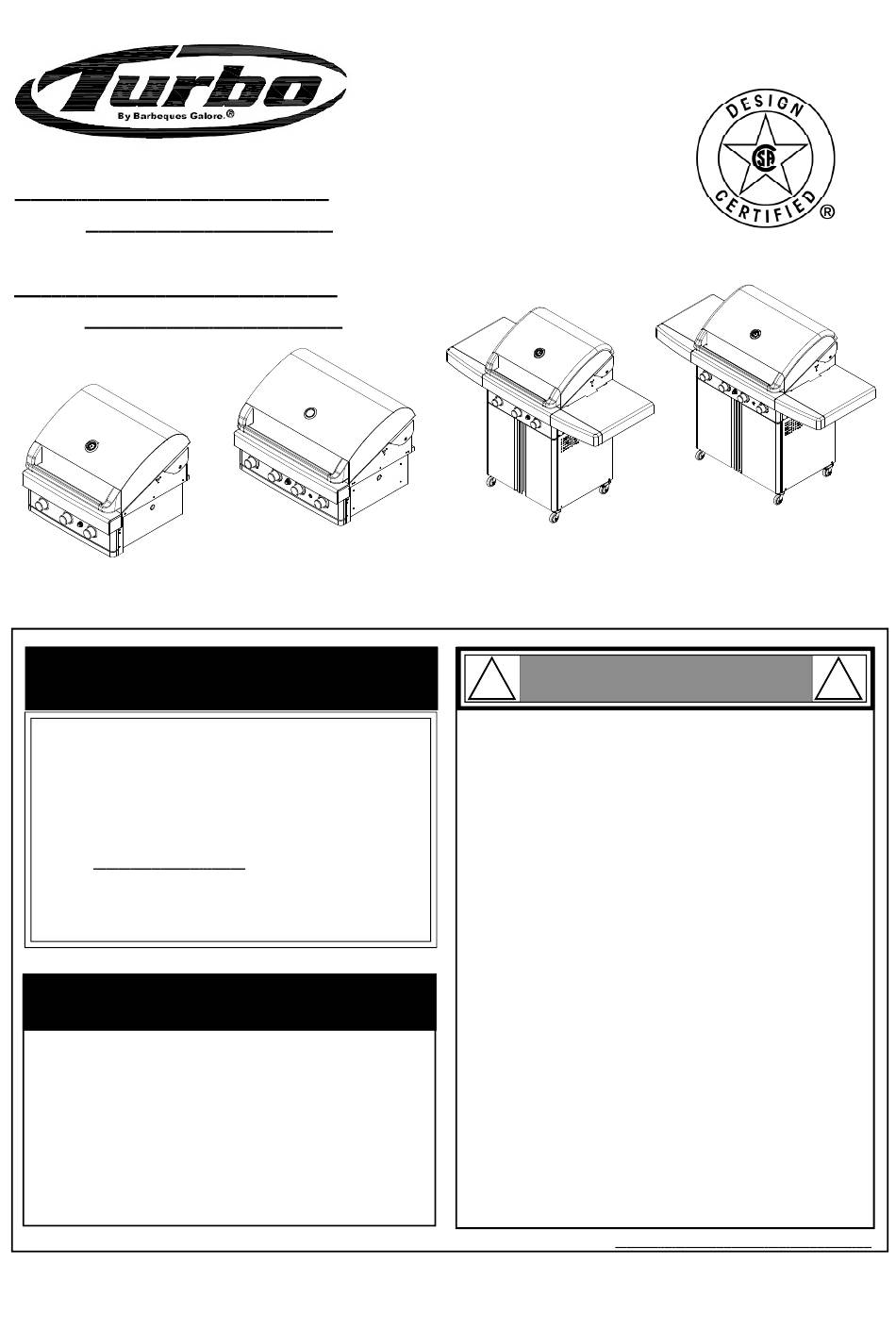

Liquid Propane Gas (LPG) Grill
Models BTH2614BLP, BTH3214BLP
BTH2614ALP, BTH3214ALP
Natural Gas (NG) Grill
Models BTH2614BNG, BTH3214BNG
BTH2614ANG, BTH3214ANG
BTH2614BLP/NG
FREE HELP
Grill Information Center:
FROM THE GRILL EXPERTS
Grand Hall is the expert on this product
and trained to help you with:
Ÿ
Assembly Questions
Ÿ
Grill Operation
Ÿ
Replacement of Damaged or Missing parts
visit www.grandhall.com or call:
1-800-474-5587
Monday - Friday 8:00am-4:30pm PST
IMPORTANT:
Ÿ
NOTE TO ASSEMBLER / INSTALLER:
Leave this manual with the consumer.
Ÿ
NOTE TO CONSUMER:
Keep this manual for future reference.
Ÿ
RECORD YOUR SERIAL #
__________________
(see silver CSA label on main body of grill)
BTH3214BLP/NG
Operator's Manual
BTH2614ALP/NG
(BTH2614B+UN2614ACT)
WARNING
!
Ÿ
Failure to comply with these instructions could
result in a fire or explosion that could cause
serious bodily injury, death or property damage.
Ÿ
Whether this grill was assembled by you or
someone else, you must read this entire manual
before using your grill to ensure the grill is
properly assembled, installed and maintained.
Ÿ
Use your grill at least 3 feet away from any
wall or surface. Use your grill at least 3 feet
away from combustible objects that can melt or
catch fire such as vinyl or wood siding, fences
and overhangs or sources of ignition including
pilot lights on water heaters and live electrical
appliances.
Ÿ
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
Ÿ
Never use your gas grill in a building, garage,
porch, shed, breezeway or any other enclosed
area.
Ÿ
Never obstruct the flow of ventilation air
around your gas grill housing.
Ÿ
Never disconnect the gas regulator or any gas
fitting while your grill is lit. A lit grill can ignite
leaking gas and cause a fire or explosion which
could result in property damage, personal injury
or death.
Manual # P80151136E - Date:2014/11/10
BTH3214ALP/NG
(BTH3214B+UN3212ACT)
!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Turbo BTH2614B and is the answer not in the manual?

Questions and answers

Related Manuals for Barbeques Galore Turbo BTH2614B

Summary of Contents for Barbeques Galore Turbo BTH2614B

  • Page 1 Operator's Manual Liquid Propane Gas (LPG) Grill Models BTH2614BLP, BTH3214BLP BTH2614ALP, BTH3214ALP Natural Gas (NG) Grill Models BTH2614BNG, BTH3214BNG BTH2614ANG, BTH3214ANG BTH3214ALP/NG BTH2614ALP/NG (BTH3214B+UN3212ACT) BTH3214BLP/NG (BTH2614B+UN2614ACT) BTH2614BLP/NG FREE HELP WARNING Grill Information Center: FROM THE GRILL EXPERTS Ÿ Failure to comply with these instructions could Grand Hall is the expert on this product result in a fire or explosion that could cause and trained to help you with:...

  • Page 2: Table Of Contents

    WARNING Table of Contents Primary Safety Warnings......1-3 Pre-Assembly Instructions.......3 Do not store or use gasoline or other Part Diagrams and Lists......4-9 flammable liquids or vapors in the Assembly Instructions.........10-13 vi c ini ty of t his or an y ot h er Use &...

  • Page 3: Pre-Assembly Instructions

    Pre-Assembly Instructions For Your Safety CAUTION PRE-ASSEMBLY Read and perform the following pre-assembly instruc- tions: Failure to comply with these instructions may result Tools Required for Assembly in a hazardous situation which, if not avoided, may • Protective work gloves result in injury.

  • Page 4: Part Description

    Hardware Parts List for Models BTH2614BLP/NG & BTH3214BLP/NG PART # PART DESCRIPTION PURPOSE OF PART P06013018C Hardware Pack For use in assembly of Models BTH3214B, BTH2614B S182G03061 Pan Head Screw 3/16" x 3/8" Install the Transformer Bracket(For BTH3214B Only) S182G03061 Pan Head Screw 3/16"...
  • Page 5 Parts Diagram for Models BTH2614BLP/NG...
  • Page 6 Parts List for Model BTH2614BLP/NG DESTRIPTION PART# QTY. P0014633A4 Lid Assembly P00601551A Temperature Gauge Temperature Gauge Seat P00614031A Lid Handle Bracket, Left P00307053D Lid Handle Bracket, Right P00308053D Lid Handle P00215041H Protective Pad P05518002I Lid Assembly Bracket, Left P033200074 Lid Assembly Bracket, Right P033200084 Lid Trim Plate P0014635K4...
  • Page 7 Parts Diagram for Model BTH3214BLP/NG...
  • Page 8 Parts List for Model BTH3214BLP/NG DESTRIPTION PART# QTY. P0014731A4 Lid Assembly P00601551A Temperature Gauge Temperature Gauge Seat P00614031A Lid Handle Bracket, Left P00307053D Lid Handle Bracket, Right P00308053D Lid Handle P00215039H Protective Pad P05518002I Lid Assembly Bracket, Left P033200074 Lid Assembly Bracket, Right P033200084 Lid Trim Plate P0014735K4...
  • Page 9 Parts List for Model BTH3214BLP/NG DESTRIPTION PART# QTY. Switch for Light P05360001B Lamp Wire Set P05352024B Lamp Wire Set Protector P05533012M Lamp,12V, 10W P05352012B Lamp Cover P053520134 Transformer Connecting Wire P05352023B Transformer P05374015B Transformer Bracket P03328057A Hardware Pack P06013018C Operator's Manual P80151136E For the repair or replacement parts you need: Call 1-800-474-5587 M-F 8AM-4:30 PM PST...
  • Page 10 Installation Instructions for Models BTH2614BLP/NG & BTH3214BLP/NG NOTE: The grill head you purchased is to be installed on the island which is not included in this purchase. You either need to purchase a prebuilt island or you have to build your own island. Before building your grill island, please read the construction guidelines and clearances in Fig.6 on page 12 carefully.
  • Page 11 Connect Transformer to Power Source and turn on Grill Lights(For BTH3214BLP/NG model only) Make a hole in the rear panel of the Island for transformer cord. Pull the transformer cord out through the hole, and make sure the cord does not touch the ground. Connect the transformer power supply cord plug to a properly grounded 120VAC outlet.
  • Page 12 Install Regulator, Tank Tray Set and Liquid Propane(LP) Gas Tank Note: Regarding the connector, for safety, we suggest using a stainless steel flexible connector. But, if using semi-rigid tubing, do not use materials made of aluminum or aluminum alloy tubing. The connector should be installed at a location visible when opening the door.
  • Page 13 Install Cooking Components Install Ignitor Battery Place the flame tamer rack inside the grill Remove Ignitor Cap from Control Panel. bowl Position it onto the lower ledge of Place supplied AA battery into the Ignitor the bowl above the burners. Next, place Slot with positive pole facing you.

  • Page 14: Use & Care Instructions

    USE AND CARE INSTRUCTIONS Keep fire extinguisher readily accessible. In the event CORRECT LP GAS TANK USE of a oil/grease fire, do not attempt to extinguish with LP Gas grill models are designed for use with a standard water. Use type B extinguisher or smother with dirt, 20 lb.
  • Page 15 USE AND CARE INSTRUCTIONS LP Gas Model only: NOTE about LP Gas Tank Exchange Programs Secure a 20lb LP Gas Tank to Gas Grill Many retailers who sell grills offer you the option of replacing your empty LP Gas tank through an exchange Note: You can only use a 20lb LP Gas Tank service.
  • Page 16 USE AND CARE INSTRUCTIONS LP Gas Model only: Connect Regulator with Hose to your LP Gas Tank Check all connections for LP Gas Leaks Turn all Burner Valves to the OFF position. Never test for leaks with an open flame. Prior to first Inspect the valve connection port and regulator use, at the beginning of each season, or every time assembly for damage or debris.
  • Page 17 USE AND CARE INSTRUCTIONS Fig.1 Natural Gas Model only: Connecting Natural Gas To Your Grill Connect the Swivel nut of the 12' Natural Gas Hose to the vertical fitting of NG Regulator as shown in Fig.1. Connect the other hose end Vertical Fitting (male plug) to the gas supply line from your Swivel Nut...
  • Page 18 USE AND CARE INSTRUCTIONS Grill Lighting Instructions Before each use, check all hoses for cracks, nicks, cuts, burns or abrasions. If a hose is damaged in any way, do not use your grill before replacing the hose with an authorized part from the Parts List. Also make sure all gas supply connections are securely tightened.

  • Page 19: Troubleshooting

    USE AND CARE INSTRUCTIONS Troubleshooting To purge air from your gas line and/or reset If the grill fails to light : the regulator excess gas flow device: Turn gas off at source and turn Control Knobs to OFF. Wait at least 5 minutes for gas to clear, then retry. Turn Control Knobs to the OFF position.

  • Page 20: Correct Transformer And Light Use

    USE AND CARE INSTRUCTIONS CORRECT TRANSFORMER AND LIGHT USE ELECTRICAL EQUIPMENT USE Read all instructions before initial use. To protect against electric shock, do not immerse cord or plugs in water or other liquid. IMPORTANT: When using transformer appliances, basic safety precautions should always be used.

  • Page 21: Cleaning And Maintenance

    Cleaning Exterior Stainless Steel Surfaces: CLEANING AND MAINTENANCE Routine care and maintenance is required to preserve Proper care and maintenance will keep your grill in top operating the appearance and corrosion resistance of stainless condition and prolong its life. Follow these cleaning procedures steel.
  • Page 22 2. 2. CLEANING THE BURNER TUBES AND BURNER PORTS Regardless of which Burner cleaning procedure you To reduce the chance of FLASHBACK FIRE you must clean the Burner Tubes as follows at least once a month in use, we recommend that you also complete the follow- ing cleaning regimens to help prolong Burner life.
  • Page 23 Cooking Instructions Burn-Off Indirect Cooking using Main Burners Before cooking on your gas grill for the first time, you should "burn off" the grill to eliminate any odor or foreign The indirect cooking method can also be used with the matter.
  • Page 24 Guide to Grilling using the Main Burners and Direct Cooking Method Approximate Cooking Times Grilling Steak and Ribs Cut of Meat Rare: 4-8 minutes Turn the grill Burners on IGN/HIGH, close Lid and preheat T-bone steak Medium: 10-14 minutes your grill 10 to 15 minutes. Open Lid and place the meat on Sirloin steak Well done: 15-20 minutes the Cooking Grid directly above the lit Burners.

  • Page 25: Baking Techniques

    Guide to Roasting and Baking Using the Main Burners Food preparation An Important Note About Heat Settings Trim meat of excess fat. Truss meat and poultry with cooking The suggested heat settings shown are approximate. There string to retain shape if desired. Bacon strips can be used to are many factors such as outside temperature, wind condi- cover the outside surface of lean meat and poultry to help tions and grill location that affect your grill performance.
  • Page 26 Guide to Smoking Guide to Using the Warming Rack Preparing to Smoke Vegetables are generally easy to cook on the grill. The Warming Rack makes it convenient because you can still Smoking gives food a distinctive, delicious flavor. You will find use the main cooking area while the vegetables are sus- a variety of wood chips available for use in smoking grilled pended above the grids.

  • Page 27: Warranty

    Question: Question: Sometimes I hear a humming sound coming from my Can I convert my grill from one fuel type to another in regulator. What causes this? And - My grill has a low other words from LPG to NG? flame and sometimes will not light.
  • Page 28 Question: The Regulator and Hose supplied with my gas grill After every use (after your grill has cooled down), wipe does not fit the older LP Gas tank I’ve used for years. stainless surfaces with a soft, soapy cloth or sponge Why not? then rinse with water.
  • Page 29 Grand Hall Limited Warranty Grand Hall will warrant to the ORIGINAL PURCHASER of this product that it will be free of defects in material and workmanship for set periods below from the date of purchase when used under normal outdoor use and correct assembly: Cooking Grids and SS Burners - 5 Year Limited Warranty(No rust through or burn through) Flame Tamers, Valves, and Plastic Components - 2 Year Limited Warranty...
