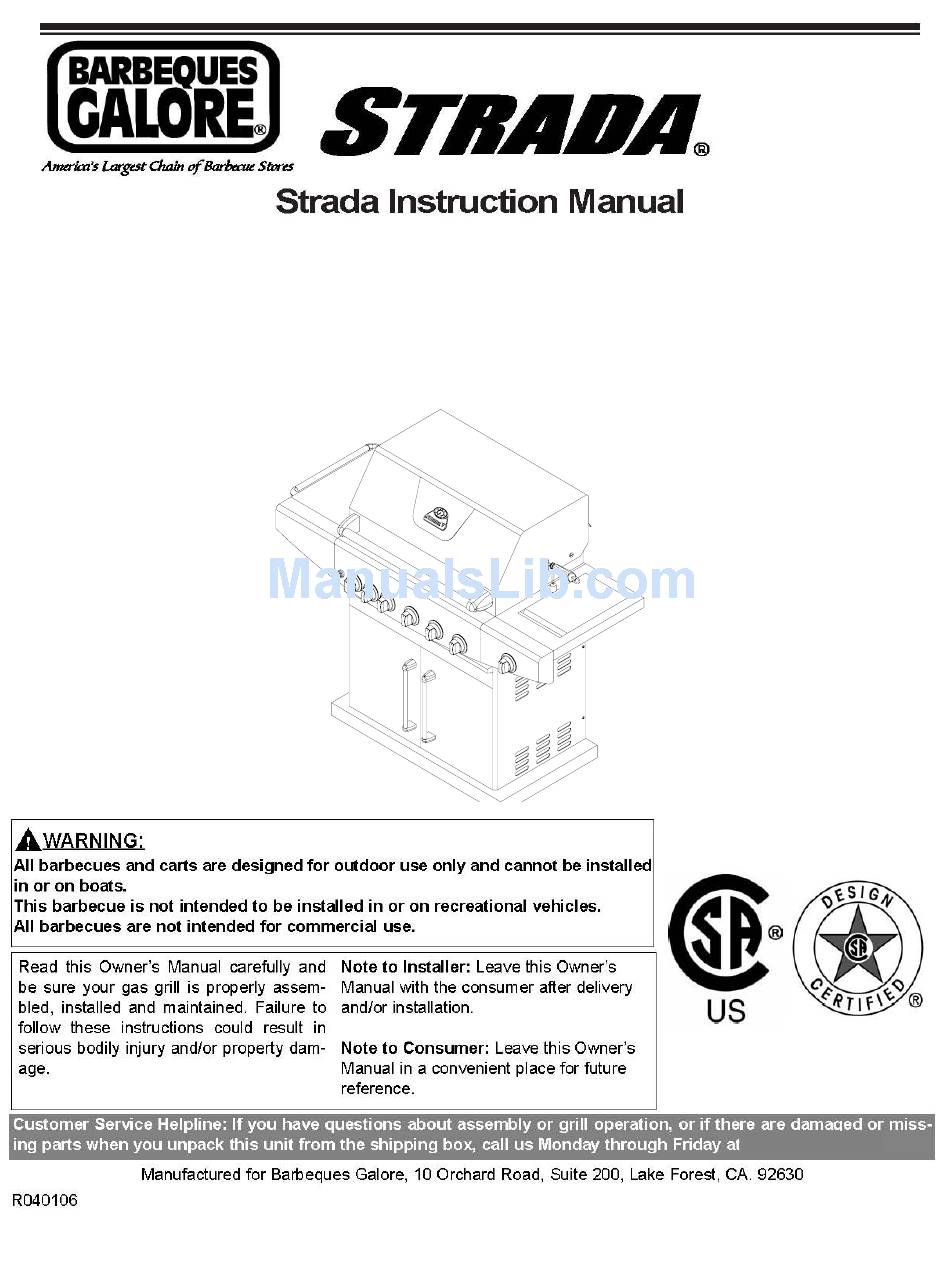

- Page 1 Model STRD5RS 5 Burner w/ Rear Rotisserie Burner Note: We highly recommend you always cover this barbecue when it is not in use which will prolong the life of the barbecue and protect it from the elements. 1-800-913-8999.
- Page 2 MESSAGE TO OUR CONSUMERS Thank you for selecting our stainless steel gas grill. Because this appliance contains features which may not be found on other grills, we recommend that you read this entire booklet before your first use. Keep it in a handy place as it has answers to questions that may occur during future use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION ONE SECTION FOUR Table of Contents & Importance-------------- Care & Maintenance-------------------25-26 Precautions----------------------------------------1-2 Placement of the Grill--------------------------- 3 SECTION FIVE Trouble Shooting-------------------------27-28 SECTION TWO Exploded View----------------------------29 Assembly Instructions------------------------4-13 Part List-------------------------------------30-31 To Match Light The Grill-----------------------14 Operating Parts & Grilling Hints---------32 Gas Hook Up-----------------------------------15-16 Installer Final Check List------------------------16 SECTION SIX... -
Page 4: Precautions
PRECAUTIONS SAFETY PRACTICES TO AVOID PERSONAL WARNING INJURY Do not try to light this appliance without first reading the “LIGHTING When properly cared for, your stainless INSTRUCTIONS” section in this manual. steel grill will give safe, reliable service for many years. However, extreme care must be used since the grill produces intense TESTED IN ACCORDANCE WITH ANS heat and that can increase accident... - Page 5 PRECAUTIONS Moist or damp potholders on hot surfaces DO NOT STORE ITEMS OF INTEREST may cause burns from steam. Do not use a TO CHILDREN AROUND OR BELOW towel or bulky cloth in place of potholders. THE GRILL OR IN THE CART. NEVER Do not let potholders touch hot portions of ALLOW CHILDREN TO CRAWL INSIDE the grill rack.
-
Page 6: Placement Of The Grill
PRECAUTIONS Do not use the grill for cooking outside in a well ventilated area, out of the excessively fatty meats or products which reach of children. promote flare-ups. Do not operate the grill DO NOT USE BRIQUETTES OF ANY under unprotected combustible KIND IN THE GRILL. - Page 7 SIDE SHELF & SIDE BURNER ASSEMBLY PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP. TOOLS REQUIRED: (1) PHILIPS HEAD SCREWDRIVER – NOT PROVIDED STEP 1: The screws used to attach the Side Burner and Side shelves are already installed in the Shelves and in the Side panels, so you will need to remove them and then use them to secure the Shelves as shown in the figure below.
- Page 8 QUICK CONNECTOR ASSEMBLY STEP 2: Push the Quick Disconnect fitting mounted on the manifold through the access hole in the Right cart panel (See figure below). Connect the Quick Disconnect fitting to the side burner fitting – it is necessary to push the Slide Collar while inserting the Quick Disconnect to the side burner fitting and then release the Slide Collar.
- Page 9 SIDE SHELF HANDLE ASSEMBLY STEP 3: The screws used to attach the left side shelf handle are already screwed into the handle (see figure below). Remove the screws from the left side shelf handle, align the handle with the holes in the side shelf, and tighten up the screw.
- Page 10 BATTERY ASSEMBLY STEP 4: To install the battery, remove the Electronic Ignition Cap and insert the battery (Positive + facing outwards). Replace the Cap and tighten by hand. J25Y06P-1...
- Page 11 ROTISSERIE KIT ASSEMBLY ASSEMBLY STEP 5 The screws for the rotisserie motor bracket are already screwed into the rotisserie motor bracket. Remove the screws and assemble the rotisserie motor bracket as shown in the figure below. Assemble the rotisserie skewer as show in the figure below.
- Page 12 GAS HOLDER & PROPANE TANK ASSEMBLY STEP 6: Place the Propane tank into the gas tank tray. Then tighten up the gas tank retention kit for fixing the gas tank as shown in the figure 1 below. Here are two buttons ”A” and “B” on gas tank tray, the “B” button is fix the gas tank tray, if you want to pull the gas tank try, please press “A”...
-
Page 13: To Match Light The Grill
TO MATCH LIGHT THE GRILL If the burner will not light after several attempts then the burner can be match lit. If you’ve just attempted to light the burner with the igniter, allow 5 minutes for any accumulated gas to dissipate. Keep your face and hands as far away from the grill as possible. -
Page 14: Gas Hook
GAS HOOK-UP Manifold pressure: 11 inches water column NEVER CONNECT AN UNREGULATED (W.C.). GAS SUPPLY LINE TO THE APPLIANCE. USE THE REGULATOR/HOSE L.P. GAS HOOK-UP ASSEMBLY SUPPLIED. Ensure that the rubber “O” Ring on the LP This is a liquid propane configured grill. cylinder valve are in place and that the Do not attempt to use a natural gas supply. -
Page 15: Installer Final Check List
GAS HOOK-UP 5. When connecting regulator assembly to To disconnect L.P. gas cylinder: the valve, hand tighten the quick 1. Turn the burner valves off. coupling nut clockwise to a complete stop. Do not use a wrench to tighten. 2. Turn the tank valve off fully (turn Use of a wrench may damage the quick clockwise to stop). -
Page 16: Leak Testing
LEAK TESTING GENERAL Only those parts recommended by the manufacturer should be used on the grill. Although all gas connections on the grill are leak tested at the factory prior to shipment, a Substitution will void the warranty. Do not use complete gas tightness check must be the grill until all connections have been performed at the installation site due to... - Page 17 CAUTIONS Place dust cap on cylinder valve outlet when the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane. The gas must be turned off at the supply cylinder when the unit is not in use.
-
Page 18: Operating Instruction
OPERATING INSTRUCTIONS GENERAL USE OF THE GRILL AND WARNING: IMPORTANT! ROTISSERIE USING THE SIDE BURNER: Each main burner is rated at 10,000 Inspect the gas supply hose prior to Btu/hr. The main grill burners encompass turning the gas “ON”. If there is evidence the entire cooking area and are side of cuts, wear or abrasion, it must be ported to minimize blockage from falling... -
Page 19: Grill Lighting Instruction
OPERATING INSTRUCTIONS CAUTION: PLEASE TAKE OFF THE WARMING RACK WHEN USING THE ROTIS BURNER. THE HIGH HEAT COMING FROM THE ROTIS BURNER MAY CAUSE THE WARMING RACK TO BEND. GRILL LIGHTING INSTRUCTIONS WARNING: IMPORTANT! TO LIGHT THE GRILL BURNER: BEFORE LIGHTING… Make sure all knobs are “OFF”... - Page 20 GRILL LIGHTING INSTRUCTIONS If you’ve just attempted to light the burner WARNING: Always keep your face and body with the igniter, allow 5 minutes for any as far away from the burner as possible when lighting. accumulated gas to dissipate. Keep your face and hands as far away from the grill TO LIGHT THE SIDE BURNER as possible.
- Page 21 GRILL LIGHTING INSTRUCTIONS I21Y06P-1...
- Page 22 GRILL LIGHTING INSTRUCTIONS FLAME CHARACTERISTICS flame is noisy and tends to lift away from the burner, it indicates too much air. Check for proper burner flame characteristics. Burner flames should be blue and stable Each burner is adjusted prior to with no yellow tips, excessive noise, or shipment;...
-
Page 23: Lighting Illustration
LIGHTING ILLUSTRATION Main & Side Burner Lighting Illustration Rotisserie Burner Lighting Illustration Step to light the Rotisserie Burner : Step 1. Push and turn the Control knob to HI to Make sure the Lid is open light the burner, and hold in until the burner is ignited, then release. -
Page 24: Care & Maintenance
CARE AND MAINTENANCE STAINLESS STEEL MAIN GRILL BURNER CLEANING The grill is made from non-rusting and Ensure the gas supply is off and the knobs non-magnetic stainless steel. There are are in the “OFF” position. Make sure the grill many different stainless steel cleaners is cool. - Page 25 CARE AND MAINTENANCE HOW TO REPLACE MAIN BURNER STAINLESS STEEL : Step 1. Insert the burner onto the orifice. There are many different stainless steel cleaners available. Always use the mildest cleaning procedure first, scrubbing in the direction of the grain. Do not use steel wool as it will scratch the surface.
-
Page 26: Trouble Shooting
TROUBLE SHOOTING SPIDER AND INSECT WARNING!!! WHEN TO LOOK FOR SPIDERS Spiders and small insects occasionally You should inspect the burners at least spin webs or make nests in the grill burner once a year or immediately after any of the tubes during transit and warehousing. -
Page 27: Trouble Shooting
TROUBLE SHOOTING CHECK LIST WHAT TO DO PROBLEMS Check to see if LP tank is empty. Grill won’t light when the control knob is rotated. Clean wire(s) and /or electrode by rubbing with alcohol and clean swab. Wipe with dry cloth. Make sure the wire is connected to electrode assembly. -
Page 28: Exploded View
EXPLODED VIEW J25Y06P-1... -
Page 29: Part List
MODEL 720-0294 PARTS LIST REF# DESCRIPTION Q’T DESCRIPTION Q’ Warming Rack Door Magnet Bracket Cooking Grid With Hole Caster Flame Tamer Bottom Panel, LP Sear Burner Thermocouple Rubber Grommet Sear Burner Thermocouple Heat Lighting Rod Shield Sear Burner Gas Hose Retention Clamp Rear Baffle Rotisserie Burner Flex Gas line Sear Burner Igniter Wire... -
Page 30: Part List
MODEL 720-0294 PARTS LIST REF# DESCRIPTION Q’T DESCRIPTION Q’TY Side Panel Left Rotisserie Burner Thermocouple Bracket Cart Basket Main Burner Swivel Caster With Brake Rotisserie Burner Thermocouple Towel Rack Bracket Main Lid Handle Tube Towel Rack Main Lid Handle Seat Condiment Rack Handle Heat Insulating Rubber Gasket Door Hinge Rod... -
Page 31: Operating Parts & Grilling Hints
ORDERING PARTS IMPORTANT REPLACEMENT HOW TO ORDER PARTS Use only factory authorized parts. The use of any part that is not factory authorized To make sure you obtain the correct can be dangerous. This will also void your replacement part(s) for your gas grill, warranty. -
Page 32: Grill Cooking Chart
GRILL COOKING CHART WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS AND FOOD THICKNESS FLAME SIZE TIME TIPS VEGETABLES Slice.Dot with butter or margarine Wrap in heavy-duty foil.Grill,turning occasionally Fresh Beets Medium 12 to 20 minutes Carrots Grill,turning once.Brush Occasionally Turnips With melted butter or margarine Onion 1/2 inch slices Medium... - Page 33 GRILL COOKING CHART WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS FLAME SIZE TIME AND TIPS Tenderloin, Porterhouse, Remove excess fat from edge. Slash T-Bone, Sirloin remaining fat at 2-inch intervals. Rare 1 inch High 8 to 14 minutes Grill, turning once. 1-1/2 inch High 11 to 18 minutes...
- Page 34 GRILL COOKING CHART WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS FLAME SIZE FOOD THICKNESS TIME AND TIPS FISH AND SEAFOOD Grill,turning once.Brush with melted butter,margarine or oil Steaks To keep moist. Halibut 3/4 to 1 inch Medium to 8 to 15 minutes Salmon High Swordfish...
-
Page 35: Grill Recipe Suggestions
GRILL RECIPE SUGGESTIONS BBQ SALMON TANGY SEAFOOD KABOBS Half hour before cooking, turn the burner to the grill on full. Drain 1 lb. Large shrimp, shelled & 2 large salmon steaks deveined seafood reserving marinade. On 2 tbs. Oil each of twelve 10” skewers, ¾... - Page 36 GRILL RECIPE SUGGESTIONS Preheat grill. Combine cheese, Pound flank steak to ¼ inch In blender, process 1/3 c. water, condensed soup, milk, BBQ thickness or flatten chicken onion, soy sauce, 2 tsp. oil and sauce, oregano, salt and pepper breasts. Mix oil, lime juice and the next 8 ingredients until in a large mixing bowl.
- Page 37 GRILL RECIPE SUGGESTIONS CHICKEN TANDOORI STYLE Marinade ribs for 3 hours. Use TURKEY marinade for basting by adding 8 large chicken thighs or 12 lb. turkey drumsticks beer to it. Place pan under the Beer basting sauce: ribs and baste frequently. To 1 c.
-
Page 38: Limited Warranty
LIMITED WARRANTY LIMITED WARRANTY MODEL 720-0490 STAINLESS STEEL OUTDOOR GAS GRILL Nexgrill Industries, Inc. warrants to the original consumer purchaser of each Outdoor Gas Grill that when subject to normal residential use, it is free from defects in workmanship and materials for the periods specified below.
