WELCOME TO THE WORLD OF BARBEQUES GALORE OUTDDOR COOKING
INSTRUCTIONS FOR ASSEMBLY AND USE OF
These instructions contain important information that needs to be followed for the safe assembly and use of your
new range unit. Please read through carefully and completely prior to assembly.
Take care to remove all packaging materials and protective coatings from the range unit
IMPORTANT: READ ALL OPERATING INSTRUCTION BEFORE LIGHTING.
By following these instructions for safe and easy operation, you will enjoy years of
satisfying, trouble free outdoor cooking. And when you're fully up and running, you can
visit your retailer for some great accessories and cooking tips to make your experience
even more rewarding. But first things first....

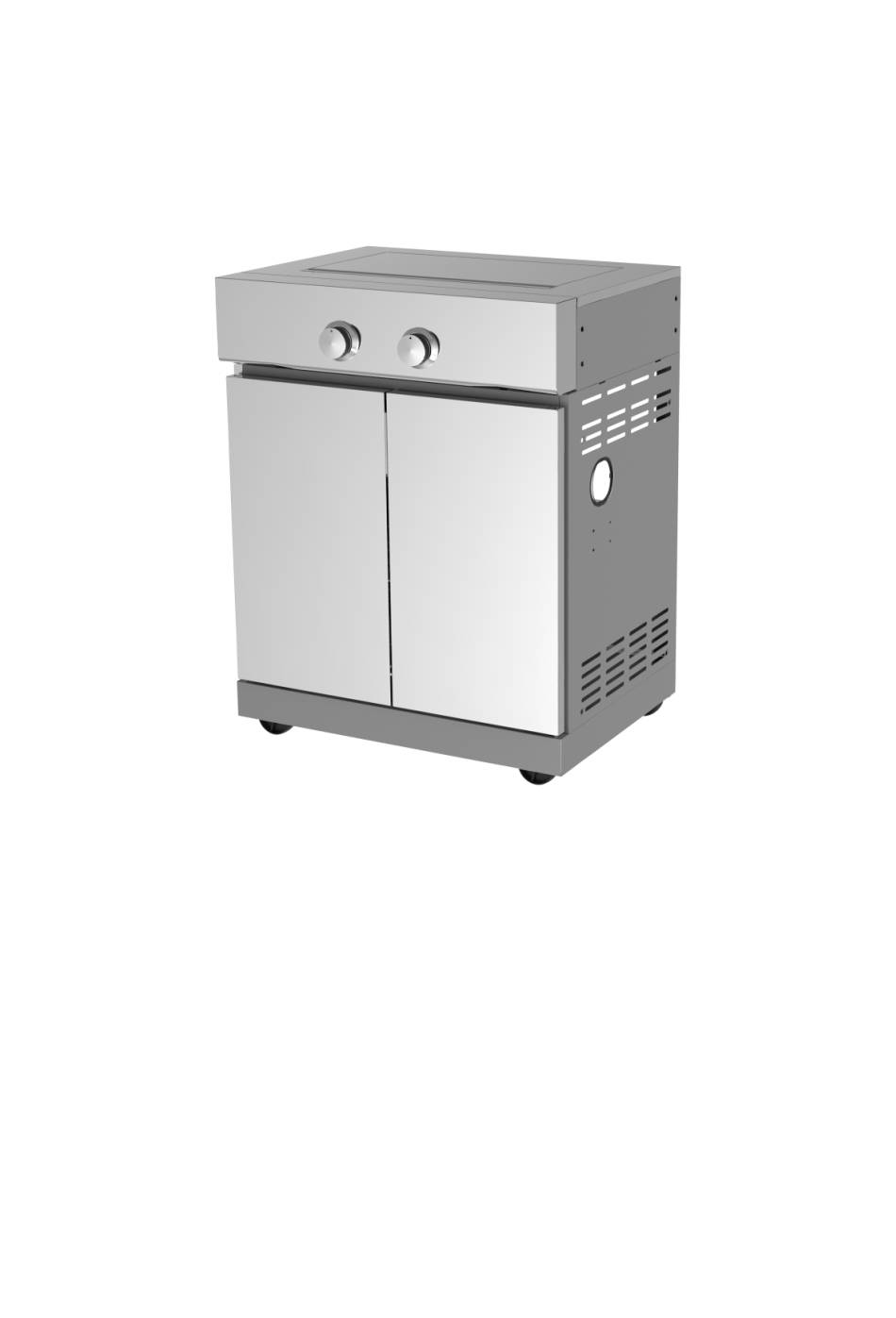

Page 1

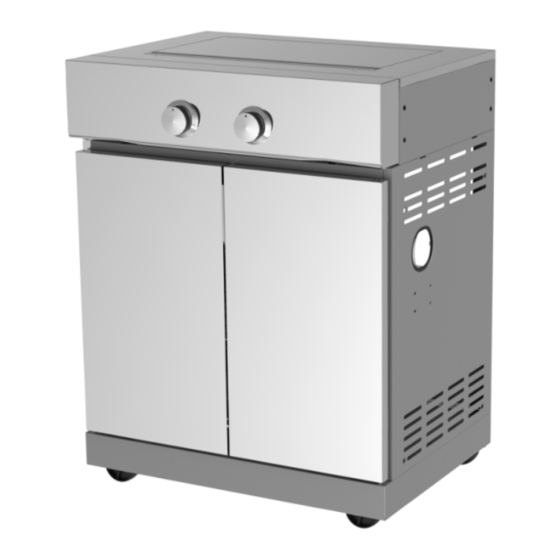

ALFRESCO RANGE UNIT
Code: ALISLRANGE
For the safe use and enjoyment of your new barbeque.
For Code: ALISLRANGE
before first use.
Tools required:
2 x Adjustable spanners
1 x Phillips head screwdriver
1 x Regular screwdriver

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALFRESCO BG229SB-G and is the answer not in the manual?

Questions and answers

Summary of Contents for Barbeques Galore ALFRESCO BG229SB-G

  • Page 1 WELCOME TO THE WORLD OF BARBEQUES GALORE OUTDDOR COOKING INSTRUCTIONS FOR ASSEMBLY AND USE OF ALFRESCO RANGE UNIT Code: ALISLRANGE For the safe use and enjoyment of your new barbeque. These instructions contain important information that needs to be followed for the safe assembly and use of your new range unit.
  • Page 2 Safety warnings HAZARDOUS FIRE OR EXPLOSION MAY RESULT IF THESE INSTRUCTIONS ARE IGNORED It is the consumer’s responsibility to see that this range unit is properly assembled, installed, and taken care of. Failure to follow instructions in this manual could result in bodily injury and/or property damage. FOR YOUR SAFETY IF YOU SMELL GAS: 1.
  • Page 3 Safety warnings (continued) • Do not perform any servicing on the range unit yourself. This includes internal adjustment of the regulator and gas valves. Servicing can only be carried out by authorised technicians. • It is important that you install your range unit exactly as described in these instructions. In particular: you should keep the range unit clear of combustible material, and you should check for leaks whenever a new connection is made.
  • Page 4 Where to put your range unit This range unit must only be used in an above ground, open air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used must comply with one of the following: (1) Any enclosure with walls on all sides, but at least one permanent opening at ground level,...
  • Page 5 Where to put your barbeque (continued) When used on the ground always place the appliance and cylinder on flat level ground. NEVER light the RANGE UNIT with the lid in the closed position. Storage of Appliance Storage of an appliance indoors is only permissible if the cylinder is disconnected and removed from the appliance.
  • Page 6 Contents list. Carefully unpack the carton and check all the parts: 1. One Firebox 2. One Base Panel 3. One Left Side Cart 4. One Right Side Cart Assembly Panel Panel 5. One Rear Cart 6. One Cart Front 7. Two Doors 8.
  • Page 7 Contents list (continued) Bolt Pack included: A. Twenty four B. Twenty three C. Twenty four D. Sixteen M6 Flat M6*16mm Screws M6*12mm Screws M4*10mm Screws Washers E. Sixteen M6 Spring F. Four M6 Washers G. Three M4*8mm Washers Screws Before you start, check that you have all the contents as above. Remove all items, including any packing materials from the assembly.
  • Page 8 Assembly instructions STEP 1: Attach Castors. WHAT YOU NEED: x Castors without lock (11) x Castors with lock (12) A x four x 4 x Base panel (2) D x four x 4 11 x two sixteen x M6*16mm screws (A) E x four x 4 sixteen x M6 flat washer (D) sixteen x M6 spring washer (E)
  • Page 9 Assembly instructions (continued) STEP 3: Attach Rear Panel. WHAT YOU NEED: one x Rear panel (5) B x five five x M6*12mm screws (B) Attach the rear panel (5) to the cart with five M6*12mm screws (B). Note: Do not fully tighten the screws until all five screws are started.
  • Page 10 Assembly instructions (continued) STEP 5: Attach the Cabinet Separator Panel. WHAT YOU NEED: one x Cabinet separator panel (8) two x M6*12mm screws (B) three x M4*8mm screws (G) Attach the cabinet separator panel assembly to left and right side panel. BACK BACK Push the side panels outwards...
  • Page 11 Assembly instructions (continued) STEP 7: Attach the Cart Door. WHAT YOU NEED: x Doors (7) eight x M4*10mm screws (C) Attach the doors (7) to the hinges with two M4*10mm screws (C) on each hinge. C x two x 4 STEP 8: Adjusting the Door Gap.
  • Page 12 Assembly instructions (continued) STEP 9: Attach the Firebox. (Use two people for this step) WHAT YOU NEED: one x Firebox assembly (1) four x M6*16mm screws (A) A x four a) Insert the regulator assembly through the hole on cabinet separator panel.
  • Page 13 Assembly instructions (continued) STEP 11: Attach the Trivet. WHAT YOU NEED: one x Trivet (13) Open the lid, then attach the trivet (13) onto the burner. Page 13...
  • Page 14 Configure the alfresco island with separately available units alfresco Configure your island by combining: G4ALF2 G6ALF2 ALISLSINK ALISLRANGE 4 burner bbq 6burner bbq sink unit range unit Note: The barbeques and range units need separate, independent gas supplies. BBQ + Sink unit + Range unit BBQ + Range unit + Sink unit BBQ + Sink unit or Range unit Note: The side burner must only fit onto the LEFT side of the BBQ as above.
  • Page 15 Configure the alfresco island with separately available units (continued) How to join your alfresco island units What you need: four M6*16mm screws (A) for each connection (four are included in the bolt packs that come with the sink unit and the range unit) If joining a separately purchased Alfresco barbeque to an optional sink unit or to an optional range unit, open the cart door for that optional unit, then connect that unit to barbeque with...
  • Page 16 Checking the gas type and supply Before assembling your range unit, you should ensure your range unit is suited to the type of gas which you are going to use. This is a low pressure range unit and must only be used with propane gas only using the hose and regulator supplied.
  • Page 17 Checking for gas leaks and lighting the burners Always keep gas cylinder in an upright position. Always close the gas cylinder valve when the range unit is not in use. Do not subject the cylinder to excessive heat. NEVER STORE YOUR GAS CYLINDER INDOORS. If you store your range unit indoors, ALWAYS disconnect the cylinder first and store it safely outside.
  • Page 18 Checking for gas leaks and lighting the bbq (continued) LIGHTING THE BURNERS After confirming there are no leaks: 1. Open the lid of the range unit while lighting either burner. 2. Turn all the control knobs clockwise to “OFF” position. 3.
  • Page 19 Checking for gas leaks and lighting the burners (continued) CONTROLLING THE FLAMES The knobs have three basic positions “OFF”, “LOW” & “ HIGH”. You can achieve any flame height between “LOW” and “ HIGH” by rotating the knob between these two positions.
  • Page 20 Care and maintenance Cleaning your range unit: Your range unit will look better and last longer if you keep it clean. Follow these simple steps. The burners: Occasionally the burner holes may get clogged with grease and food particles. Leaving the burners on for a maximum of 5 minutes with the hood open after you’ve finished cooking will remove most of this.
  • Page 21 • Use 3M stainless steel cleaner available for your local Barbeques Galore store to polish and protect all stainless steel surfaces. Follow the manufacturer's instructions on the can.
  • Page 22 If a service is required for your range unit, contact your local Barbeques Galore store Phone 1 300 301 392 SERVICING Your gas range unit should be serviced annually by a competent registered person.
  • Page 23 Exploded Drawing Page 23...
  • Page 24 Exploded Drawing PART NUMBER PART CODE DESCRIPTION QTY PER BBQ QTY PER SPARE PART PACK CP9153048 Side burner hinge CP9153047 Side burner lid CP9153058 Top panel CP9153049 Trivet CP9153045 Rear cart panel CP9153062 Left firebox panel CP9153061 Right firebox panel CP9153107 Cabinet separator panel CP9153065...
  • Page 25 Exploded Drawing PART NUMBER PART CODE DESCRIPTION QTY PER BBQ QTY PER SPARE PART PACK CP9153082 Cart front beam CP9153121 Castor with lock CP9153108 Triangle plate CP9153120 Castor without lock CP9153162 Base panel Page 25...
  • Page 26 Plate on the Cart Base Panel as shown below. Serial Number Need More Information? Call your local Barbeques Galore store where barbeque experts will be happy to help you. Phone 1 300 301 392 Or visit us online at: www.barbequesgalore.com.au Barbeques Galore G.L.G.
