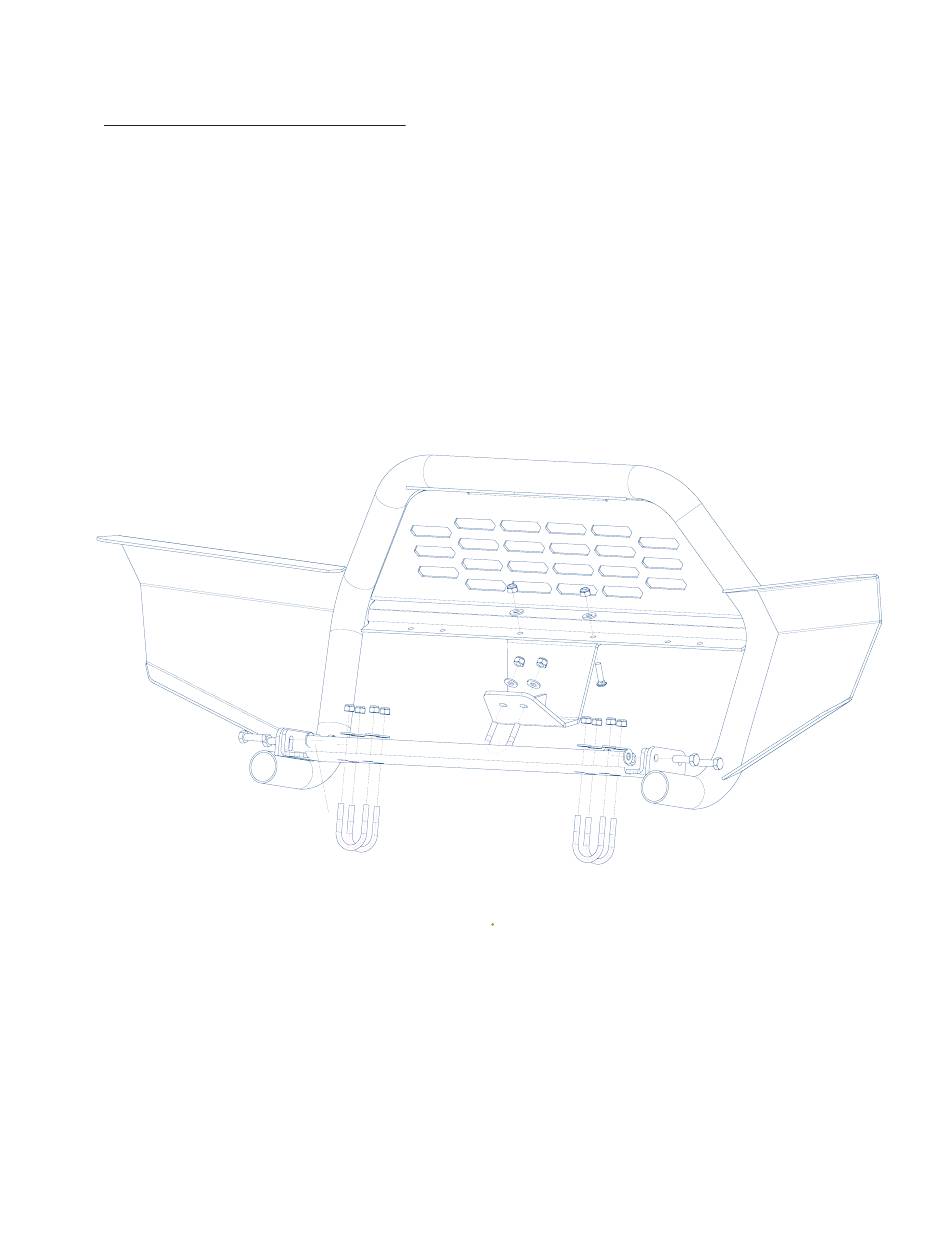

II. PARTS LIST
Part Number Qty
1320 12
6725 12
21445 1
65099 4
1324 4
2002 4
21331 4
22063 2
83293 1
88309 1
83296 1
III. TOOLS REQUIRED
- Ratchet
- 7/16" Deep Socket
- 1/2" Socket
- 7/16" Wrench
- 1/2 Wrench
WARN INDUSTRIES
©2005 Warn Industries, Inc.
WARN® and the WARN logo are trademarks of Warn Industries Inc.
Description
1/4" Flat Washer
1/4-20 Lock Nut
1/4-20 x 1.0 x 1.5 U-bolt
1/4-20 x 1.25 x 1.75 U-bolt
5/16 Flat Washer
5/16 Lock Nut
5/16-18 x 1.0 U-Bolt
1/4-20x1.0 Carriage Head Bolt
Mounting Bracket
Backing Plate
Bumper
IV. TORQUE SPECIFICATIONS
1/4
5/16
3/8
7/16
1/2
PAGE 2
8 lb. ft. (10.8 N-m)
17 lb. ft. (12.5 N-m)
30 lb. ft. (40.7 N-m)
50 lb. ft. (67.8 N-m)
75 lb. ft. (101.7 N-m)
83339A0
