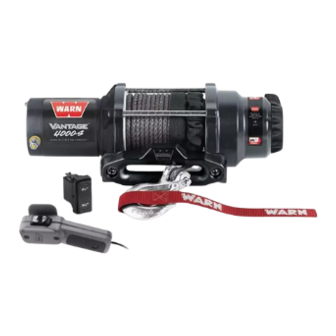

Warn VANTAGE 4000-S Manual

VANTAGE 4000-S
Part Number: 89041, 91041
Rated Line Pull: 4000 lbs. (1814 kgs)
Motor: 12V DC, 1.4 hp (1.0 kW) Permanent Magnet, Sealed
Controls: Dash Mounted Rocker
Gear train: 3-Stage Planetary
Gear Ratio: 180:1
Clutch (Freespool): Cam Activated
Brake: Spring
Drum diameter/length: 2.25"/4.7" (52mm/74mm)
Kit Shipping Weight: 29.0 lbs. (13.2 kgs)
Rope: Synthetic, Ø 7/32 x 50' (Ø 4.0mm x 15 m)
Fairlead: Hawse
Recommended Battery: 14 Amp/hr minimum
Duty Cycle: Intermittent
Battery leads: 6 gauge
Finish: Grey Powder Coat
Warranty: Limited Five Year
Mounting Bolt Pattern: 3.0" x 6.66" (76mm x 169mm)
Winch Dimensions: 14.57" L x 4.53" D x 4.69" H (37.0cm L x 11.5cm D x 11.9cm H)
Winch Weight: 15.45 lbs. (7.0 kgs)
WARN Industries, Inc.
PERFORMANCE DATA
Load
lbs. (kgs)
4000 (1814)
3000 (1360)
2000 (907)
1000 (454)
0
DUTY CYCLES
Load
lbs(kgs)
0
500 (227)
1000 (455)
2000 (907)
3000 (1630)
4000 (1814)
SERVICE INSTRUCTIONS
Should you encounter a problem during installation or operation of your
winch, please follow these steps toward resolving the problem:
1. Refer to your operator's guide and installation instructions. It has
illustrations and detailed information on the installation and safe and
proper operation of your winch. It also includes a replacement parts list
and assembly diagrams. If you are unable to resolve the problem, then
go to step 2.
2. Contact your dealer where you purchased your winch. If, after discussing
the problem with their parts and service staff, you are still unable to
resolve the problem then go to step 3.
3. Call an Authorized WARN Service center from the list provided on the
back of the warranty sheet included with the product. When calling,
please have the following information available: winch model number
and purchase date, make, model and year of vehicle.
4. If you are unable to resolve the problem to your satisfaction, please call
Warn Industries Customer Service at: 1-800-543-9276. When calling,
please have the following information available: winch model number
and purchase date, make, model and year of vehicle. You may also
contact Warn Industries by visiting our website: www.warn.com
89314B0 WARN Industries, Inc.
Current Speed
(Amps) Ft/min. (m/min.)
200.8 5.3 (1.6)
137.4 7.3 (2.2)
106.4 10.0 (3.0)
61.8 13.7 (4.2)
21.6 18.6 (5.7)
Run Time Distance
ft.(m)
2.5 min 46.5 (14.2)
2.0 min 32.0 (9.8)
1.5 min 21.0 (6.4)
45 sec 7.5 (2.3)
15 sec 2.0 (.6)
5 sec .5 (.2)
Pull by Layer
Layer/lbs. (kgs.)
1/4000 (1814)
2/2977 (1350)
3/2560 (1161)
4/2246 (1019)
Cool Time
(min)
12
10
10
10
10
10
89314B0
