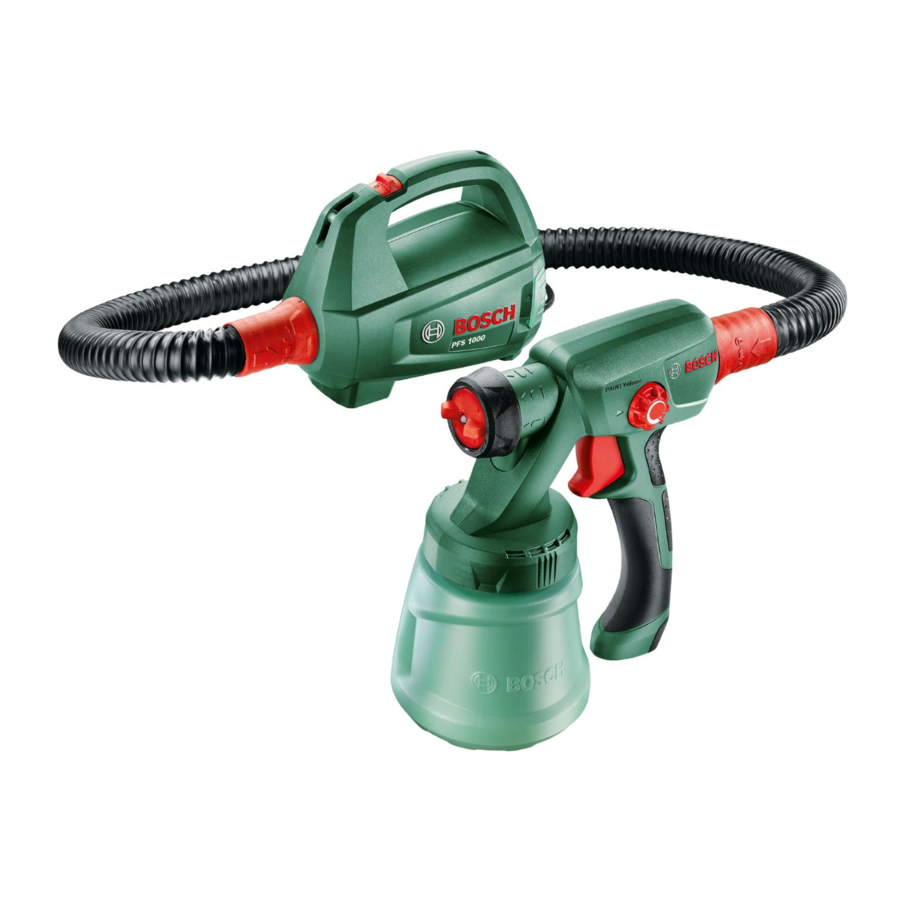

Bosch PFS 1000 / 2000 Manual

Safety instructions

General Power Tool Safety Warnings

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/ or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for fine spray systems

• Keep your work area clean, well lit and free of paint or solvent containers, cloths and other flammable materials. There is a risk of spontaneous combustion. Ensure that you have access to functioning fire extinguishers or extinguishing equipment at all times.
• Ensure that the spray area is well ventilated and that there is sufficient fresh air circulating in the whole area. Evaporating flammable solvents create an explosive environment.
• Do not spray or clean with materials with a flash point lower than 55°C. Use water-based materials, nonvolatile hydrocarbons or similar materials. Volatile evaporating solvents create an explosive environment.
• Do not spray near ignition sources such as static electricity sparks, naked flames, pilot lights, hot objects, engines, cigarettes and sparks created by plugging in and unplugging electric cables or operating switches. These kinds of spark sources can lead to combustion of the surrounding environment.
• Do not spray materials if it is not clear whether they might be dangerous. Unknown materials could create hazardous conditions.
• Do not spray boiling water. Spray only warm water (max. 55°C) which is free from chemical additives.
• Wear additional personal protection equipment such as appropriate protective gloves and a protective mask or respirator when spraying or handling chemicals. Wearing personal protection equipment appropriate to the conditions reduces your exposure to hazardous substances.

• Take note of possible risks posed by the spray material. Observe the markings on the container or the manufacturer's information regarding the spray material, including the instructions about using personal protective equipment. You must comply with the manufacturer's instructions in order to reduce the risk of fire and of injury caused by poison, carcinogens, etc.
• Keep the mains plug and the spray system trigger switch free from paint and other liquids. Never hold the cable by its plug connection for support. Doing this could cause electric shock.
• Supervise children. This will ensure that children do not play with the fine spray system.

Products sold in GB only:
Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Product Description and Specifications

Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.
Please observe the illustrations at the beginning of this operating manual.

Intended Use
PFS 1000
The power tool is intended for spraying the following spray materials: Solvent-based and water-dilutable (recommended) lacquers, varnishes, primers, impregnations, clear lacquers, oils and water.
The power tool is not suitable for use with emulsion and latex paints (wall paints), caustic solutions, wood stains, acidic coating materials, disinfectants, pesticides, house paints, spray material containing grains or solids, and spatter- and drip-resistant materials.

PFS 2000
The power tool is intended for spraying all common paints: Emulsion and latex paints (wall paints), solvent-based and water-dilutable (recommended) lacquers, varnishes, primers, impregnations, clear lacquers (ALLPaint), oils and water.
The power tool is not suitable for use with caustic solutions, wood stains, acidic coating materials, disinfectants, pesticides, house paints, spray material containing grains or solids, and spatter- and drip-resistant materials.

Product Features

1. Spray gun
2. Air cap
3. Cap nut
4. Hose port (spray gun)
5. Thumbwheel for spray material volume
6. Trigger switch
7. Container for spray material
8. Spare container for spray materiala)
9. Paint nozzle (grey: For "wood" application)
10. Paint nozzle (white: For "wall" application)
    (PFS 2000)
11. O-ring
12. Gasket
13. Suction tube
14. Transfer bucketb)
15. Nozzle needle
16. Container seal
17. Ventilation hole
18. Paint channel
19. Air hose
20. Bayonet lock
21. Base unit
22. On/off switch
23. Carrying handle
24. Carrying strap
25. Air filter cover
26. Hose port (base unit)
27. Eyelet for carrying strap
28. Air filter

^a) Available as an accessory for PFS 1000; included in the scope of delivery for PFS 2000
^b) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Fine-spray system		PFS 1000	PFS 2000
Article number		3 603 B07 0..	3 603 B07 3..
Rated power input	W	410	440
Spraying capacity	ml/min	100	200
Required time for application of paint on 2 m 2	min	2	1.3
Container capacity for spray material	ml	800	800
Paint nozzle (9) (grey) "Wood" application: Spraying solvent-based and water-dilutable lacquers, varnishes, primers, clear lacquers and oils		●	●
Paint nozzle (10) (white) "Wall" application: Spraying emulsion and latex paints		–	●
Length of air hose	m	1.25	1.25
Weight according to EPTA-Procedure 01:2014	kg	1.8	1.9
Protection class		/II	/II

The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.

Noise/Vibration Information
Noise emission values determined according to EN 62841-1.
Typically, the A-weighted sound pressure level of the power tool is 80 dB(A). Uncertainty K = 3 dB. The noise level when working can exceed the volume stated. Wear hearing protection!
Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 62841-1:
a_h < 2.5 m/s², K = 1.5 m/s²
The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to compare power tools. They may also be used for a preliminary estimation of vibration and noise emissions.
The stated vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different application tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period.
To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account.
This may significantly reduce vibration and noise emissions over the total working period.
Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly.

Assembly

• Pull the plug out of the socket before carrying out any work on the power tool.
• Ensure that the spray gun and base unit are assembled completely and with all seals. Only this will ensure the function and safety of the fine-spray system.

Connecting the air hose (see figures A1–A2)

Connecting the base unit:

• Insert a bayonet lock(21) of the air hose securely into the holes in the base unit port (27) according to the arrow marks.
• Turn the bayonet lock a quarter turn clockwise.

Connecting to the spray gun:

• Insert the second bayonet lock(21) of the air hose securely into the holes in the spray gun port (4) according to the arrow marks.
• Turn the bayonet lock a quarter turn clockwise.

Note: Remove the air hose (20) before pouring in spray material (quarter turn of the bayonet lock (21) anticlockwise; pull the bayonet lock (21) out of the port (4)).

Attaching the carrying strap (see figure B)

To be able to reach all surfaces to be sprayed and to maintain flexibility, you can carry the base unit by means of the strap (25).

• Attach one strap end to each eyelet (28).

Changing the Paint Nozzle (PFS 2000) (see figure C)

Note: Check the spray material by stirring it before selecting the paint nozzle. Thin-viscosity material (e.g. wood paint) or diluted material can be sprayed better with the grey paint nozzle (9). Thick-viscosity material (e.g. wood lacquer or wall paint) can be sprayed better with the white paint nozzle (10).

• To change the paint nozzle, unscrew the cap nut(3).
• Pull off the air cap(2) and the gasket (12).
• Unscrew the mounted paint nozzle. When doing so, ensure that the O-ring(11) remains on the paint nozzle.
• Screwdrive the required paint nozzle into the thread in the spray gun.
• Put the air cap(2) with the spacer (12) on the paint nozzle and tighten it with the cap nut (3).

Operation

• Pull the plug out of the socket before carrying out any work on the power tool.
• Products that are only sold in AUS and NZ: Use a residual current device (RCD) with a nominal residual current of 30 mA or less.

Work preparation

• Spraying on the sides of water bodies (lakes, rivers, etc.) or neighbouring surfaces in the direct catchment area is not permitted.
• When purchasing paint, lacquer and spray material, pay attention to their environmental compatibility.

Preparing the spray surface
The spray surface must be clean, dry and grease-free.

• Roughen smooth surfaces and then remove the sanding dust.

When spraying, all non-covered surfaces can be contaminated by the spray mist. Therefore, thoroughly prepare the area around the surface to be sprayed:

• Carefully cover floors, furnishings, doors, windows as well as door and window frames, etc. Painting substrate, for example, is recommended for covering the floors.
• Fix the cover material in place. Cover material that is not fixed in place securely can be detached or blown away by the powerful air jet.

• Carefully mask off plug sockets and switches. Uncovered plug sockets and switches may cause a short-circuit and increase the risk of electric shock.

Preparing the spray material

• When diluting, make sure that the spray material and the diluting agent are compatible. When using a faulty diluting agent, lumps can develop that can lead to clogging of the spray gun.
• When diluting the spray material, make sure that the flash point of the mixture is above 55°C again after diluting. Diluting substances such as solvent-based lacquers lowers the flash point.
• Note the specifications of the paint manufacturer relating to sprayability, e.g. in the technical information sheet or data sheet. Make sure that you do not spray any paints that are not suitable according to the manufacturer's specifications.


Dilution table

Filling the spray material (see figures D1–D2)

Note: Remove the air hose (19 before pouring in spray material (quarter turn of the bayonet lock (20) anticlockwise; pull the bayonet lock (20) out of the port (4)).

• When using large buckets, pour the spray material into a smaller transfer bucket(14) if necessary (e.g. 10 l wall paint into an empty 2.5 or 5.0 l bucket).
• Unscrew the container(7) from the spray gun.
• Pour the spray material into the container(7) up to no more than the 800 mark.
• Turn the suction tube(13) so that the spray material can be sprayed with almost no residue:

• Carry out a test-spray run on a test surface.

If the spraying results are unsatisfactory or no paint is emitted: (see "Troubleshooting")

Starting Operation

• Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the power tool.
• Make sure that the base unit cannot draw in dust or other contamination during operation.
• Make sure never to spray on the base unit.
• Stop spraying if fluid escapes from places other than the intended nozzle during spraying, and restore the spray gun to its proper condition. There is a risk of electric shock.
• Do not direct the fine-spray system against yourself, other persons or animals.

Switching on (see figure E)

• Check whether the correct paint nozzle is fitted.
• Plug the mains plug into a plug socket.
• Grasp the spray gun by the handle and point it at the target area.
• Slide the on/off switch(22) forwards.
• Pull the trigger switch(6) on the spray gun.
  Note: Air always flows out at the air cap (2) when the base unit is switched on.

Switching Off

• Let go of the trigger switch(6) and slide the on/off switch (22) backwards.
• Pull the mains plug from the plug socket.

Working Advice
Spraying (see figure F)


Note: Pay attention to the wind direction when you are using the power tool outdoors.

• Firstly, carry out a spray test and adjust the spray pattern and the spray material quantity according to the spray material.
  For adjustments, see the following sections.
• Make sure to hold the spray gun with a uniform clearance of 20–25 cm vertical to the object being sprayed.
• Begin the spraying procedure outside the target area.
• Move the spray gun evenly horizontally or vertically according to the spray pattern configuration. An even surface quality can be achieved when the spray paths overlap by 4–5 cm.
• When spraying horizontal objects or spraying overhead, hold the spray gun at a slight angle and move back from the sprayed surface.
  Risk of tripping! Be aware of potential obstacles.
• Avoid interruptions when spraying the target area.

Guiding the spray gun evenly will provide uniform surface quality.
A non-uniform spraying angle and distance will lead to heavy formation of paint mist and consequently an uneven surface.

• End the spraying procedure outside the target area. Never completely empty the container for the spray material by spraying. If the suction tube is no longer immersed in the spray material, the spray jet will be interrupted and this will result in an inconsistent surface.
• After breaks or refilling the container(7), check the paint nozzle (10)/(9) and the air cap (2) and clean them if required.
• If the spray material settles on the air cap(2) or the paint nozzle, clean the components with a suitable brush or a damp cloth.

Adjusting the spray pattern

• Never actuate the trigger switch (6) while adjusting the air cap (2).
  • Turn the air cap (2) to the required position.

Air cap	Spray jet pattern	Application
		Horizontal flat jet for vertical working direction
		Vertical flat jet for horizontal working direction
		Round jet for corners, edges and hard to reach locations

Setting the spray material quantity (see figure G)

(PAINT Volume)

• Turn the thumbwheel(5) to set the required spraying capacity:
  −: Minimum quantity of spraying material,
  +: Maximum quantity of spraying material.
• Start with a spray test with the minimum spray material volume and increase the volume until the required spray pattern is achieved. If a satisfactory spray pattern is not achieved, dilute the spray material in 5% increments (see "Preparing the spray material").

Please note: The intensity of the paint application is highly dependent on the moving speed.

Spray material volume	Setting
Too much material on target area	The spray material volume must be reduced. – Turn the thumbwheel (5) in direction –.
Not enough material on target area	The spray material volume must be increased. – Turn the thumbwheel (5) in direction +.

Dampening Wallpaper
To make it easier to remove old wallpaper, you can spray warm water on the wallpaper (max. 55°C). Use the grey paint nozzle (9) to do so.

Work breaks and transport (see figure H–I)


A carrying handle (23) and a carrying strap (24) are fitted to the base unit to enable easy transport of the fine-spray system.
You can hang the base unit (21) across your shoulder during work using the carrying strap (24).
The spray gun (1)can be put down on a flat work surface during breaks. No spray material can leak out.

• Always put the spray gun upright on a flat surface when it is filled with spray material. Spray material can leak out from a spray gun if it is lying down.

Maintenance and Service

Maintenance and Cleaning

• Pull the plug out of the socket before carrying out any work on the power tool.
• To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.

In order to avoid safety hazards, if the power supply cord needs to be replaced, this must be done by Bosch or by an after-sales service centre that is authorised to repair Bosch power tools.

• Thoroughly clean the individual parts of the fine-spray system immediately after each use, especially all paint-carrying components. Proper cleaning is a prerequisite for faultless and safe operation of the spray gun. No warranty claims will be accepted if cleaning has not been done at all or has not been done properly.

Cleaning the air filter (see figure J)

The air filter (28) must be cleaned occasionally. The air filter must be replaced if it is heavily contaminated.

• Open the air filter cover(25).
• Remove the air filter(28).
• Light contamination:
  Knock on the air filter (28). or Heavy contamination:
  Clean the air filter (28) under running water and subsequently leave it to dry thoroughly, in order to prevent mould from forming.
  or
  Replace the air filter (28).
• Reinsert the air filter.
• Close the air filter cover(25) again.
• Never use the fine-spray system without air filter. Dirt particles may get into the motor compartment and damage it.

Cleaning After Using Water-Based Paints (see figure K)

Always clean the spray gun and the spray material container with warm water.
Never clean the nozzle and air holes in the spray gun with pointed objects.

• Switch off the base unit(21) and remove the air hose (19 from the spray gun (1).
• Remove the container(7) from the spray gun (1). Hold the container (7) underneath the suction tube (13) and pull the trigger switch (6) on the spray gun so that the spray material can flow back into the container.
• Empty the container(7).
  The spray material can be stored in an airtight, sealed paint container for other applications. Use the spare container (8) with cover or the original spray material container, for example, for this purpose.
• Clean the container(7).
• Remove the suction tube(13) with the container seal (16) and rinse it thoroughly. Reattach the suction tube (13) with the container seal (16) to the spray gun.
• Fill the container(7) with warm water and fit it to the spray gun (1)again.
• Connect the air hose(19 to the spray gun (1)again.
• Spray until only clear water comes out. You may have to fill the container with warm water again.
• Remove the air hose(19 from both the base unit (21) and the spray gun (1).
• Clean the base unit if necessary with a moistened cloth and then remove the base unit(21) and the air hose (19 from the immediate cleaning environment.
• Remove the cap nut(3), the air cap (2), the gasket (12), the paint nozzle used (10)/(9) with the O-ring (11) and the suction tube (13) with the container seal (16). When doing so, ensure that the O-ring (11) remains on the paint nozzle.
• Clean all paint-carrying parts in a bucket with warm water using a commercially available washing-up brush. Also clean the paint channel(18) of the spray gun (1).
• Check that the suction tube(13) and the container seal (16) are free of spray material and undamaged. If required, clean the container seal (16) again with warm water.
• Clean the ventilation hole(17) using a suitable object.
• Clean the outside of the container(7) and the spray gun (1)with a damp cloth.
• Allow all components to dry thoroughly before assembling them.
• Reassemble the fine-spray system in reverse order. Slide the container seal(16) upwards again into the groove of the suction tube (13).
  Ensure that the container seal is positioned precisely all around in the suction tube groove in order to seal the spray gun correctly.
  Make sure that you slide the suction tube (13) all the way back onto the paint channel (18).

Cleaning After Using Solvent-Based Paints (see figure K)
Always clean the spray gun and the container for the spray material with the respective diluting agent for the spray material being used.
Never clean the nozzle and air holes in the spray gun with pointed objects.
Wear suitable gloves during cleaning work involving solvents and solvent-based paints.

• Switch off the base unit(21) and remove the air hose (19 from the spray gun (1).
• Clean the base unit if necessary with a cloth moistened with diluting agent and then remove the base unit(21) and the air hose (19 from the immediate cleaning environment.
• Remove the container(7) from the spray gun (1). Hold the container (7) underneath the suction tube (13) and pull the trigger switch (6) on the spray gun so that the spray material can flow back into the container.
• Empty the container(7).
  The spray material can be stored in an airtight, sealed paint container for other applications. Use the spare container (8) with cover or the original spray material container, for example, for this purpose.
• Clean the container(7).
• Remove the suction tube(13) with the container seal (16) and rinse it thoroughly. Reattach the suction tube (13) with the container seal (16) to the spray gun.
• Fill the container(7) halfway with solvent and fit it to the spray gun (1)again.
• Shake the spray gun several times.
  Make sure that you do not spray the diluting agent. There is a risk of explosion.
• Remove the container(7) from the spray gun (1)and empty it completely into a sealable material tin.
• Remove the cap nut(3), the air cap (2), the gasket (12), the paint nozzle used (10)/(9) with the O-ring (11) and the suction tube (13) with the container seal (16). When doing so, ensure that the O-ring (11) remains on the paint nozzle.
• Clean all paint-carrying parts in a bucket with diluting agent using a commercially available washing-up brush.
  Also clean the paint channel (18) of the spray gun (1).
• Check that the suction tube(13) and the container seal (16) are free of spray material and undamaged. If required, clean the container seal (16) again with diluting agent.
• Clean the ventilation hole(17) using a suitable object.
• Clean the outside of the container(7) and the spray gun (1)with a cloth moistened in diluting agent.
• Allow all components to dry thoroughly before assembling them.
• Reassemble the fine-spray system in reverse order. Slide the container seal(16) upwards again into the groove of the suction tube (13).
  Ensure that the container seal is positioned precisely all around in the suction tube groove in order to seal the spray gun correctly.
  Make sure that you slide the suction tube (13) all the way back onto the paint channel (18).

Storage

• Before putting the fine-spray system into storage, thoroughly clean the fine-spray system and allow all parts to dry completely before assembling them.

If the fine-spray system is not being used, the elastic band together with the pin on the base unit (21) serve as a practical storage option for the air hose (19).

Troubleshooting

After-Sales Service and Application Service
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com
The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.
In all correspondence and spare parts orders, please always include the 10‑digit article number given on the nameplate of the product.

Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
You can find further service addresses at:
www.bosch-pt.com/serviceaddresses
