General Power Tool Safety Warnings
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/ or serious injury.
Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
Electrical safety
Personal safety
Power tool use and care
Battery tool use and care
Service
Safety instructions for jigsaws
Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.
Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.
Please observe the illustrations at the beginning of this operating manual.
Intended Use
GST 18 V-LI S
The power tool is intended for making separating cuts and cut-outs in wood, plastic, metal, ceramic plates and rubber while resting firmly on the workpiece. It is suitable for straight and curved cuts. The saw blade recommendations are to be observed.
GST 18 V-LI B
The power tool is intended for making separating cuts and cut-outs in wood, plastic, metal, ceramic plates and rubber while resting firmly on the workpiece. It is suitable for straight and curved cuts with mitre/bevel angles of up to 45°. Note the saw blade recommendations.
Product Features
The numbering of the product features refers to the diagram of the power tool on the graphics page.
a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.
Technical Data
Technical data determined using the battery that comes with the product.
Noise/Vibration Information
The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to compare power tools. They may also be used for a preliminary estimation of vibration and noise emissions.
The stated vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different application tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period.
To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period.
Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly.
Battery Charging
Battery charge indicator
The green LEDs on the battery charge indicator indicate the state of charge of the battery. For safety reasons, it is only possible to check the state of charge when the power tool is not in operation.
Press the button for the battery charge indicator or
to show the state of charge. This is also possible when the battery is removed.
If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced.
Battery model GBA 18V...
LEDs | Capacity |
3× continuous green light | 60−100% |
2× continuous green light | 30−60% |
1× continuous green light | 5−30% |
1× flashing green light | 0−5% |
Battery model ProCORE18V...
LEDs | Capacity | ||
5× continuous green light | 80−100% | ||
4× continuous green light | 60−80% | ||
3× continuous green light | 40−60% | ||
2× continuous green light | 20−40% | ||
1× continuous green light | 5−20% | ||
1× flashing green light | 0−5% |
Inserting/changing the saw blade
Selecting the saw blade
You will find an overview of recommended saw blades at the end of these operating instructions. Only use saw blades with single lug shank (T shank). The saw blade should not be longer than required for the intended cut.
Use a narrow saw blade when sawing tight curves.
Inserting the saw blade (see figure A)
Ejecting the saw blade (see figure B)
Glide shoe (see figure C)
The plastic guide plate (6) of the base plate (7) reduces scratching on sensitive surfaces. Use the steel glide shoe (18) when machining metal.
Fit the steel glide shoe (18) by sliding it onto the base plate (7) from the front.
The plastic guide plate (6) should be replaced if it is worn.
Anti-splinter guard (see figure D)
The anti-splinter guard (19) (accessory) can prevent splintering of the surface while sawing wood. The anti-splinter guard can only be used with certain saw blade types and only at a cutting angle of 0°. When sawing with the anti-splinter guard, the base plate (7) must not be moved to the rear for sawing close to edges.
Slide the anti-splinter guard (19) into the base plate (7) from the front.
Dust/Chip Extraction
The dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to human health. Touching or breathing in this dust can trigger allergic reactions and/or cause respiratory illnesses in the user or in people in the near vicinity.
Certain dusts, such as oak or beech dust, are classified as carcinogenic, especially in conjunction with wood treatment additives (chromate, wood preservative). Materials containing asbestos may only be machined by specialists.
The regulations on the material being machined that apply in the country of use must be observed.
Connecting the dust extraction (see figures E–F)
Fit the extraction outlet (20) in the recesses of the base plate (7).
Connect a dust extraction hose (21) (accessory) to the extraction outlet (20). Connect the dust extraction hose (21) to a dust extractor (accessory).
You will find an overview of connecting to various dust extractors at the end of these operating instructions.
For optimum dust extraction, where possible use the antisplinter guard (19).
The dust extractor must be suitable for the material being worked.
When extracting dry dust that is especially detrimental to health or carcinogenic, use a special dust extractor.
Operating modes
Pendulum action settings
The pendulum action can be adjusted using four different settings, allowing the cutting speed, cutting capacity and the cut itself to be optimally adapted to the material that you want to cut.
You can also adjust the pendulum action during operation using the adjusting lever (8).
![]() | No pendulum action |
![]() | Low pendulum action |
![]() | Moderate pendulum action |
![]() | High pendulum action |
The optimum pendulum level for each application can be determined by a practical test. Note the following recommendations:
Setting the mitre/bevel angle (see figure G)
(GST 18 V‑LI B)
The base plate (7) can be swivelled to the right or left to make mitre cuts up to 45°.
The extraction outlet (20) and anti-splinter guard (19) cannot be used while mitre/bevel cuts are being made.
Moving the base plate (see figure G) (GST 18 V‑LI B)
You can move the base plate (7) back for sawing close to edges.
Loosen the screw of the base plate (22) with the hex key (5) and slide the base plate (7) all the way towards the battery (3).
Retighten the screw (22).
Sawing with an offset base plate (7) is only possible with a mitre angle of 0°. In all other cases the anti-splinter guard (19) may not be used.
Starting Operation
Inserting the battery
Note: The use of batteries unsuitable for your power tool can lead to malfunctions or damage to the power tool.
Slide the charged battery (3) from below into the foot of the power tool. Press the battery fully into the base until the battery is securely locked.
Switching on the LED worklight (GST 18 V‑LI S)
To switch the worklight (12) on or off, press the worklight button (15).
Switching On and Off (GST 18 V‑LI S)
Switching On and Off (GST 18 V‑LI B)
To switch on the power tool, press the lock-off button (1) next to the symbol first, thereby deactivating it. Then press the on/off switch (2) and keep it pressed.
The worklight lights up when the on/off switch (2) is lightly or fully pressed allowing the work area to be illuminated in poor lighting conditions.
To switch off the power tool, release the on/off switch (2). Activate the lock-off button (1) by pressing the lock-off button next to the symbol .
Note: For safety reasons, the on/off switch (2) cannot be locked; it must remain pressed during the entire operation.
Preselecting the stroke rate (GST 18 V‑LI S)
You can also preselect the stroke rate and change it during operation using the stroke rate preselection thumbwheel (16).
The required stroke rate is dependent on the material and the work conditions and can be determined using practical tests.
It is recommended that you reduce the stroke rate when placing the saw blade on the workpiece and when sawing plastic and aluminium.
During prolonged periods of use at a low stroke rate, the power tool may heat up significantly. Remove the saw blade and let the power tool run at the maximum stroke rate for around three minutes to cool down.
Controlling the stroke rate (GST 18 V‑LI B)
You can variably adjust the stroke rate of the power tool when it is on by pressing in the on/off switch (2) to varying extents.
Applying light pressure to the on/off switch (2) results in a low stroke rate. Applying increasing pressure to the switch increases the stroke rate.
The required stroke rate is dependent on the material and the work conditions and can be determined using practical tests.
It is recommended that you reduce the stroke rate when placing the saw blade on the workpiece and when sawing plastic and aluminium.
During prolonged periods of use at a low stroke rate, the power tool may heat up significantly. Remove the saw blade and let the power tool run at the maximum stroke rate for around three minutes to cool down.
Temperature-dependent overload protection
In normal conditions of use, the power tool cannot be overloaded. If the power tool is overloaded or not kept within the permitted battery temperature range, the speed is reduced or the power tool switches off. At reduced speed, the power tool will run again at full speed once the permitted battery temperature is reached or the load is reduced. If it automatically shuts down, switch the power tool off, allow the battery to cool down, then switch the power tool back on.
Working Advice
Plunge cutting (see figure H)
For plunge cutting, use only short saw blades. Plunge cutting is possible only with a mitre angle of 0°.
Place the power tool so that the front edge of the base plate (7) rests on the workpiece, without the saw blade (10) touching the workpiece, and switch it on. On power tools with stroke rate control, select the maximum stroke rate. Press the power tool firmly against the workpiece and allow the saw blade to plunge slowly into the workpiece.
As soon as the base plate (7) rests fully on the workpiece, continue sawing along the required cutting line.
Coolant/lubricant
As the material heats up along the cutting line when cutting metal, you should apply coolant or lubricant.
Recommendations for Optimal Handling of the Battery
Protect the battery against moisture and water.
Only store the battery within a temperature range of −20 to 50°C. Do not leave the battery in your car in the summer, for example.
Occasionally clean the ventilation slots on the battery using a soft brush that is clean and dry.
A significantly reduced operating time after charging indicates that the battery has deteriorated and must be replaced. Follow the instructions on correct disposal.
Maintenance and Cleaning
Clean the saw blade receptacle regularly. For this, remove the saw blade from the power tool and lightly tap out the power tool on a level surface.
If the power tool becomes very dirty, this can lead to serious faults. For this reason, do not cut materials which generate large quantities of dust from below or overhead.
If the dust outlet becomes blocked, switch off the power tool, disconnect the dust extraction system and remove the dust and chips.
Apply a drop of oil to the guide roller (9) from time to time. Check the guide roller (9) regularly. If worn, it must be replaced through an authorised Bosch after-sales service centre.
After-Sales Service and Application Service
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com
The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.
In all correspondence and spare parts orders, please always include the 10‑digit article number given on the nameplate of the product.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
You can find further service addresses at: www.bosch-pt.com/serviceaddresses
Transport
The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The batteries are suitable for road-transport by the user without further restrictions.
When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.
Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

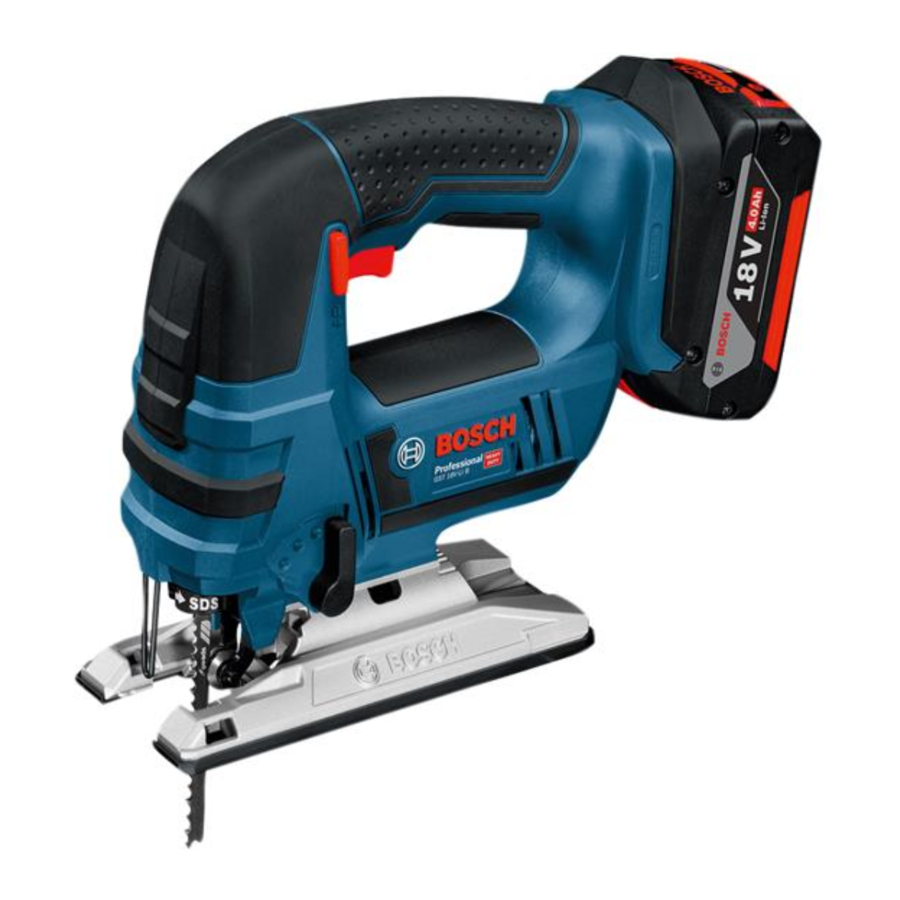

Download Bosch Professional GST 18 V-LI S / GST 18 V-LI B Manual
