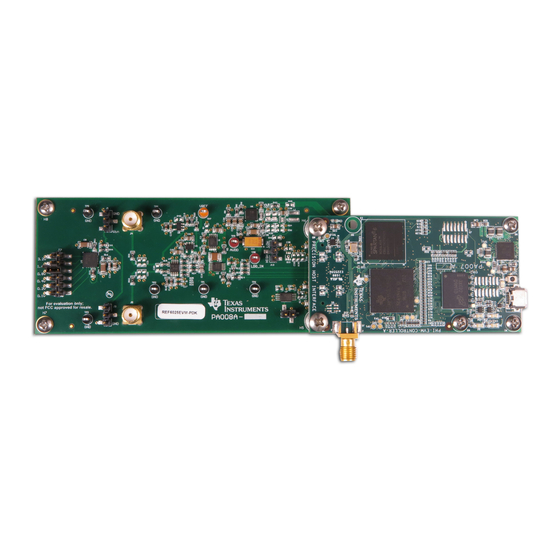

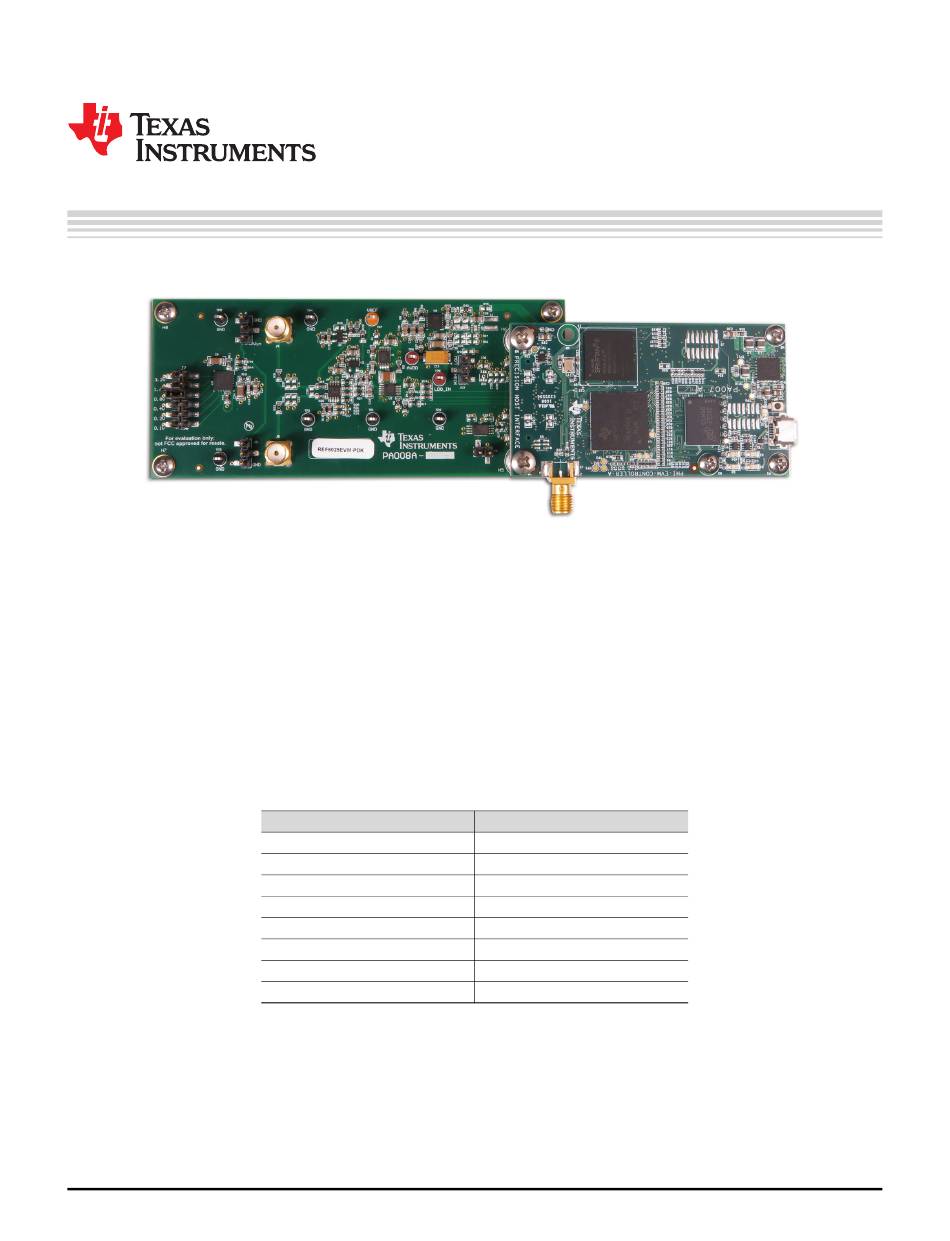

This user's guide describes the characteristics, operation, and use of the ADS8881EVMV2 (evaluation
module) paired with a TI Precision Host Interface (PHI) Controller. This board is an evaluation platform for
the
ADS8881
and can also be used to evaluate the
differential unipolar successive approximation register (SAR) analog-to-digital converter (ADC) with a
maximum throughput of 1 MSPs. The device is a very-low-power ADC with excellent noise and distortion
performance for AC or DC signals. The REF6045 is a high-precision voltage reference with an integrated
high-bandwidth buffer designed specifically to drive the REF pin of a SAR ADC. On this EVM, the
REF6045 drives the reference of the ADS8881. This user's guide includes complete circuit descriptions,
schematic diagrams, and a bill of materials.
The PHI eases EVM evaluation using additional hardware and software by providing computer
connectivity through the universal serial bus (USB) interface.
The following related documents are available through the Texas Instruments website at www.ti.com.
......................................................................................................................
1
Overview
1.1
ADS8881EVMV2 Features
1.2
ADS8881EVMV2-PDK Features
2
EVM Analog Interface
2.1
ADC Analog Input Signal Path and Options
2.2
Differential Input Signal Configuration
SBAU281A – May 2017 – Revised October 2017
Submit Documentation Feedback
ADS8881EVMV2-PDK User's Guide
Related Documentation
Device
ADS8881
REF6045
THS4551
OPA333
OPA320
LP38798
REF5045
TPS78833
Contents
........................................................................................
..................................................................................
......................................................................................................
...........................................................................
Copyright © 2017, Texas Instruments Incorporated
SBAU281A – May 2017 – Revised October 2017
REF6045
device. The ADS8881 is an 18-bit true-
Literature Number
SBAS547D
SBOS708B
SBOS778B
SBOS351
SBOS513F
SNOSCT6
SBOS410H
SLVU059
....................................................................
ADS8881EVMV2-PDK User's Guide
User's Guide
3
3
3
4
4
5
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADS8881EVMV2-PDK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments ADS8881EVMV2-PDK

  • Page 1 The PHI eases EVM evaluation using additional hardware and software by providing computer connectivity through the universal serial bus (USB) interface. The following related documents are available through the Texas Instruments website at www.ti.com. Related Documentation Device...
  • Page 2: Table Of Contents

    Windows 7, Windows 8 are registered trademarks of Microsoft Corporation. LabVIEW is a trademark of National Instruments. All other trademarks are the property of their respective owners. ADS8881EVMV2-PDK User's Guide SBAU281A – May 2017 – Revised October 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 3 Software suite including graphical tools for data capture, histogram analysis, and spectral analysis (FFT) (The software suite has a provision for exporting data to a text file for post-processing.) SBAU281A – May 2017 – Revised October 2017 ADS8881EVMV2-PDK User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 4: Analog Input Options On The Ads8881Evmv2

    AIN(–) Negative differential input. Ground this pin for single-ended signals. JP2.2 AIN(+) Positive differential input or input for single-ended signals ADS8881EVMV2-PDK User's Guide SBAU281A – May 2017 – Revised October 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 5: Single-Ended Signal Configuration

    1 NŸ 2.35 V -2.15 V 0.1 V Copyright © 2017, Texas Instruments Incorporated Figure 1. Differential Input Example Single-Ended Signal Configuration The ADS8881 can only convert single-ended signals between 0 V and V . The THS4551 can condition a single-ended signal to a differential signal, which allows for a larger input voltage range to the EVM input AIN(+) .The THS4551 can condition a single-ended input signal to a differential signal allowing a 0 V to 5...
  • Page 6: Onboard Dc Input Configuration

    Reference GND_F FILT GND_S AIN+ ADS8881 THS4551 AIN- Copyright © 2017, Texas Instruments Incorporated Figure 3. ADS8881EVMV2 Schematic Block Diagram ADS8881EVMV2-PDK User's Guide SBAU281A – May 2017 – Revised October 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 7: Power Supplies

    EVM GUI installer. Depending on the anti-virus settings, an error message may appear or the installer .exe file may be deleted. Figure 4. ADS8881 Software Installation Prompts SBAU281A – May 2017 – Revised October 2017 ADS8881EVMV2-PDK User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 8: Device Driver Installation Wizard Prompts

    At the end of these installations, make sure that the Create Desktop Shortcut and Run ADS8881 EVM options are selected, as shown in Figure Figure 6. ADS8881EVM GUI Installation Final Step ADS8881EVMV2-PDK User's Guide SBAU281A – May 2017 – Revised October 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 9: Ads8881Evmv2 Operation

    8. The rate at which LED D2 blinks slows down, indicating that the GUI is successfully communicating with the ADS8881EVMV2. Figure 8. Launch the EVM GUI Software SBAU281A – May 2017 – Revised October 2017 ADS8881EVMV2-PDK User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 10: Evm Gui Global Settings For Adc Configuration And Data Capture

    (in Hz). The achievable ADC sampling rate may differ from the target value depending on the applied SCLK frequency and the closest match that is displayed. ADS8881EVMV2-PDK User's Guide SBAU281A – May 2017 – Revised October 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 11: Time Domain Display Tool

    Figure 10. Time Domain Data Capture with Data Export Option SBAU281A – May 2017 – Revised October 2017 ADS8881EVMV2-PDK User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 12: Spectral Analysis Tool

    ADC. Note that the None option corresponds to the absence of a windowing function or using a rectangular window. TI does not recommend using this option. ADS8881EVMV2-PDK User's Guide SBAU281A – May 2017 – Revised October 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 13: Histogram Tool

    The histogram corresponding to a DC input is displayed by clicking on the Capture button as Figure 12 shows: Figure 12. Histogram Analysis Tool SBAU281A – May 2017 – Revised October 2017 ADS8881EVMV2-PDK User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 14: Linearity Analysis Tool

    × 4.57 × 10 ) + 9.14 V S_DIFF Maximum noise 30 µV Maximum SNR 100 dB Maximum THD –130 dB ADS8881EVMV2-PDK User's Guide SBAU281A – May 2017 – Revised October 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 15: Linearity Analysis Tool

    10 µVrms of noise, the total number of hits must be 512. For a source with 100-dB SNR, TI recommends 1024 hits. Figure 13. Linearity Analysis Tool SBAU281A – May 2017 – Revised October 2017 ADS8881EVMV2-PDK User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 16: Reference Settling Analysis

    The difference between maximum and minimum codes from the averaged data defines the Reference Settling error. Figure 14. Reference Settling Tool ADS8881EVMV2-PDK User's Guide SBAU281A – May 2017 – Revised October 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 17: Pairing With Precision Signal Injector Evm

    The PSIEVM can be paired with the ADS8881EVMV2 and PHI to easily evaluate the AC and DC performance of the ADS8881EVMV2. SBAU281A – May 2017 – Revised October 2017 ADS8881EVMV2-PDK User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 18: Bill Of Materials, Pcb Layout, And Schematics

    R31, R33, R38 CRCW060310R0FKEA Vishay-Dale RES, 10.0, 1%, 0.1 W, 0603 ERJ-3RQFR22V R18, R24 Panasonic RES, 0.22 ohm, 1%, 0.1W, 0603 ADS8881EVMV2-PDK User's Guide SBAU281A – May 2017 – Revised October 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 19 Precision, 20MHz, 0.9 pA Ib, RRIO, CMOS Operational Amplifier, 1.8 to 5.5 V, -40 to 125 degC, 5-pin SOT-23 REF5045AIDGKT Texas Instruments Low Noise, Very Low Drift, Precision Voltage Reference, -40 to 125 degC, 8-pin MSOP SBAU281A – May 2017 – Revised October 2017 ADS8881EVMV2-PDK User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 20: Pcb Layout

    EVM PCB layout. Figure 15. ADS8881EVMV2 PCB Layer 1: Top Layer Figure 16. ADS8881EVMV2 PCB Layer 2: GND Plane ADS8881EVMV2-PDK User's Guide SBAU281A – May 2017 – Revised October 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 21: Schematic

    Figure 17. ADS8881EVMV2 PCB Layer 3: Power Planes Figure 18. ADS8881EVMV2 PCB Layer 4: Bottom Layer Schematic Figure 19 Figure 20 illustrate the EVM schematics. SBAU281A – May 2017 – Revised October 2017 ADS8881EVMV2-PDK User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 22: Schematic Diagram (Page 1) Of Ads8881Evmv2 Pcb

    BR24G32FVT-3AGE2 0.1 V 3.52k 1.00k 1.00k 4.99 49.9 0.01µF 1.26k 22.9 Figure 19. Schematic Diagram (Page 1) of ADS8881EVMV2 PCB ADS8881EVMV2-PDK User's Guide SBAU281A – May 2017 – Revised October 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 23: Schematic Diagram (Page 2) Of The Ads8881Evmv2 Pcb

    This Assembly Note will show in the PcbDoc and asso ciated outputs Figure 20. Schematic Diagram (Page 2) of the ADS8881EVMV2 PCB SBAU281A – May 2017 – Revised October 2017 ADS8881EVMV2-PDK User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 24: Revision History

    NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Original (May 2017) to A Revision ......................Page ........................• Changed Figure 19 ........................• Changed Figure 20 Revision History SBAU281A – May 2017 – Revised October 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
