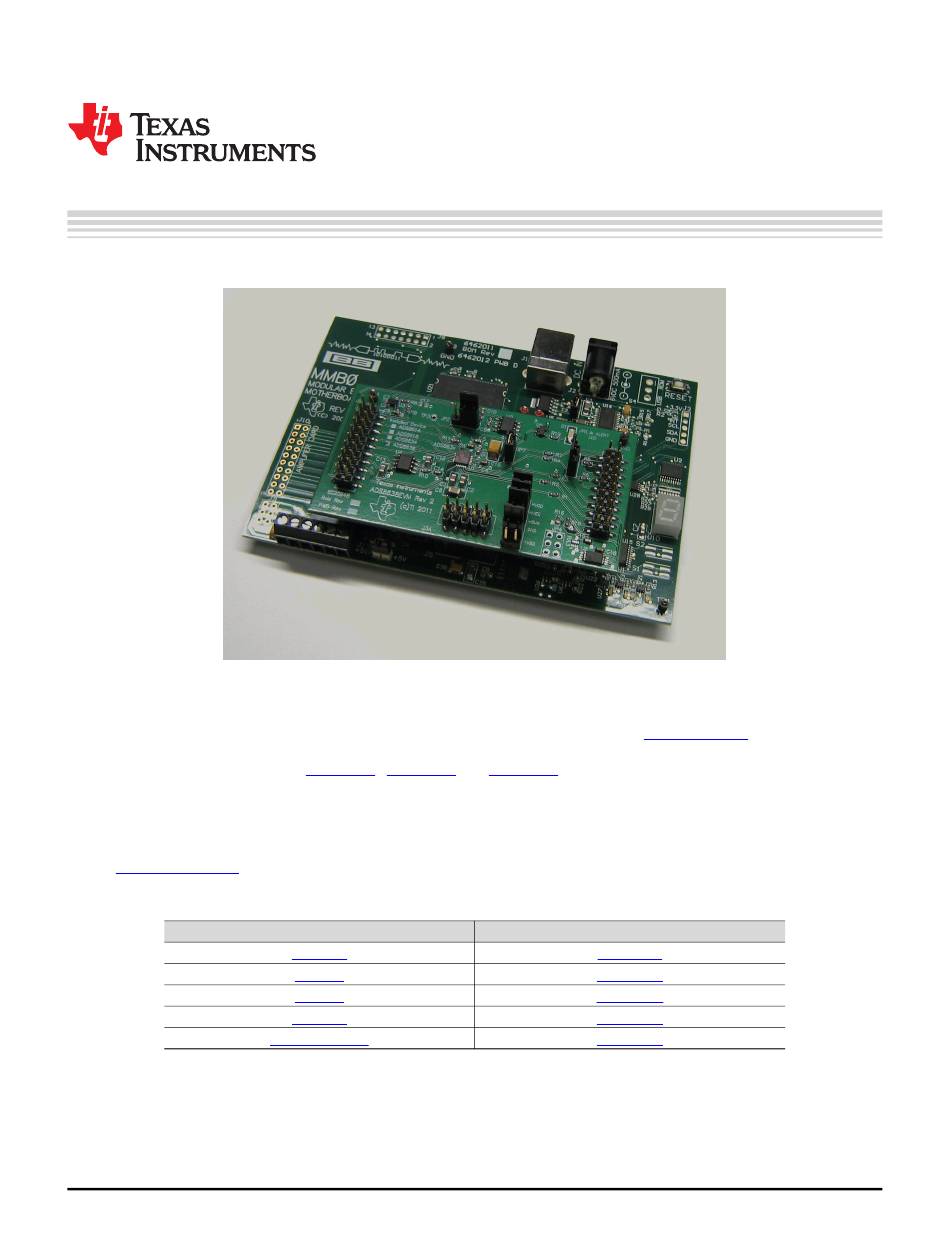

This user's guide describes the characteristics, operation, and use of the ADS8638EVM, both by itself and
as a part of the ADS8638EVM-PDK. This evaluation module (EVM) is designed to feature the ADS8638
but can also support the ADS8614, ADS8618, or
either an 8- or 12-bit, 1-MHz, multi-channel, successive approximation register (SAR) analog-to-digital
converters (ADCs). The EVM allows evaluation of all aspects of the ADS8638 device. A complete circuit
description as well as schematic diagram and bill of materials are included.
The following related documents are available for download through the Texas Instruments web site at
http://www.ti.com.
ADCPro is a trademark of Texas Instruments.
Microsoft, Windows are registered trademarks of Microsoft Corporation.
SPI is a trademark of Motorola, Inc.
All other trademarks are the property of their respective owners.
SBAU192A – July 2011 – Revised February 2016
Submit Documentation Feedback
ADS8638EVM-PDK
Table 1. EVM-Related Device Data Sheets
Device
ADS8638
OPA140
OPA379
REF5025
SN74LVC1G17D
Copyright © 2011–2016, Texas Instruments Incorporated
SBAU192A – July 2011 – Revised February 2016
ADS8638EVM-PDK
ADS8634
if installed. This family of devices includes
Literature Number
SBAS541A
SBOS498A
SBOS347D
SBOS410E
SCES351R
User's Guide
1
ADS8638EVM-PDK
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments ADS8638EVM
Summary of Contents for Texas Instruments ADS8638EVM
-
Page 1: Evm-Related Device Data Sheets
ADS8638EVM-PDK ADS8638EVM-PDK This user's guide describes the characteristics, operation, and use of the ADS8638EVM, both by itself and as a part of the ADS8638EVM-PDK. This evaluation module (EVM) is designed to feature the ADS8638 but can also support the ADS8614, ADS8618, or ADS8634 if installed. -
Page 2: Table Of Contents
J1: Analog Interface Header ....................J2: Serial Interface Header ..................J3: Power-Supply Interface Header ..................JP3 Configuration: Power Options ......................Bill of Materials ADS8638EVM-PDK SBAU192A – July 2011 – Revised February 2016 Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated... -
Page 3: Evm Overview
EVM and the term evaluation module are synonymous with the ADS8638EVM. For clarity of reading, the rest of this manual will refer only to the ADS8638EVM or ADS8638EVM-PDK, but operation of the EVM and kit for the ADS8614, ADS8618, and ADS8634 is identical, unless otherwise noted. -
Page 4: Analog Interface
Analog Interface For maximum flexibility, the ADS8638EVM is designed for easy interfacing to multiple analog sources. Samtec part numbers SSW-110-22-F-D-VS-K and TSM-110-01-T-DV-P provide a convenient 10-pin, dual row header/socket combination at J1. This header/socket provides access to the analog input pins of the ADC. -
Page 5: Digital Interface
J3.6 Analog ground input J3.7 +1.8VD 1.8-V digital supply Yes/Optional J3.8 Unused J3.9 +3.3VD 3.3-V digital supply Yes/Optional J3.10 +5VD Unused Yes/Optional SBAU192A – July 2011 – Revised February 2016 ADS8638EVM-PDK Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated... -
Page 6: Reference Voltages
+3.3-VD jumper is installed. The ADS8638EVM has the option to either set +1.8 VD or +3.3 VD as the ADS8638 DVDD supply. Install a jumper across pins 9-10 to set DVDD = 3.3 V, or install a jumper across pins 11-12 to set DVDD = 1.8 V. -
Page 7: Digital Control
EVM Operation www.ti.com Digital Control The digital control signals can be applied directly to J2 (top or bottom side). The modular ADS8638EVM can also be connected directly to a DSP or microcontroller interface board, such as the 5-6K Interface HPA-MCU Interface boards available from Texas Instruments, or the MMB0 if purchased as part of the ADS8638EVM-PDK. -
Page 8: Ads8638Evm-Pdk Installer
ADS86xxEVM-PDK plug-in is installed. Figure 2. ADS8638EVM-PDK Installer Continue through the pop-up screens until the plug-in is completely installed. Figure 3. Completed ADS8638EVM-PDK Installer ADS8638EVM-PDK SBAU192A – July 2011 – Revised February 2016 Submit Documentation Feedback... -
Page 9: Mmb0 Initial Setup

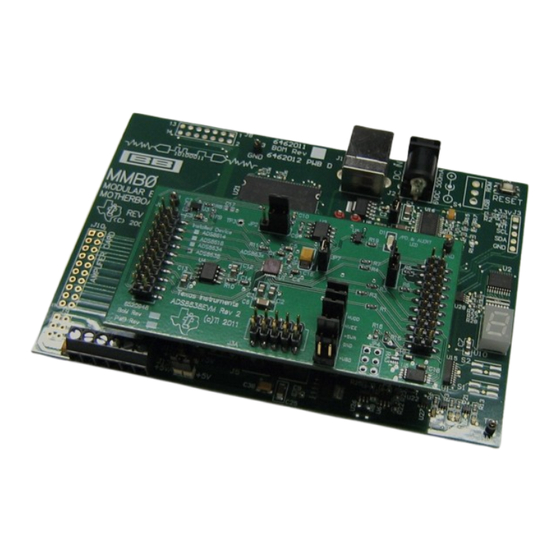

ADS8638EVM-PDK Kit Operation www.ti.com Setting Up the ADS8638EVM-PDK The ADS8638EVM-PDK contains both the ADS8638EVM and the MMB0 motherboard; however, the devices are shipped unconnected. Follow these steps to set up the ADS8638EVM-PDK. Step 1. Unpack the ADS8638EVM-PDK kit. Step 2. Set the jumpers and switches on the MMB0 as shown in Figure •... -
Page 10: Connecting Ads8638Evm To Mmb0
The MMB0 is a Modular EVM System motherboard. It is designed around the TMS320VC5507, a DSP with an onboard USB interface from Texas Instruments. The MMB0 also has 16 MB of SDRAM installed. The MMB0 is not sold as a DSP development board, and it is not available separately. TI cannot offer support for the MMB0 except as part of an EVM kit. -
Page 11: Connecting The Power Supply
Connecting the Power Supply The ADS8638EVM-PDK requires multiple supplies to power the ADC to be used with the MMB0 motherboard. The ADS8638 requires two high-voltage supplies (±10 V to ±15 V), HVDD and HVEE, along with a +5-V supply to power the analog, AVDD, and +3.3 V to +5 V to power the digital circuitry, DVDD. -
Page 12: Ni-Visa Driver Installation
The program for evaluating the ADS8638EVM-PDK is called ADCPro. This program uses plug-ins to communicate with the EVM. The ADS8638EVM-PDK plug-in is included in the ADS8638EVM-PDK package. -
Page 13: Ads86Xxevm-Pdk Plug-In
The status area displays Connected to EVM when the device is connected and ready to use. If the firmware does not load properly, you can try resetting the MMB0 by pressing Reset and then reloading the plug-in. SBAU192A – July 2011 – Revised February 2016 ADS8638EVM-PDK Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated... -
Page 14: Evaluating Performance With The Adcpro Software
You can adjust the ADS8638EVM settings when you are not acquiring data. During acquisition, all controls are disabled and settings may not be changed. When you change a setting on the ADS8638EVM plug-in, the setting immediately updates on the board. Settings on the ADS8638EVM correspond to settings described in the ADS8638 product data sheet (available for download at www.ti.com). -
Page 15: Device Configuration
ADC. Basic information, such as the Plug-in version and Firmware version, is shown here along with some simple settings use to set up the ADC according to user preferences. SBAU192A – July 2011 – Revised February 2016 ADS8638EVM-PDK Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated... - Page 16 The data rate displayed in the top right corner of the plugin refers to all enabled channels to be converted. ADS8638EVM-PDK SBAU192A – July 2011 – Revised February 2016 Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated...
-
Page 17: Channels Tabs
Evaluating Performance with the ADCPro Software www.ti.com Figure 10. Channels Tabs SBAU192A – July 2011 – Revised February 2016 ADS8638EVM-PDK Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated... -
Page 18: Gpios & Alarms Tab
ADS8638 product data sheet. The high and low alarms, along with hysteresis settings, behave the same way that the analog input channel alarm settings do. ADS8638EVM-PDK SBAU192A – July 2011 – Revised February 2016 Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated... -
Page 19: Troubleshooting
Once you have configured the ADS8638 for your test scenario, press the ADCPro Acquire button to start the collection of the number of data points specified in the Test plug-in Block Size control. The ADS8638EVM-PDK plug-in disables all the front panel controls while acquiring, and displays a progress bar. -
Page 20: Parts List
EVM Bill of Materials, Schematic, and Layout www.ti.com EVM Bill of Materials, Schematic, and Layout Table 6 contains a complete bill of materials for the modular ADS8638EVM. The schematic diagram is also provided for reference. Figure 12 through Figure 15 show the PCB layouts. -
Page 21: Board Layouts
Board Layouts NOTE: Board layouts are not to scale. These images are intended to show how the board is laid out; they are not intended to be used for manufacturing ADS8638EVM PCBs. Figure 12. ADS8638EVM PCB: Top Layer SBAU192A – July 2011 – Revised February 2016... -
Page 22: Ads8638Evm Pcb: Mid Layer
EVM Bill of Materials, Schematic, and Layout www.ti.com Figure 13. ADS8638EVM PCB: Mid Layer Figure 14. ADS8638EVM PCB: Ground Layer ADS8638EVM-PDK SBAU192A – July 2011 – Revised February 2016 Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated... -
Page 23: Revision History
Revision History Changes from Original (July 2011) to A Revision ......................Page ....• Replaced reference of wall supply to external supply in the Setting Up the ADS8638EVM-PDK section....................• Modified the MMB0 Initial Setup image............... • Modified the Laboratory Power-Supply Connections image. - Page 24 STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein. Acceptance of the EVM is expressly subject to the following terms and conditions.
