ITEM# 1595-90151B-BRN 5/0 Panel Headboard
Caution: Please make sure you have all parts indicated below prior to assembly.
This bed is heavy and can best be assembled with the help of two or more people.
Diagram 2
Diagram 5
Diagram 3
ASSEMBLY INSTRUCTION
1595-90152B-BRN 5/0 Panel Footboard
1595-90167B-BRN 6/0-6/6 Panel Headboard
1595-90168B-BRN 6/0-6/6 Panel Footboard
1595-90153B-BRN 5/0-6/6 Rails
1595-90163B-BRN 6/0 Panel Rails
Diagram 6
1/3
Diagram 1
Advertisement
Related Manuals for Hooker Furniture 1595-90151B-BRN
Summary of Contents for Hooker Furniture 1595-90151B-BRN
- Page 1 ASSEMBLY INSTRUCTION ITEM# 1595-90151B-BRN 5/0 Panel Headboard 1595-90152B-BRN 5/0 Panel Footboard 1595-90167B-BRN 6/0-6/6 Panel Headboard 1595-90168B-BRN 6/0-6/6 Panel Footboard 1595-90153B-BRN 5/0-6/6 Rails 1595-90163B-BRN 6/0 Panel Rails Caution: Please make sure you have all parts indicated below prior to assembly. This bed is heavy and can best be assembled with the help of two or more people.

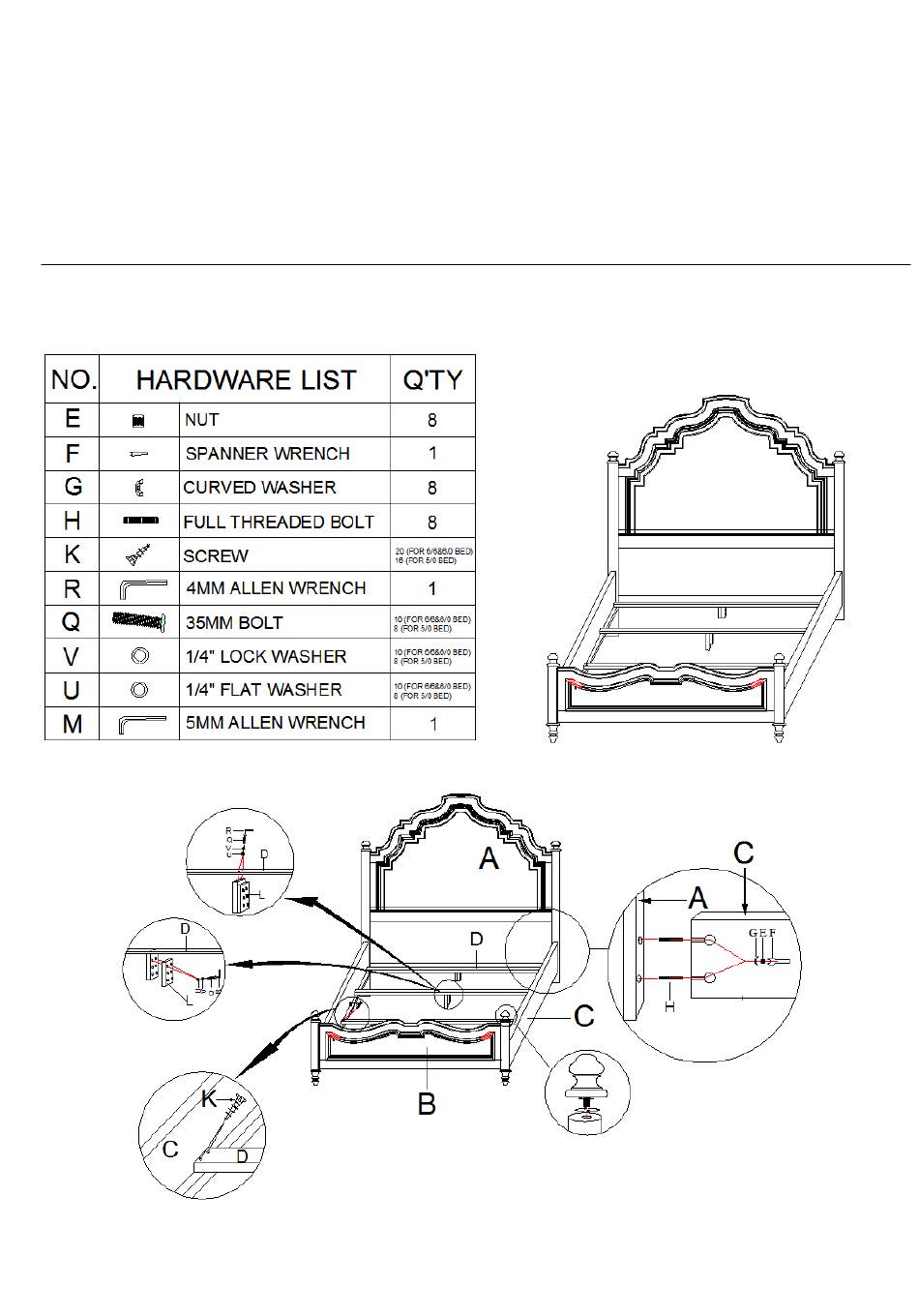

- Page 2 Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails. Assembly steps: 1. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the ends of side rails (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten nuts (E) securely with spanner wrench (F).
- Page 3 4. Insert the finials into footboard posts, and turn finials in clockwise direction until tight. (See Diagram 6) Diagram 6 Note: You can change the height of slats by adjusting the height of cleats on side rails as shown in diagram 4.
