Hooker Furniture 1595-75310E-BRN Assembly Instruction

Splatback wood seat side chair

Item#: 1595-75310E-BRN Splatback Wood Seat Side Chair

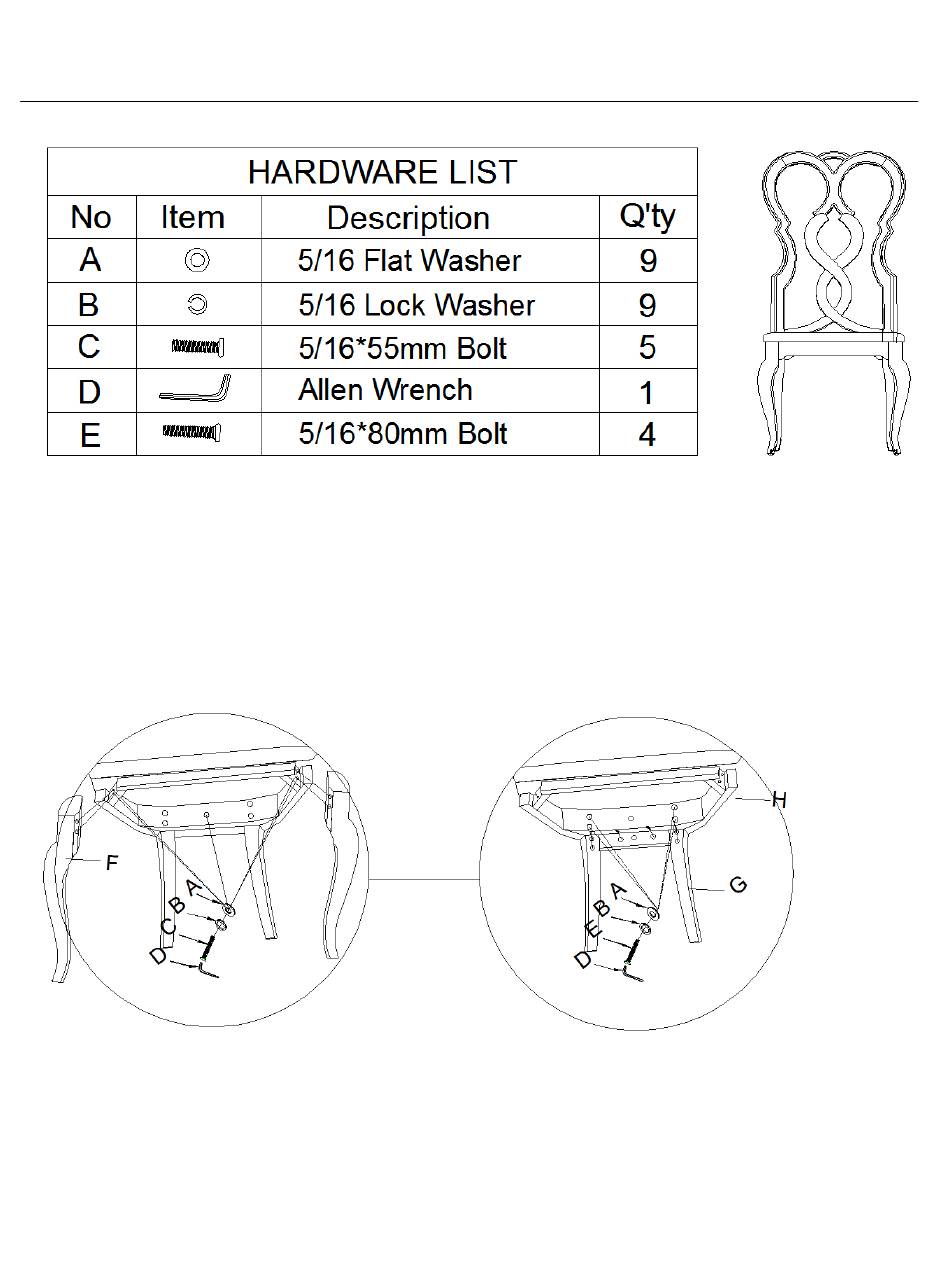

** Please make sure you have all parts indicated below prior to assembly.

Assembly Steps:

There are two K/D chairs in one box. Please follow numbers on one chair and letters on the other during

assembly.

1. Place chair back (G) on a clean surface.

2. Tighten seat frame (H) to the chair back (G) by using bolt (C), lock washer (B) and flat washer (A)

at the center location (see diagram 1). Then, tighten seat frame (H) to chair back (G) by using bolts

(E), lock washers (B) and flat washers (A) at corner blocks. (See diagram 2)

3. Install front legs (F) onto seat frame (H) using bolts (C), lock washers (B) and flat washers (A).

Tighten all bolts(C) by hand. (See diagram 1).

4. After all bolts are attached and hand tightened, turn the chair upright.

5. Level the chair following "chair leveling instruction" as below.

6. Make sure the chair is level and then tighten all bolts completely by using allen wrench (D).

ASSEMBLY INSTRUCTION

DIAGRAM 1

1/2

DIAGRAM 2

Table of Contents

Do you have a question about the 1595-75310E-BRN and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION Item#: 1595-75310E-BRN Splatback Wood Seat Side Chair ** Please make sure you have all parts indicated below prior to assembly. Assembly Steps: There are two K/D chairs in one box. Please follow numbers on one chair and letters on the other during assembly.
Page 2 PLEASE READ THESE INSTRUCTIONS PRIOR TO ASSEMBLING THE CHAIRS CHAIR LEVELING INSTRUCTION SUPPLEMENT Chair leveling procedures: To make the assembly process easy and efficient, please read entire instruction sheet prior to assembling of the chair. Make sure all hardware listed is included. To properly assemble the chair, none of the bolts should be fully tightened until all components are attached to the chair.
