Hooker Furniture 1595-75310A-WH Assembly Instruction

Splatback wood seat side chair

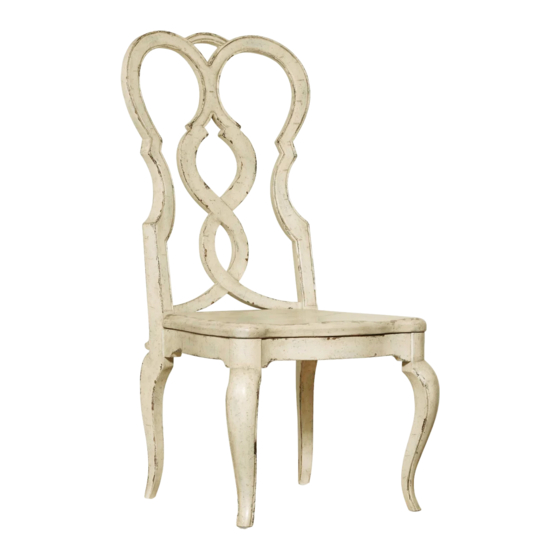

Item#: 1595-75310A-WH Splatback Wood Seat Side Chair

** Please make sure you have all parts indicated below prior to assembly.

Assembly Steps:

There are two K/D chairs in one box. Please follow numbers on one chair and letters on the other during

assembly.

1. Place chair back (G) on a clean surface.

2. Tighten seat frame (H) to the chair back (G) by using bolt (C), lock washer (B) and flat washer (A)

at the center location (see diagram 1). Then, tighten seat frame (H) to chair back (G) by using bolts

(E), lock washers (B) and flat washers (A) at corner blocks. (See diagram 2)

3. Install front legs (F) onto seat frame (H) using bolts (C), lock washers (B) and flat washers (A).

Tighten all bolts(C) by hand. (See diagram 1).

4. After all bolts are attached and hand tightened, turn the chair upright.

5. Level the chair following "chair leveling instruction" as below.

6. Make sure the chair is level and then tighten all bolts completely by using allen wrench (D).

ASSEMBLY INSTRUCTION

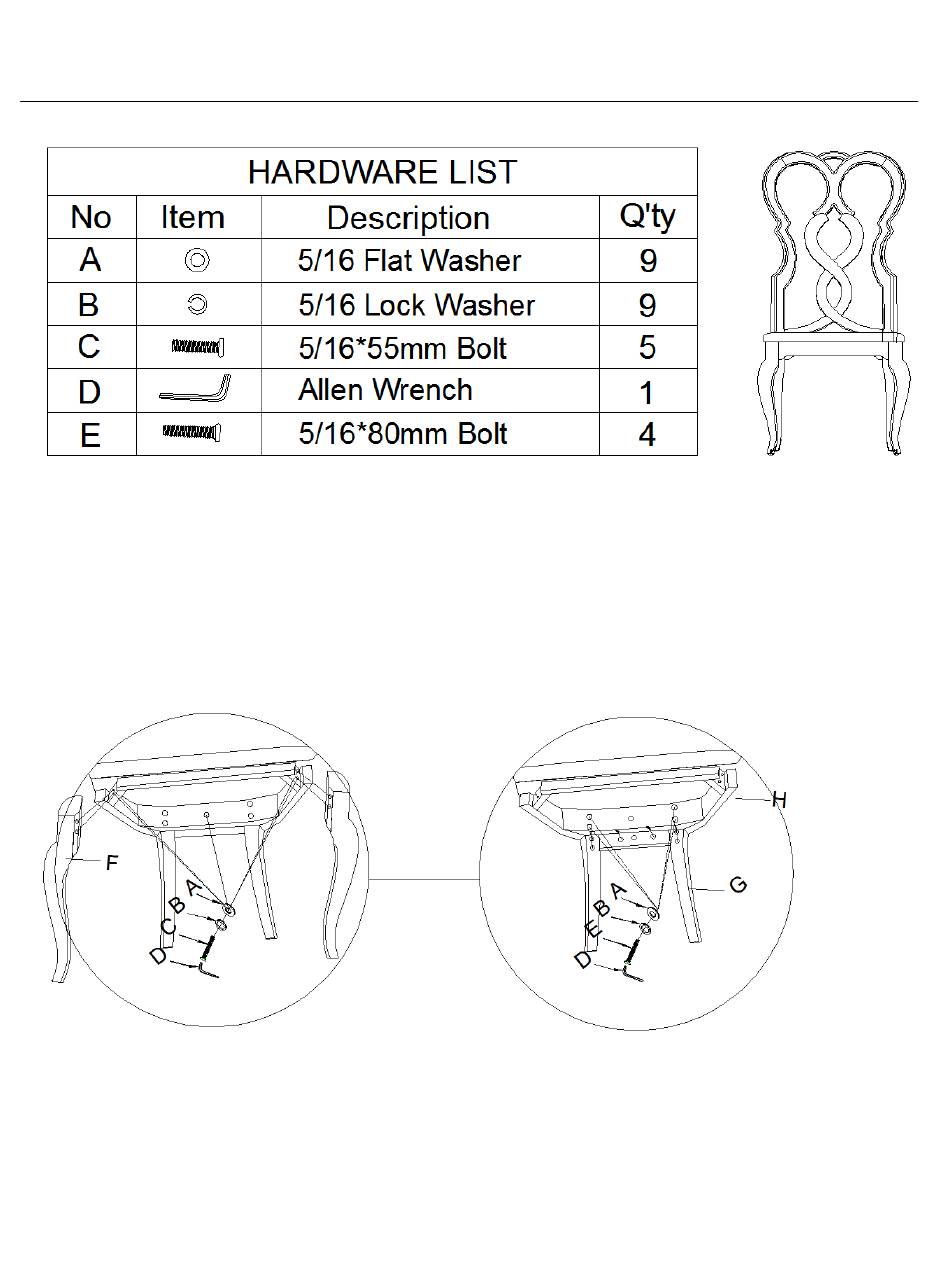

DIAGRAM 1

1/2

DIAGRAM 2
