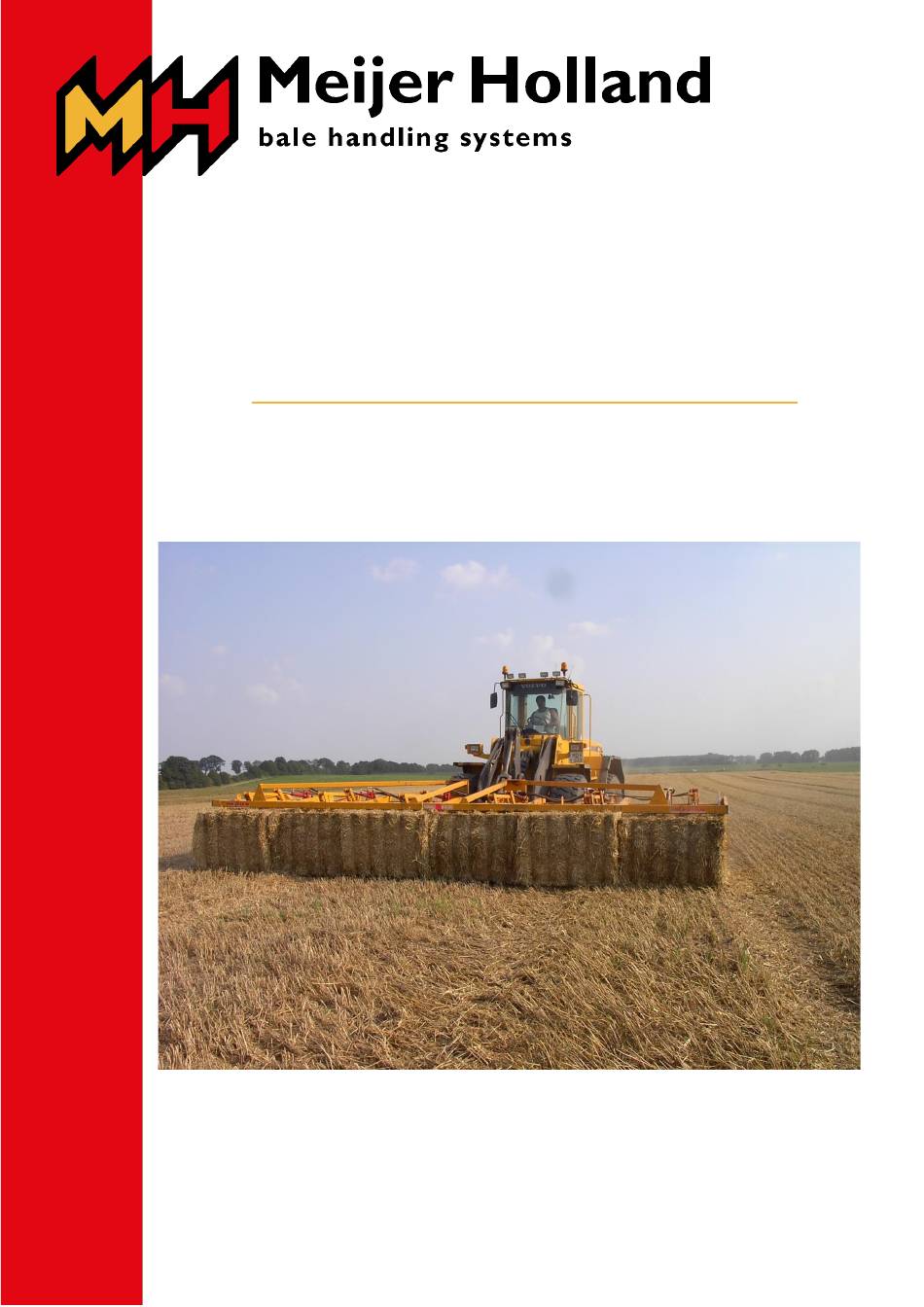

- Page 1 Rambo 6K, 6KD, 7K Manual Bale grab Meijer Holland bale handling systems Duinkerkenstraat 11 NL-9723 BN Groningen The Netherlands T +31 (0)50 3126448 info@meijerholland.com www.meijerholland.com...
-
Page 3: Table Of Contents
5. Installation, starting up, adjustment ..................10 6. Operation and use ......................11 7. Maintenance ........................12 8. Problems and solutions ....................13 9. Environment and disposal ....................14 10. Assembly drawings......................15 CE-Declaration of conformity ....................17 Bale grab Rambo 6K, 6KD and 7K – EN... -
Page 4: Introduction
1. Introduction These Meijer Holland bale grabs of the ‘Rambo’ type have a folding frame and are designed to be attached to a wheel loader in order to grab and transport straw or hay bales over a short distance. The bale grab is equipped with a hydraulic circuit that is to be connected to the hydraulic system of the wheel loader. -
Page 5: Technical Specifications
▪ The non-observance of the rules and instructions stated in this manual is to be considered as serious negligence which leads to the extinguishment of any liability on the part of Meijer Holland concerning the resulting consequences. In this case, the risk lies exclusively with the user. -
Page 6: Safety Precautions
Build the stack of straw and hay bales in a stable way so that it cannot fall over. The driver must be aware of the rules that apply to the lifting and hoisting of heavy loads. Bale grab Rambo 6K, 6KD and 7K – EN... -
Page 7: The Functioning Of The Bale Grab
▪ the other clamp arms do have a hydraulic device ▪ The bales can be grabbed separately as well as simultaneously. movement clamping hooks (except Rambo 6KD) Bale grab Rambo 6K, 6KD and 7K – EN... - Page 8 Folding and unfolding the bale grab takes places with hydraulically powered cylinders. (see images below). Rambo 6K folded Rambo 6K unfolded Bale grab Rambo 6K, 6KD and 7K – EN...
- Page 9 Rambo 6KD folded Rambo 6KD unfolded Bale grab Rambo 6K, 6KD and 7K – EN...
-
Page 10: Installation, Starting Up, Adjustment
Check if the bale grab is undamaged and in good condition on delivery. Please contact Meijer Holland if you notice any damages. Use the bale grab only if it is found to be in good order and after this manual has been read. -
Page 11: Operation And Use
7. The wheel loader can now be driven away from the bales in reverse. 8. The bale grab is ready to grab and move another series of bales. use Rambo 6K and 7K Bale grab Rambo 6K, 6KD and 7K – EN... -
Page 12: Maintenance
Put grease on the grease nipples. At extensive use: after every eight working hours add a bit of grease (0,86 grams per grease nipple). Bale grab Rambo 6K, 6KD and 7K – EN... -
Page 13: Problems And Solutions
Malfunction in the hydraulic system of Consult the manual of the wheel the wheel loader. loader. The hooks or the axes on which they Look for the blockade and are attached are blocked. remove it. Bale grab Rambo 6K, 6KD and 7K – EN... -
Page 14: Environment And Disposal
▪ Drain the hydraulic system and let the fluid be disposed by an authorised company. ▪ The rest of the bale grab is made of coated steel and can be disposed of as scrap. Bale grab Rambo 6K, 6KD and 7K – EN... -
Page 15: Assembly Drawings
10. Assembly drawings top view Rambo 6K isometric view Rambo 6K rear view Rambo 6K Bale grab Rambo 6K, 6KD and 7K – EN... - Page 16 Rambo 6KD rear view Rambo 6KD Bale grab Rambo 6K, 6KD and 7K – EN...
-
Page 17: Ce-Declaration Of Conformity
3. the machine is designed and constructed according to European standards, including: ▪ NEN-EN-ISO 13854:2019 ▪ EN-ISO 4413:2010 ▪ EN-ISO 12100:2010 The electrics and the control section are the responsibility of the customer. Groningen, 10 July 2023 J.F. Lommerts, director Bale grab Rambo 6K, 6KD and 7K – EN...
