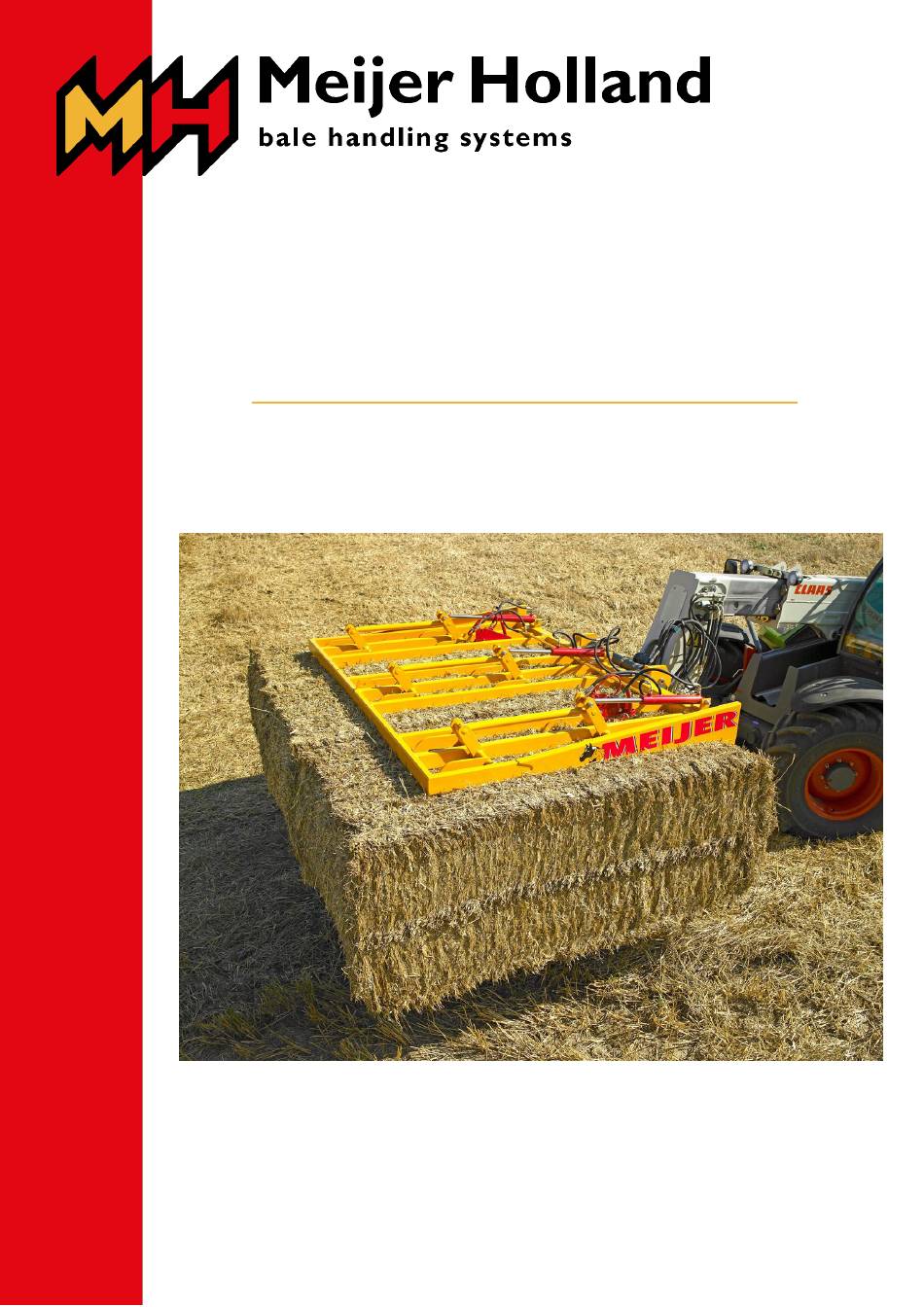

- Page 1 Rambo 3 Manual Bale grab Meijer Holland bale handling systems Duinkerkenstraat 11 NL-9723 BN Groningen The Netherlands T +31 (0) 50 3 12 6 448 F +31 (0) 50 3 138 01 8 in fo @me i jer ho ll an d. com...
-
Page 3: Table Of Contents
4. The functioning of the bale grab ..................7 5. Installation, starting up, adjustment ................... 8 6. Operation and use ......................9 7. Maintenance ........................10 8. Problems and solutions ....................11 9. Environment and disposal ....................12 10. Assembly drawings......................13 CE-Declaration of conformity ....................15 Bale grab Rambo 3 - EN... -
Page 4: Introduction
1. Introduction The bale grab Rambo 3 has a fixed frame and is designed to be attached to a telescopic handler, front loader, wheel loader or forklift (hereinafter referred to as ‘vehicle’) in order to grab and transport straw or hay bales over a short distance. The bale grab is equipped with a hydraulic circuit that is to be connected to the hydraulic system of the vehicle. -
Page 5: Technical Specifications
Meijer Holland concerning the resulting consequences. In this case, the risk lies exclusively with the user. Meijer Holland is constantly busy with the improvement of its products. Therefore it also reserves the right to make any changes that are considered necessary. -
Page 6: Safety Precautions
Build the stack of straw and hay bales in a stable way so that it cannot fall over. The driver must be aware of the rules that apply to the lifting and hoisting of heavy loads Bale grab Rambo 3 - EN... -
Page 7: The Functioning Of The Bale Grab
The clamping of the bales takes place with the help of hooks that are powered by hydraulic cylinders. This movement can be seen in the figures below. The Rambo 3 is equipped with three clamp arms that can grab one bale respectively. ... -
Page 8: Installation, Starting Up, Adjustment
Check if the bale grab is undamaged and in good condition on delivery. Please contact Meijer Holland if you notice any damages. Use the bale grab only if it is found to be in good order and after this manual has been read. -
Page 9: Operation And Use
Lift the bale grab up. 7. The vehicle can now be driven away from the bales in reverse. 8. The bale grab is ready to grab and move another series of bales. Use of the Rambo 3 Bale grab Rambo 3 - EN... -
Page 10: Maintenance
Clean the bale grab of caked dirt and dust. When using a high pressure washer, avoid the electrical parts. Put grease on the grease nipples. At extensive use: after every 8 working hours add a bit of grease (0,86 grams per grease nipple). Bale grab Rambo 3 - EN... -
Page 11: Problems And Solutions
Malfunction in the hydraulic system of Consult the manual of the vehicle. the vehicle. The hooks or the axes on which they Look for the blockade and are attached are blocked. remove it. Bale grab Rambo 3 - EN... -
Page 12: Environment And Disposal
Drain the hydraulic system and let the fluid be disposed by an authorised company. The rest of the bale grab is made of coated steel and can be disposed of as scrap. Bale grab Rambo 3 - EN... -
Page 13: Assembly Drawings
10. Assembly drawings Front view Rambo 3 Top view Rambo 3 Isometric view Rambo 3 Bale grab Rambo 3 - EN... - Page 14 Rambo 3 rear view Bale grab Rambo 3 - EN...
-
Page 15: Ce-Declaration Of Conformity
3. The machine is designed and constructed according to European standards, including: EN 349:1993+A1:2008 EN-ISO 4413:2010 EN-ISO 12100:2010 The electrics and the control section are the responsibility of the customer. Groningen, 17 August 2016 J.F. Lommerts, director Bale grab Rambo 3 - EN...
