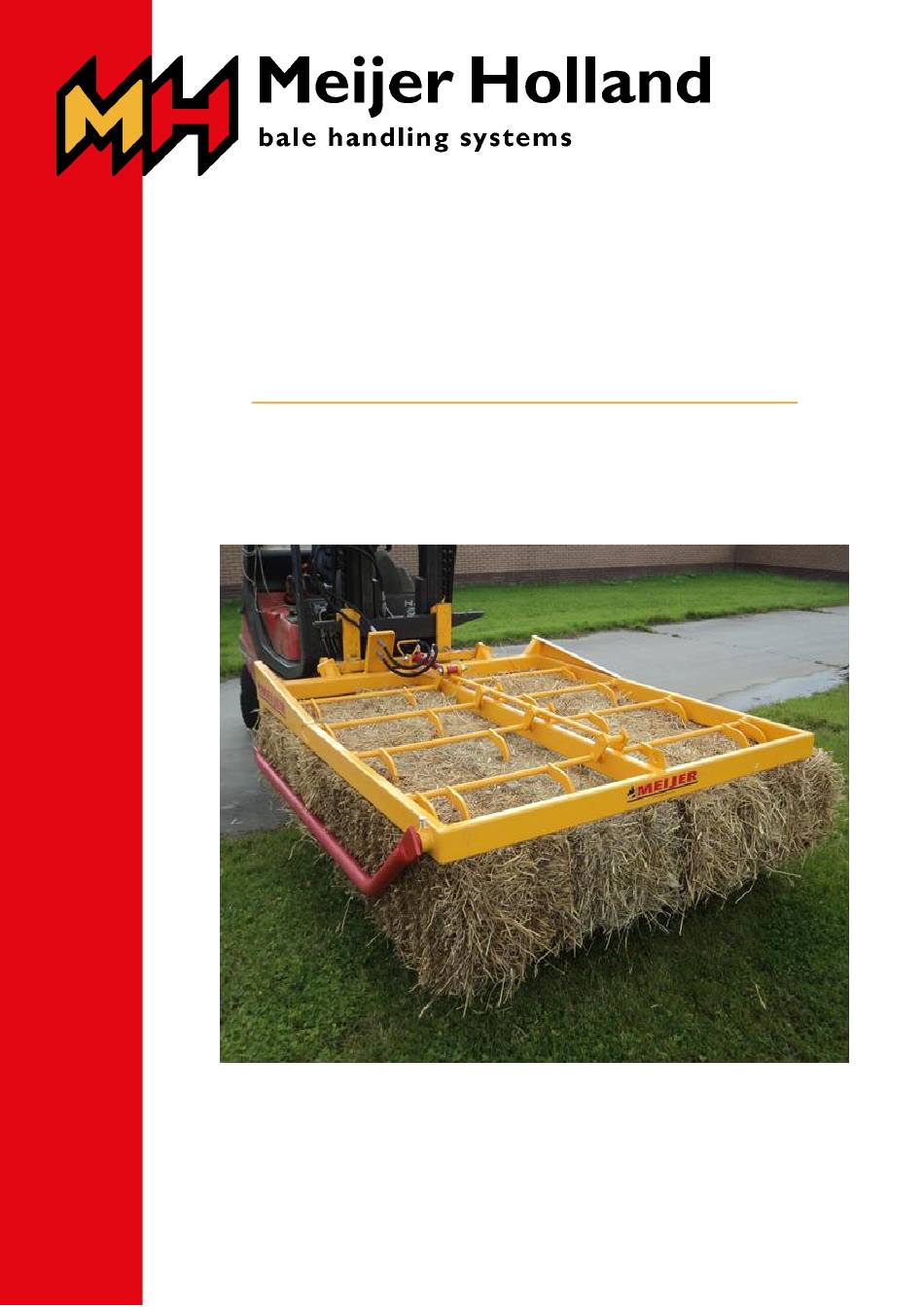

- Page 1 Meijer KM 8 Manual Bale grab Meijer Holland bale handling systems Duinkerkenstraat 11 NL-9723 BN Groningen The Netherlands T + 3 1 ( 0) 5 0 3 1 2 6 4 4 8 F + 3 1 ( 0 )5 0 3 1 3 8 0 18 i n fo @ m e i j e r h o l l a n d .
-
Page 3: Table Of Contents
5. Installation, starting up, adjustment ................... 8 6. Operation and use ......................9 7. Maintenance ........................10 8. Problems and solutions ....................11 9. Environment and disposal ....................12 10. Assembly drawings Meijer KM8 ..................13 CE-Declaration of conformity ....................14 bale grab Meijer KM 8 – EN... -
Page 4: Introduction
1. Introduction The bale grab Meijer KM 8 is designed to be attached to a telescopic handler, front loader, wheel loader or forklift (hereinafter referred to as ‘vehicle’) in order to grab and transport straw or hay bales over a short distance. The bale grab is equipped with a hydraulic circuit that is to be connected to the hydraulic system of the vehicle. -
Page 5: Technical Specifications
Meijer Holland concerning the resulting consequences. In this case, the risk lies exclusively with the user. Meijer Holland is constantly busy with the improvement of its products. Therefore it also reserves the right to make any changes that are considered necessary. -
Page 6: Safety
Build the stack of straw and hay bales in a stable way so that it cannot fall over. The driver must be aware of the rules that apply to the lifting and hoisting of heavy loads. bale grab Meijer KM 8 – EN... -
Page 7: The Functioning Of The Bale Grab
The clamping of the bales takes place with the help of hooks that are mounted on rotatable axes which are powered by a hydraulic cylinder. This movement can be seen in the figure below. Movement hooks bale grab Meijer KM 8 – EN... -
Page 8: Installation, Starting Up, Adjustment
Check if the bale grab is undamaged and in good condition on delivery. Please contact Meijer Holland if you notice any damages. Use the collector only if it is found to be in good order and after this manual has been read. -
Page 9: Operation And Use
5. The vehicle can now be driven away from the bales in reverse. 6. The bale grab is ready to grab and move another series of bales. Use Meijer KM 8 bale grab Meijer KM 8 – EN... -
Page 10: Maintenance
Clean the collector of caked dirt and dust. When using a high pressure washer, avoid the electrical parts. Fill the grease nipples on the moving parts. At extensive use: after every 8 working hours add a bit of grease (0,86 grams per grease nipple). bale grab Meijer KM 8 – EN... -
Page 11: Problems And Solutions
Malfunction in the hydraulic system of the Consult the manual of the vehicle. vehicle. The hooks or the axes on which they are Look for the blockade and attached are blocked. remove it. bale grab Meijer KM 8 – EN... -
Page 12: Environment And Disposal
Drain the hydraulic system and let the fluid be disposed by an authorised company. The rest of the bale grab is made of coated steel and can be disposed of as scrap. bale grab Meijer KM 8 – EN... -
Page 13: Assembly Drawings Meijer Km8
10. Assembly drawings Meijer KM8 Front view Top view Isometric view bale grab Meijer KM 8 – EN... -
Page 14: Ce-Declaration Of Conformity
3. The machine is designed and constructed according to European standards, including: EN 349:1993+A1:2008 EN-ISO 4413:2010 EN-ISO 12100:2010 The electrics and the control section are the responsibility of the customer. Groningen, 1 July 2016 J.F. Lommerts, director bale grab Meijer KM 8 – EN...
