Summary of Contents for Meijer Holland Jumbo CKM1

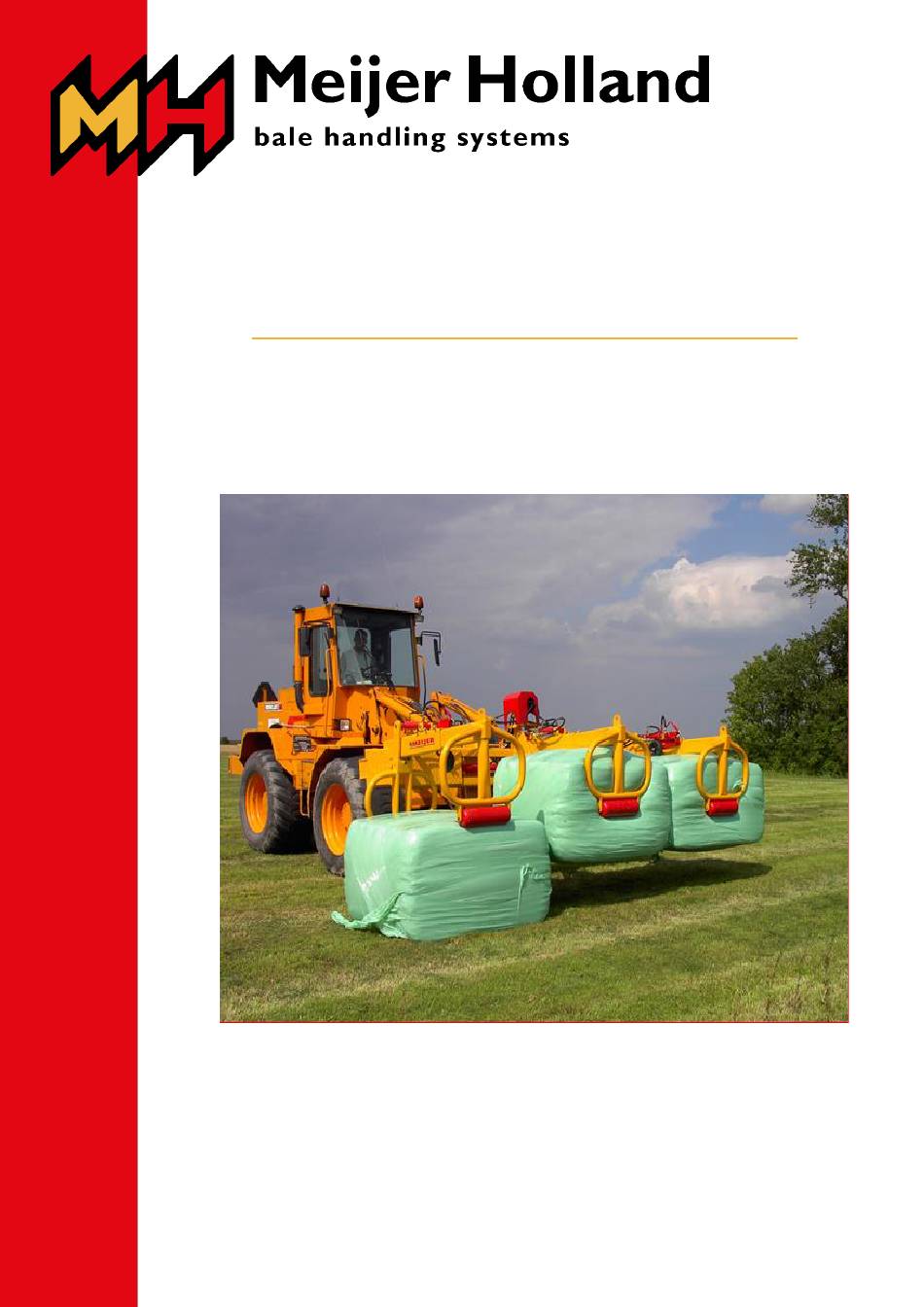

- Page 1 Jumbo CKM1‒CKM2‒CKM3 Manual Bale grab Meijer Holland bale handling systems Duinkerkenstraat 11 NL-9723 BN Groningen The Netherlands T + 3 1 ( 0) 5 0 3 1 26 4 4 8 F + 3 1 ( 0 )5 0 3 1 3 8 0 18 i n fo @ m e i j e r h o l l a n d .
-
Page 3: Table Of Contents
5. Installation, starting up, adjustment ................... 8 6. Operation and use ......................9 7. Maintenance ........................10 8. Problems and solutions ....................11 9. Environment and disposal ....................12 10. Assembly drawings......................13 CE-Declaration of conformity ....................16 Bale grab Jumbo CKM1 ‒ CKM2 ‒ CKM3 – EN... -
Page 4: Introduction
1. Introduction The bale grabs Jumbo CKM’s of Meijer Holland are designed to be attached to a telescopic handler, front loader, wheel loader or forklift (hereinafter referred to as ‘vehicle’) in order to grab and transport wrapped bales over a short distance). The hydraulic hoses of the bale grab are to be attached to the hydraulic system of the vehicle. -
Page 5: Technical Specifications
The non-observance of the rules and instructions stated in this manual is to be considered as serious negligence which leads to the extinguishment of any liability on the part of Meijer Holland concerning the resulting consequences. In this case, the risk lies exclusively with the user. -
Page 6: Safety Precautions
Build the stack of straw and hay bales in a stable way so that it cannot fall over. The driver must be aware of the rules that apply to the lifting and hoisting of heavy loads. Bale grab Jumbo CKM1 ‒ CKM2 ‒ CKM3 – EN... -
Page 7: The Functioning Of The Bale Grab
The Jumbo CKM3 offers the possibility to adjust the distance between the clamp arms. Movement clamp arms Jumbo CKM1,2 en 3 Jumbo CKM3 – small width (left) and large width (right) between clamp arms Bale grab Jumbo CKM1 ‒ CKM2 ‒ CKM3 – EN... -
Page 8: Installation, Starting Up, Adjustment
Check if the bale grab is undamaged and in good condition on delivery. Please contact Meijer Holland if you notice any damages. Use the grab only if it is found to be in good order and after this manual has been read. -
Page 9: Operation And Use
9. Drive the vehicle away from the bales in reverse. 10. The bale grab is ready to grab and move another series of bales. Use Jumbo CKM1, 2 and 3 Bale grab Jumbo CKM1 ‒ CKM2 ‒ CKM3 – EN... -
Page 10: Maintenance
8 working hours add a bit of grease (0,86 grams per grease nipple). Check the clamp arms for damages in order to prevent damages of the wrapped bales. Bale grab Jumbo CKM1 ‒ CKM2 ‒ CKM3 – EN... -
Page 11: Problems And Solutions
Malfunction in the hydraulic system of Consult the manual of the vehicle. the vehicle. The clamp arm(s) or cylinder(s) is/are Look for the blockade and remove blocked. Bale grab Jumbo CKM1 ‒ CKM2 ‒ CKM3 – EN... -
Page 12: Environment And Disposal
Drain the hydraulic system and let the fluid be disposed by an authorised company. The rest of the bale grab is made of coated steel and can be disposed of as crap. Bale grab Jumbo CKM1 ‒ CKM2 ‒ CKM3 – EN... -
Page 13: Assembly Drawings
10. Assembly drawings Jumbo CKM1 Front view Side view Isometric view Top view Bale grab Jumbo CKM1 ‒ CKM2 ‒ CKM3 – EN... - Page 14 Jumbo CKM2 Front view Side view Isometric view Top view Bale grab Jumbo CKM1 ‒ CKM2 ‒ CKM3 – EN...
- Page 15 Jumbo CKM3 Front view Side view Side view extended Top view Isometric view Bale grab Jumbo CKM1 ‒ CKM2 ‒ CKM3 – EN...
-
Page 16: Ce-Declaration Of Conformity
3. the machine is designed and constructed according to European standards, including: EN 349:1993+A1:2008 EN-ISO 4413:2010 EN-ISO 12100:2010 The electrics and the control section are the responsibility of the customer. Groningen, 3 August 2016 J.F. Lommerts, director Bale grab Jumbo CKM1 ‒ CKM2 ‒ CKM3 – EN...
