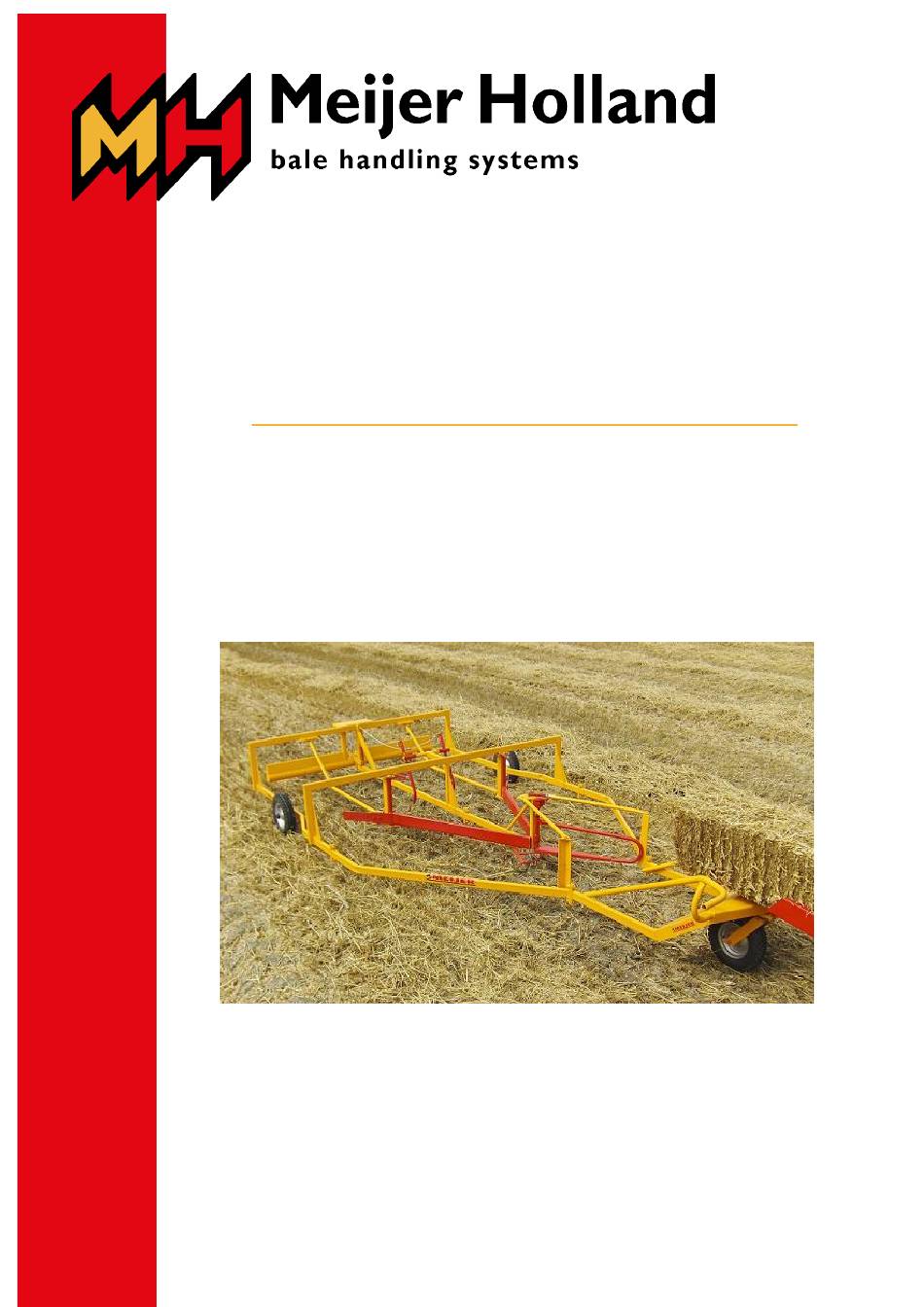

- Page 1 Limo Mecha 8 Manual Bale collector Meijer Holland bale handling systems Duinkerkenstraat 11 NL-9723 BN Groningen The Netherlands T +31 (0)50 3126448 info@meijerholland.com www.meijerholland.com...
-
Page 3: Table Of Contents
4. The functioning of the bale collector .................. 7 5. Installation, starting up, adjustment ................... 8 6. Operation and use ......................9 7. Maintenance ........................10 8. Problems and solutions ....................11 9. Environment and disposal ....................12 CE-Declaration of conformity ....................13 bale collector Limo Mecha 8 – EN... -
Page 4: Introduction
1. Introduction The Meijer Holland bale collector of the type ‘Limo Mecha bale’ is designed to be attached behind a baler in order to collect 8 straw or hay bales. The Limo Mecha works completely mechanically and is suitable for clay and sandy soil. This manual provides an overview of all the aspects that have to be kept in mind, before, during and after the use of the machine. -
Page 5: Technical Specifications
▪ The non-observance of the rules and instructions stated in this manual is to be considered as serious negligence which leads to the extinguishment of any liability on the part of Meijer Holland concerning the resulting consequences. In this case, the risk lies exclusively with the user. -
Page 6: Safety Precautions
Follow the instructions for use (chapter 6). The working area of the machine is five meters: ▪ no persons are allowed within that range! Mind the rules for maximum load (chapter 2). Follow the instructions for maintenance (chapter 7). bale collector Limo Mecha 8 – EN... -
Page 7: The Functioning Of The Bale Collector
▪ Attach the Limo Mecha behind the press by first attaching the tapered platform to the press. ▪ The bales slide into the collector via the platform. ▪ The bales are deposited in two rows of four. movement of the bales seen from above bale collector Limo Mecha 8 – EN... -
Page 8: Installation, Starting Up, Adjustment
Check if the bale collector is undamaged and in good condition on delivery. Please contact Meijer Holland if you notice any damages. Only use the bale collector if it is found to be in good order and after this manual has been read. -
Page 9: Operation And Use
5. When the eight bales have been collected, the fence at the back swings up. 6. The bales are deposited in two rows of four. 7. The bale collector will now collect the next series of bales. use Limo Mecha bale collector Limo Mecha 8 – EN... -
Page 10: Maintenance
Check the bale collector for damages and wear. Replace damaged or worn parts. At least once a Clean the collector of caked dirt and dust. week Grease the hinge points. In intensive use, after every eight working hours. bale collector Limo Mecha 8 – EN... -
Page 11: Problems And Solutions
The bale collector has relatively few moveable parts and damages are unlikely to occur when used properly. Repair or replace damaged and worn parts immediately. Spare parts are available at Meijer Holland. ▪ Turn off the tractor engine while you are fixing a problem. bale collector Limo Mecha 8 – EN... -
Page 12: Environment And Disposal
9. Environment and disposal Disposal of the bale collector ▪ The bale collector is made of coated steel and can be disposed of as scrap. bale collector Limo Mecha 8 – EN... -
Page 13: Ce-Declaration Of Conformity
2. the machine complies with the following applicable directives: Machinery directive 2006/42/EG 3. the machine is designed and constructed according to European standards, including: ▪ NEN-EN-ISO 13854:2019 ▪ EN-ISO 4413:2010 ▪ EN-ISO 12100:2010 Groningen, 10 July 2023 J.F. Lommerts, director bale collector Limo Mecha 8 – EN...
