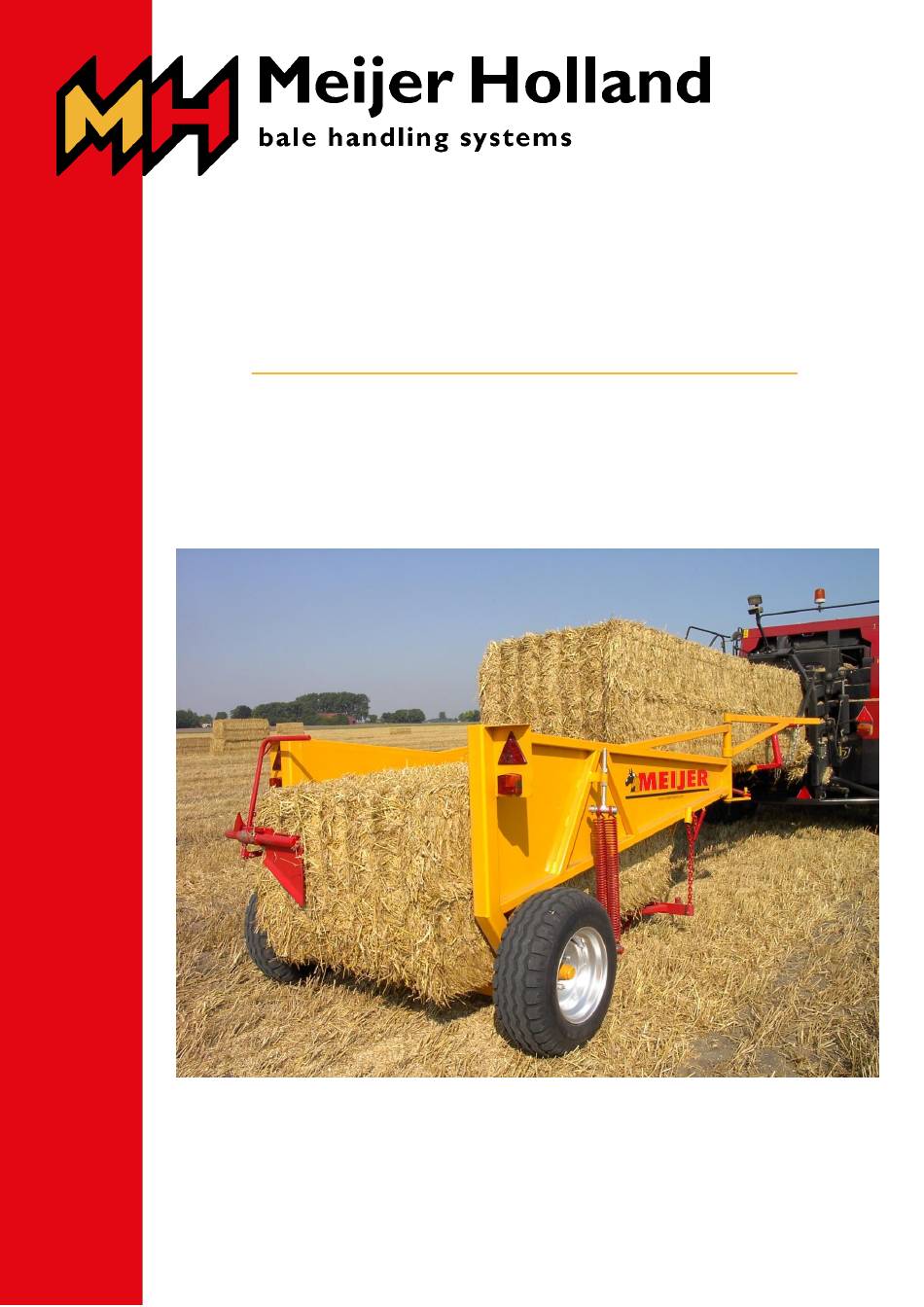

  • Page 1 Flintstone Manual Bale collector Meijer Holland bale handling systems Duinkerkenstraat 11 NL-9723 BN Groningen The Netherlands T + 3 1 ( 0) 5 0 3 1 2 6 4 4 8 F + 3 1 ( 0 )5 0 3 1 3 8 0 18 i n fo @ m e i j e r h o l l a n d .

  • Page 3: Table Of Contents

    3. Safety ..........................6 4. The functioning of the Flintstone ..................7 5. Installation and adjustment ....................8 6. Mounting the Flintstone platform to the baler ..............10 7. Maintenance ........................12 8. Problems and solutions ....................13 9. Environment and disposal ....................14 10.

  • Page 4: Introduction

    The Meijer Holland Flintstone bale collector is designed to be attached behind a baler in order to collect two straw or hay bales at a time. The Flintstone is mechanically powered by the force of the big baler. This manual provides an overview of all the aspects that have to be kept in mind, before, during and after the use of the machine.

  • Page 5: Technical Specifications

    900 kg Maximum load 2 bales (lxwxh) 240x120x70-90 cm The Flintstone does not function optimally on slopes and very rough terrain. CE-marking This machine is certified with the CE-marking. This means that the machine meets the requirements of the applicable EC directives on safety and health. These directives are specified in the attached declaration of conformity.

  • Page 6: Safety

    3. Safety To ensure the life span and the safety of the Flintstone, please mind the following precautions. Read the manual before use. Only experts should (dis)mount the collector. Only experts should operate the collector. Use the Flintstone only for collecting bales.

  • Page 7: The Functioning Of The Flintstone

    4. The functioning of the Flintstone The collector can only be used when the supplied platform is correctly attached to the baler.  The first bale glides over the platform and tilts into the collector, pushing the spring-loaded roller conveyor down.

  • Page 8: Installation And Adjustment

    5. Installation and adjustment Check the Flintstone after receipt. Please contact Meijer Holland if there are any damages or missing parts. Use the collector only if it is found to be in good order and after this manual has been read.
  • Page 9  Place the bale collector with the tractor on a solid and even ground.  Dismount the junction of the baler at the bale collector and drive the tractor away. Store the collector in a dry and clean environment. manual Flintstone...

  • Page 10: Mounting The Flintstone Platform To The Baler

    6. Mounting the Flintstone platform to the baler Figure 1: after complete assembly 6.1 Parts Illustration Name Item no. Number of pieces Extended platform MHFS02-06 Flintstone Guiding bracket MHFS02-07 1 left platform red set 1 right Mounting strip MHFS02-08 platform set...
  • Page 11 6.2 Mounting in steps Step 1 Step 2 Step 3 Step 4 manual Flintstone...

  • Page 12: Maintenance

    Clean the collector of caked dirt and dust. When using a high pressure washer, avoid the electrical parts. Fill the grease nipples on the moving parts. At extensive use: after 8 working hours add a bit of grease (0,86 grams per grease nipple). manual Flintstone...

  • Page 13: Problems And Solutions

    The bale collector is composed of several moveable parts. Repair or replace the damaged or worn parts immediately. Spare parts are available at Meijer Holland.  Turn off the baler and the vehicle and block turning or moving parts when you are fixing one of the following problems.

  • Page 14: Environment And Disposal

    9. Environment and disposal The bale collector is made of coated steel that can be disposed of as scrap. manual Flintstone...

  • Page 15: Assembly Drawings

    10. Assembly drawings Top view Side view Isometric view manual Flintstone...

  • Page 16: Ce- Declaration Of Conformity

    The Netherlands tel. +31 (0)50-312 64 48 +31 (0)50-313 80 18 declare under our sole responsibility that: 1. we are the manufacturer of: MH Flintstone (model MHFS02) 2. the machine complies with the following applicable directives Machinery directive 2006/42/EG EMC-directive 2004/108/EC...
