The installation of this device must be operated by safety certified professionals，see the user manual for detailed information.

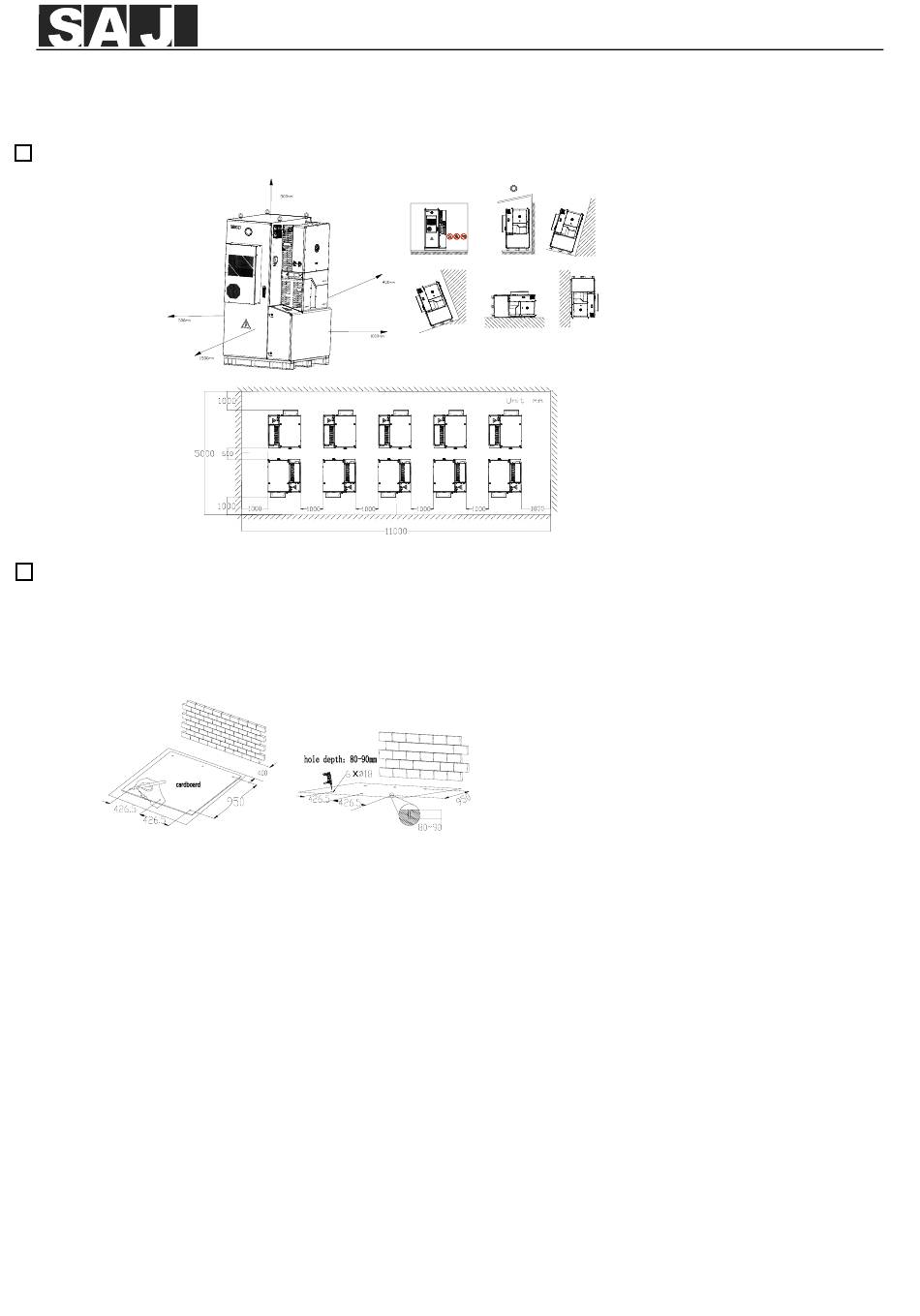

1. Installation Method and Position
≥
≥
2. Installing the Inverter
Ground Mounting 1
1. Place the cardboard flat on the floor, mark the location of the holes with a marker, then remove the cardboard. Drill
the holes by using an electric drill (18mm in diameter, 80-90mm in depth). Disassemble the M12*80 expansion screws
and put the screws sleeves into the holes.
Note: The ground should be flat and no inclination.
2.
Install the cabinet to the designated location
By using a crane:
As shown in the following figure, lift the cabinet, align the holes at the cabinet bottom with the drilled holes, and place it onto the floor.
A force greater than 2t is required to move this device, the height between the sling and the top surface must be greater than or equal
to 1.5 meter.
By using a forklift:
As shown in the following figure, move the cabinet, align the holes at the cabinet bottom with the drilled holes, and place it onto the
floor.
V1.0
CHS2 Inverter Quick Installation Guide
≥
≥
≥
To choose a right forklift, refer to the following requirements:
- Load capacity must be greater than 2 tons.
- The length of the metal forks must be greater than 1.2 meter. Use fork extensions if needed.
- The forks can slide under the cabinet bottom without damaging the cabinet.
To use the forklift, make sure that:
- The forks should be extend out of the cabinet.
- Adjust the distance between the two forks to ensure load stability.
√
×
×
×
×
：
1
© 2024 Sanjing. All rights reserved.
Advertisement
Table of Contents
Related Manuals for SAJ CHS2 Series
Summary of Contents for SAJ CHS2 Series
- Page 1 CHS2 Inverter Quick Installation Guide The installation of this device must be operated by safety certified professionals，see the user manual for detailed information. 1. Installation Method and Position ≥ √ × ≥ ≥ ≥ × × × ≥ ： 2. Installing the Inverter Ground Mounting 1 1.
-
Page 2: Ground Mounting
Install the M12*80 screw bolt at the bottom of the cabinet and secure them by using a wrench. Ground Mounting 2 Same as 2 in ground mounting 1, place the machine stably on the ground. Take out the accessories as shown in the picture, mark the four corners of the cabinet, and then drill holes according to the marked positions with a depth of 80 - 90mm. -
Page 3: Grounding Connection
Find 4 mounting brackets as shown in the picture among the accessories, and install them on the 4 corners of the cabinet respectively. M8*25 M12*80 3. Grounding Connection Note: A 6 mm conductor cross-sectional area of cable is recommended for additional grounding cable. 4. -
Page 4: Connecting The Ac Cable
1. Disassemble the metal plate at the outlet to facilitate wiring operations. 2. Use a knife to cut the end of the cable sleeve at the cable outlet hole. 3. Remove the decorative panel of the inverter. 4. Remove the AC cover. 5. - Page 5 6. PV Side Connection Recommended specifications of DC cable Conductor cross-sectional area of cables（mm²） Conductor material Scope Recommended value Outdoor multi-core copper wire cable, complying with 1000 V DC 4.0 - 6.0 Note: When the inverters are used in parallel, it is necessary to ensure that the PV power of all inverters is consistent as much as possible. Remove the upper cover of the PV cover.
-
Page 6: Communication Connection
Make sure the DC switch is at OFF position. For further safety consideration, it is suggested that a reliable tool (such as a lock with a key) be used to lock the switch and make sure that others cannot unlock it easily. Insert the positive and negative cable connectors into the positive and negative PV ports on the inverter until you hear a “click”... - Page 7 250A CT installation: The arrow direction PV array points to the inv AC breaker Power meter Grid RS485 Meter On-grid load If two meters are used, set the address of the inverter-side meter to 2. Do NOT change the default address 1 of the grid-side meter. The CT arrow direction points to the CHS2 inverter.
- Page 8 To set a three-phase meter, perform the following operations: Power on once once once once once Measure display Shift Shift twice once once twice once thrice Password correct, enter the setting interface Power on the meter and enter the “Measure display” interface, and then press twice to enter the password 701.
- Page 9 DRM Connection DRED provides a DRED signal controlling ports to meet the Australia DERD certification requirements and other regions. Inverter Auxiliary DRED test circuit DRED 1 DRM1/5 2 DRM2/6 3 DRM3/7 1 2 3 4 5 6 4 DRM4/8 DRED/RCR 5 REF GEN 6 COM DRM0 12V Power Output...
- Page 10 DIP switch The DIP switch is a switch that determines whether to select the 120Ω terminal resistor. When the inverters are used in parallel, the two inverters that are physically farthest apart need to select 120Ω terminal resistors, so the SW2 DIP switches 3 and 4 of the two inverters need to be turned to the ON position. Parallel RJ45 Pin Port Definition RS485_PAR1/RS485_PAR2...
- Page 11 Communication Cable Connection Connect the communication cables to the appropriate ports. Secure all parts of the grid and backup connector tightly. Install the crossbeam suspended in the middle of the inverter and the baffle under the inverter back to their original positions. 8.
-
Page 12: Wiring Diagram
9. Install Decorative Panels Reinstall the removed panel onto the machine. 10. Wiring diagram Single machine wiring： L1 L2 L3 N CHS2 Inve er Generator On-grid loads IC Black IB Black IA Black Meter SE T SE C IA White Back-up loads IB White IC White... - Page 13 Back-up Parallel wiring： The example of CAN connection is as follows: CHS2 CHS2 CHS2 CHS2 CHS2 CHS2 CHS2 CHS2 CHS2 CHS2 - 10 PV Panels PV Panels PV Panels Meter Grid Combiner ATS Interface EMS Interface 18(A) 485A3 17(B) 485B3 LDI1 Back-up Combiner...
