This quick installation guide is applicable for inverters CH2-(29.9K-63K)-(T4-T6).
For more information, refer to the inverter user manual.

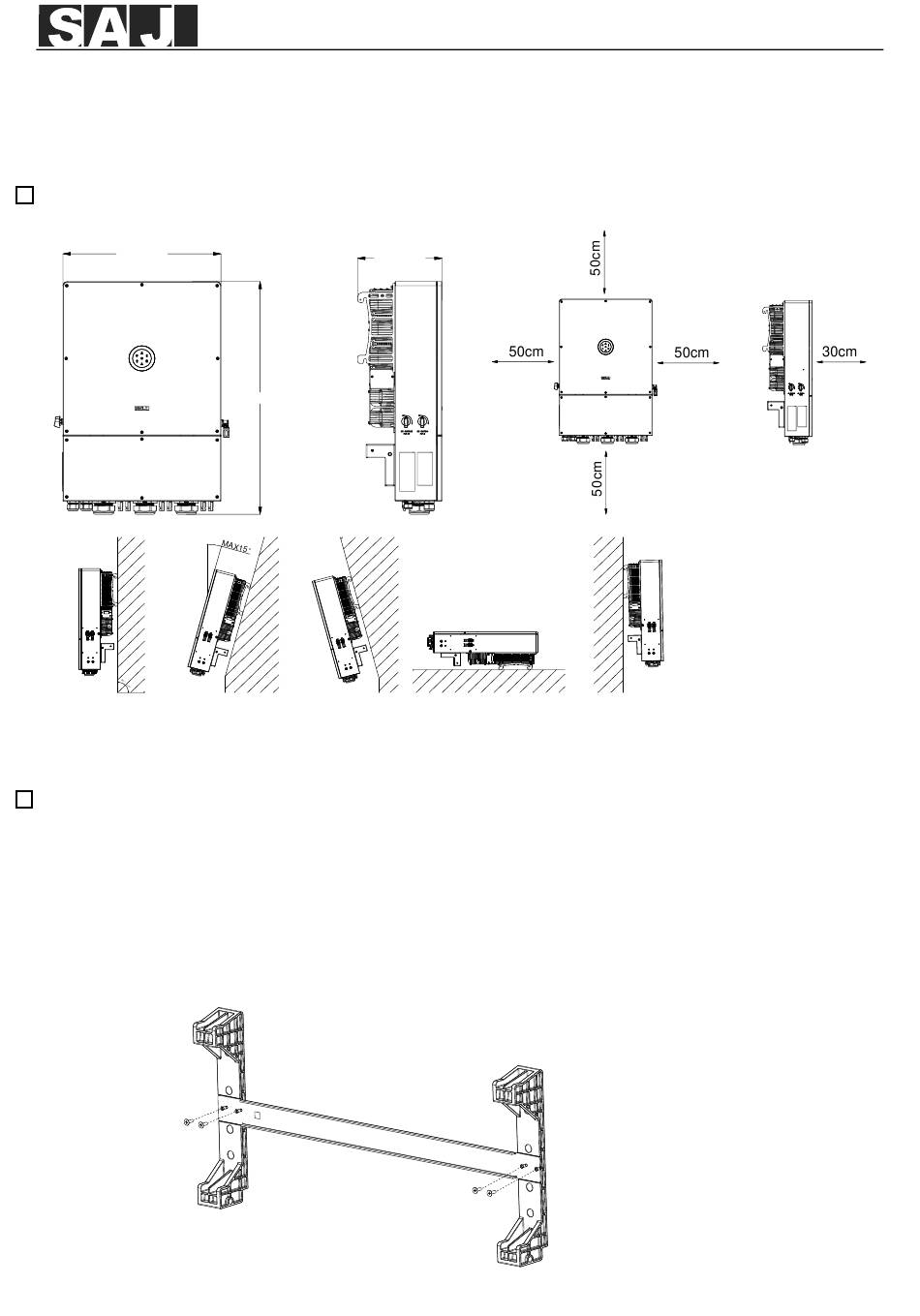

1. Check the installation methods and clearance
630mm
√
√
2. Install the inverter
Select one of the following options to mount the inverter:
⚫
Mount the inverter on the wall.
⚫
Mount the inverter on a frame. With this option, the installer needs to prepare the frame. Four M10*45 screws are
provided in the delivery for securing the mounting bracket to the frame.
To install the inverter on the wall:
Step 1.
Secure the back panel with the two side brackets to assemble the mounting bracket.
M4*10
1 N·m
V0.0
CH2 Inverter Quick Installation Guide
337mm
953mm
× ×
×
1
